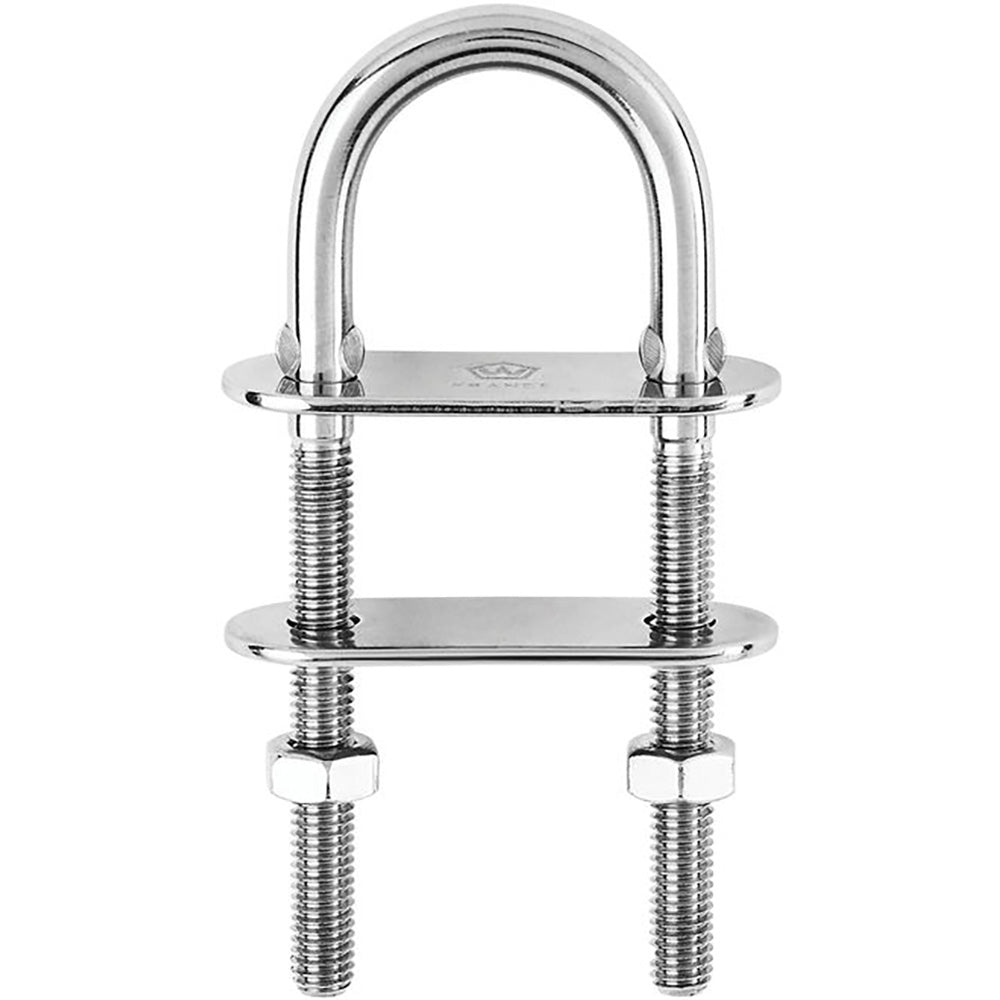

Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64" [6525W]
Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64" [6525W] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length...
Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64" [6525W] is backordered and will ship as soon as it is back in stock.
Description
Description
U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"
Features:
- Entirely drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 36 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 7930 / (kg) 3600
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.489 / (g) 222

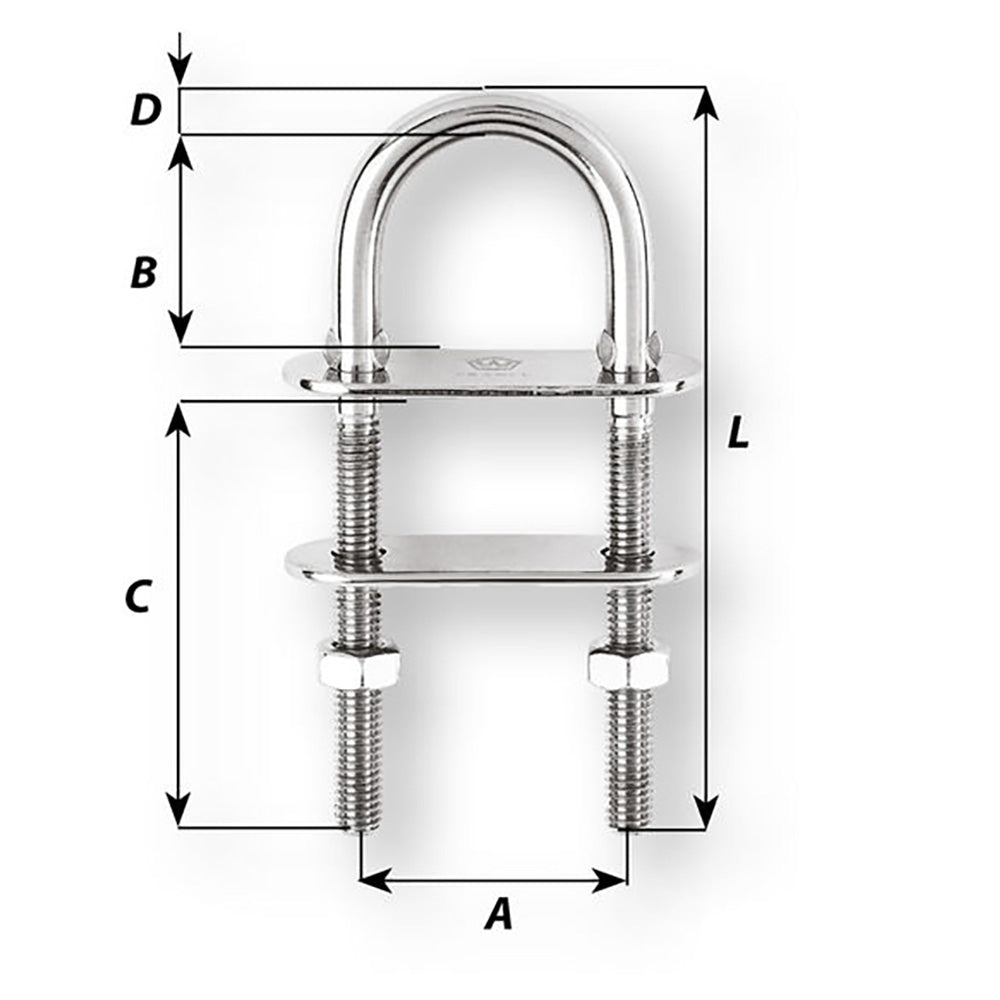

Dimensions:
- A: (inch) 1 37/64" / (mm) 40
- B: (inch) 1 17/64" / (mm) 32
- C: (inch) 2 9/16" / (mm) 65
- D diameter: (inch) 25/64" / (mm) 10
- Length: (inch) 4 21/64" / (mm) 110
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
