Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32" [1495W]

Name: Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32" [1495W]
Brand: Wichard Marine
SKU: IM-93132
Price: 139.14 USD
Availability: InStock

$139.14 $163.69

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

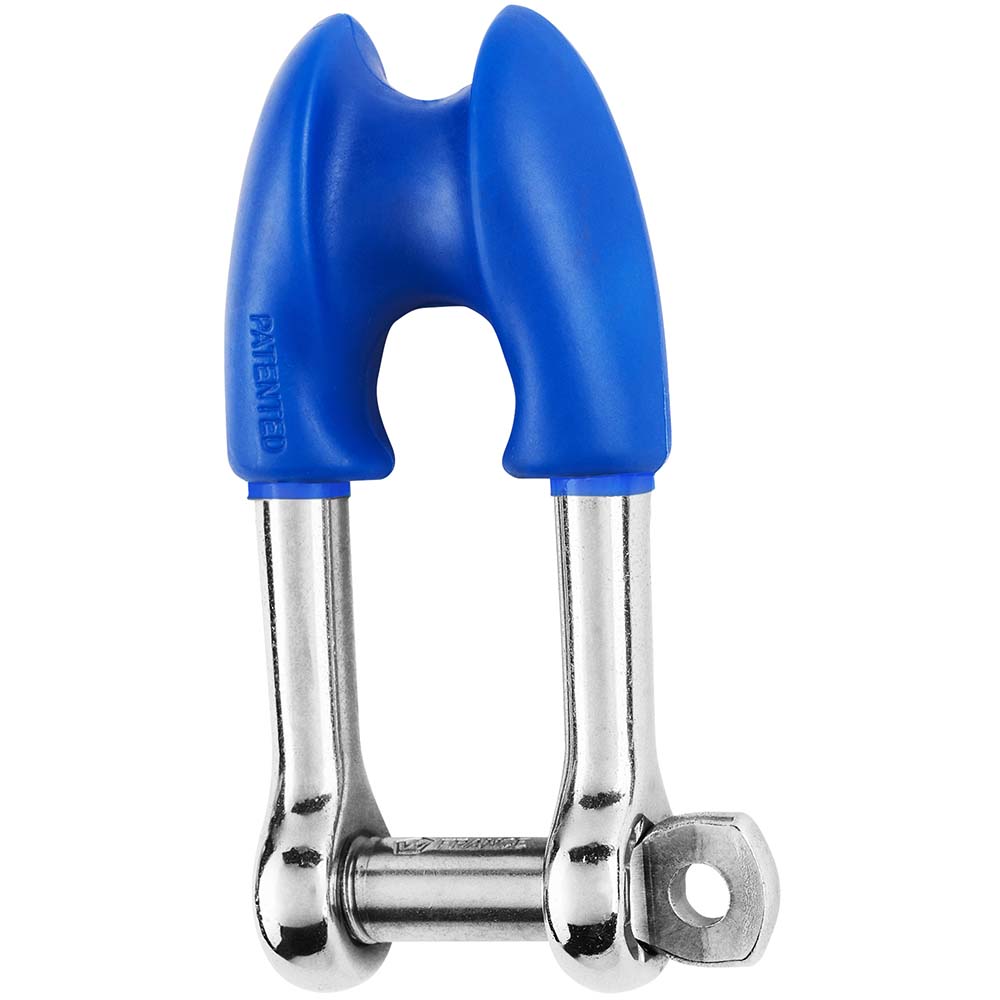

Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

Features:

Thimble shackle with captive pin forged in grade 316L stainless steel
Allows to spliced a rope without adding an additional thimble
With the captive pin, no risk to lose the pin
Outstanding working and breaking loads

Applications:

Mainsheet halyards
Max rope size: 16 mm

Specifications:

Materials 316 stainless steel grade
Working load (lb) 3350
Breaking load (lb) 11020
Weight (lb) 0.322

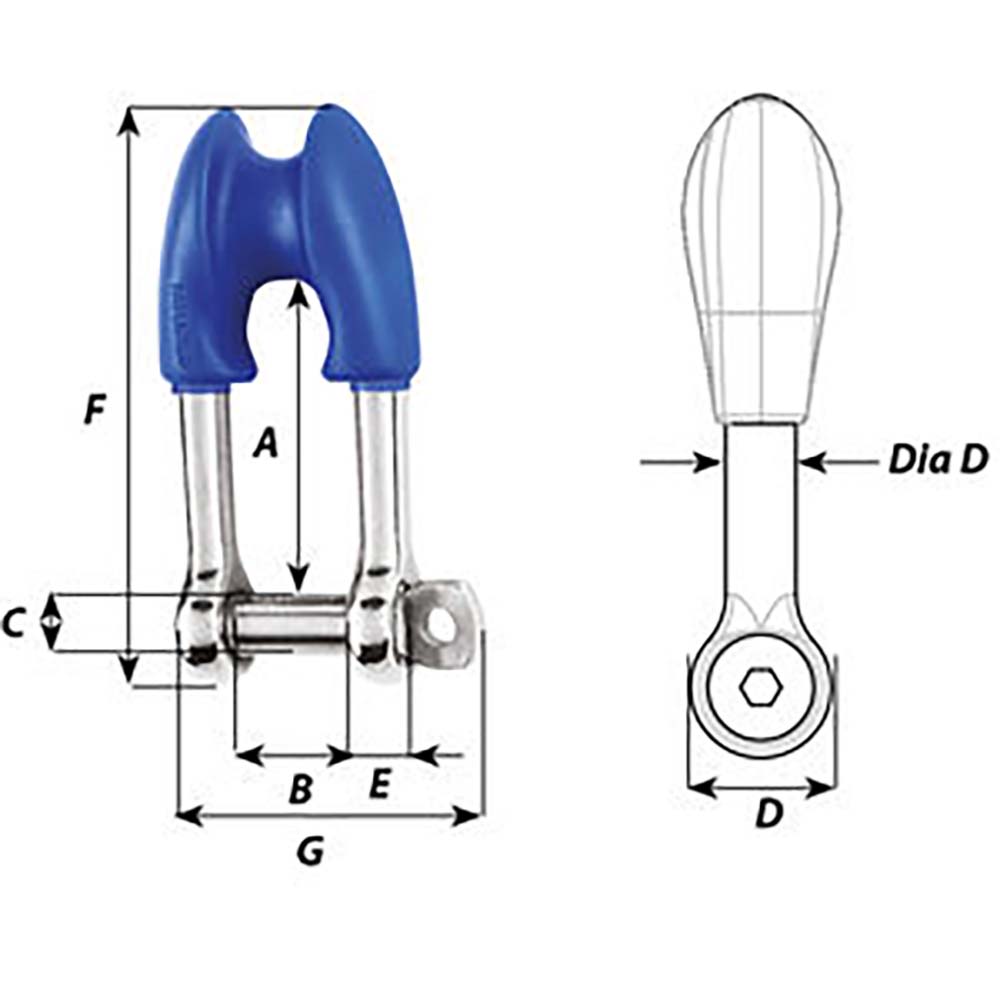

Dimensions (see 2nd image):

A (inch) 2-1/64"
B (inch) 25/32"
C (inch) 25/64"
D (inch) 25/32"
D diameter (inch) 25/64"
E (inch) 23/64"
F (inch) 3-47/64"
G (inch) 2-1/8"
