Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]
Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"...
Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W] is backordered and will ship as soon as it is back in stock.
Description
Description

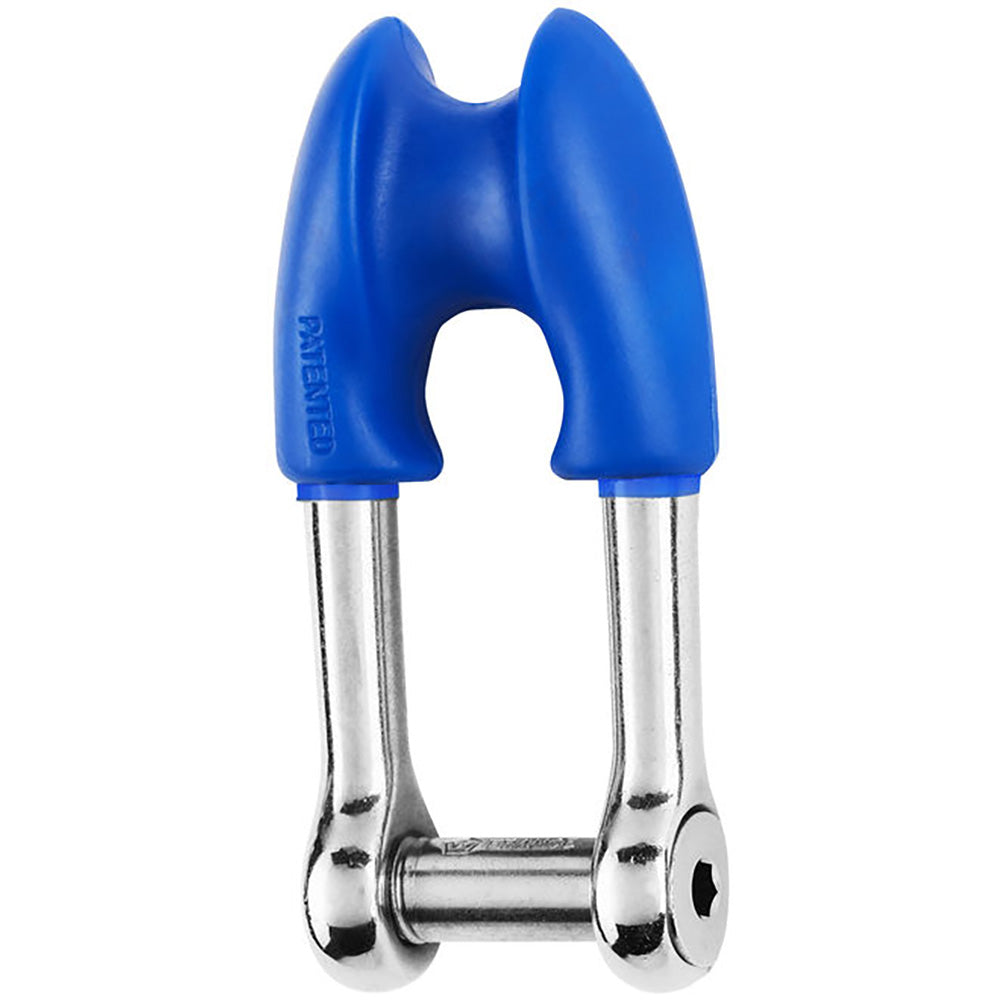

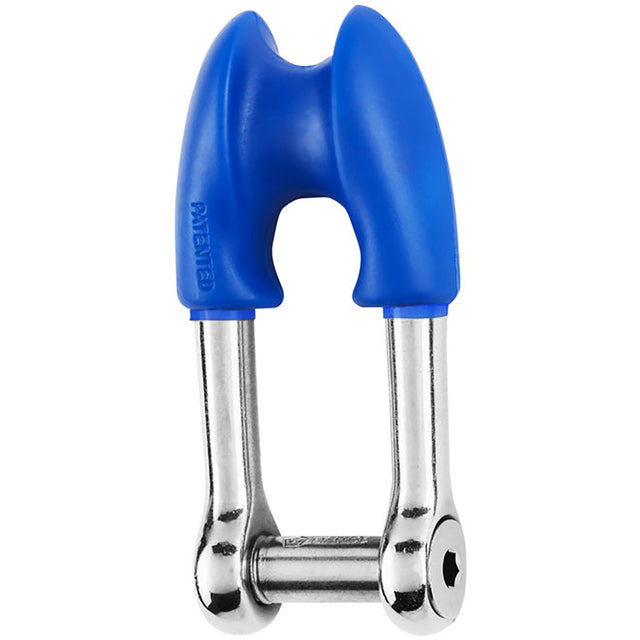

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"
Features:
- Thimble shackle with allen head pin forged in grade 316L stainless steel
- Allows a rope to be spliced without adding and additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications:
- Mainsheet halyards
- Max rope size: 16 mm
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 3350 / (kg) 1520
- Breaking load: (lb) 11020 / (kg) 5000
- Weight: (lb) 0.313 / (g) 142

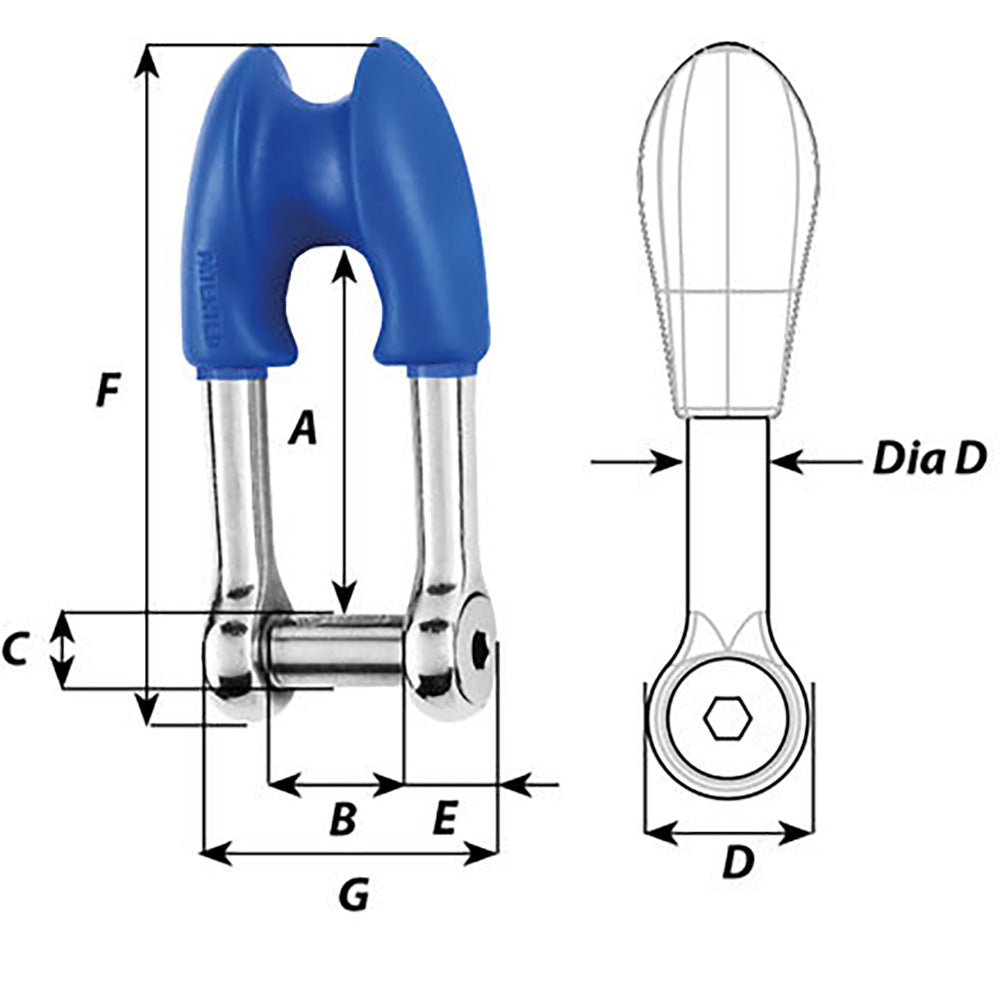

Dimensions:
- A: (inch) 2 1/64" / (mm) 51
- B: (inch) 25/32" / (mm) 20
- C: (inch) 25/64" / (mm) 10
- D: (inch) 25/32" / (mm) 20
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 5/16" / (mm) 8
- F: (inch) 3 25/32" / (mm) 96
- G: (inch) 1 39/64" / (mm) 41
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
