Wichard Self-Locking Bow Shackle - Diameter 12mm - 15/32" [1246W]

Name: Wichard Self-Locking Bow Shackle - Diameter 12mm - 15/32" [1246W]
Brand: Wichard Marine
SKU: IM-93107
Price: 100.41 USD
Availability: InStock

$100.41 $118.13

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

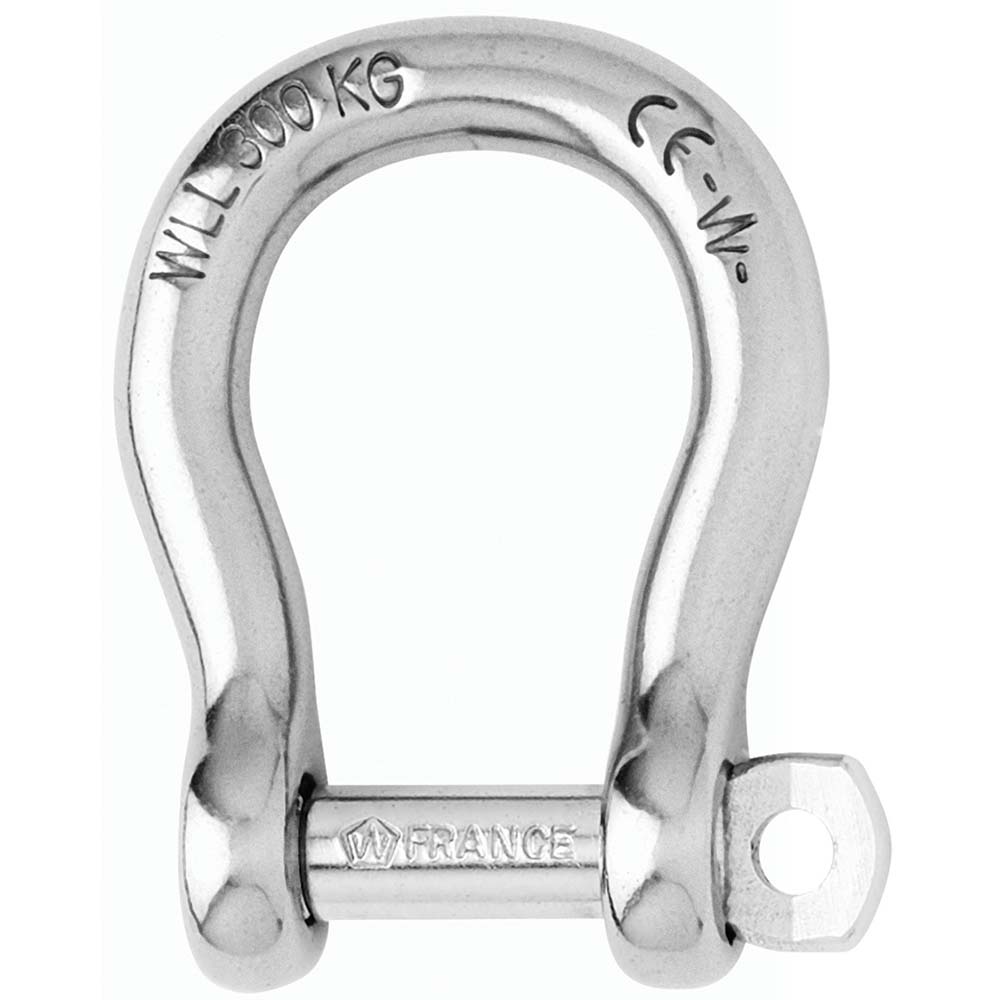

Self-Locking Bow Shackle - Diameter 12mm - 15/32"

Features:

Self-locking bow shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number

Applications:

To be used when ample room is required
Possibility to attach several lines or cables

Specifications:

Materials 316 stainless steel grade
Working load (lb) 4580
WLL (lb) 2640
Breaking load (lb) 13220
Weight (lb) 0.514

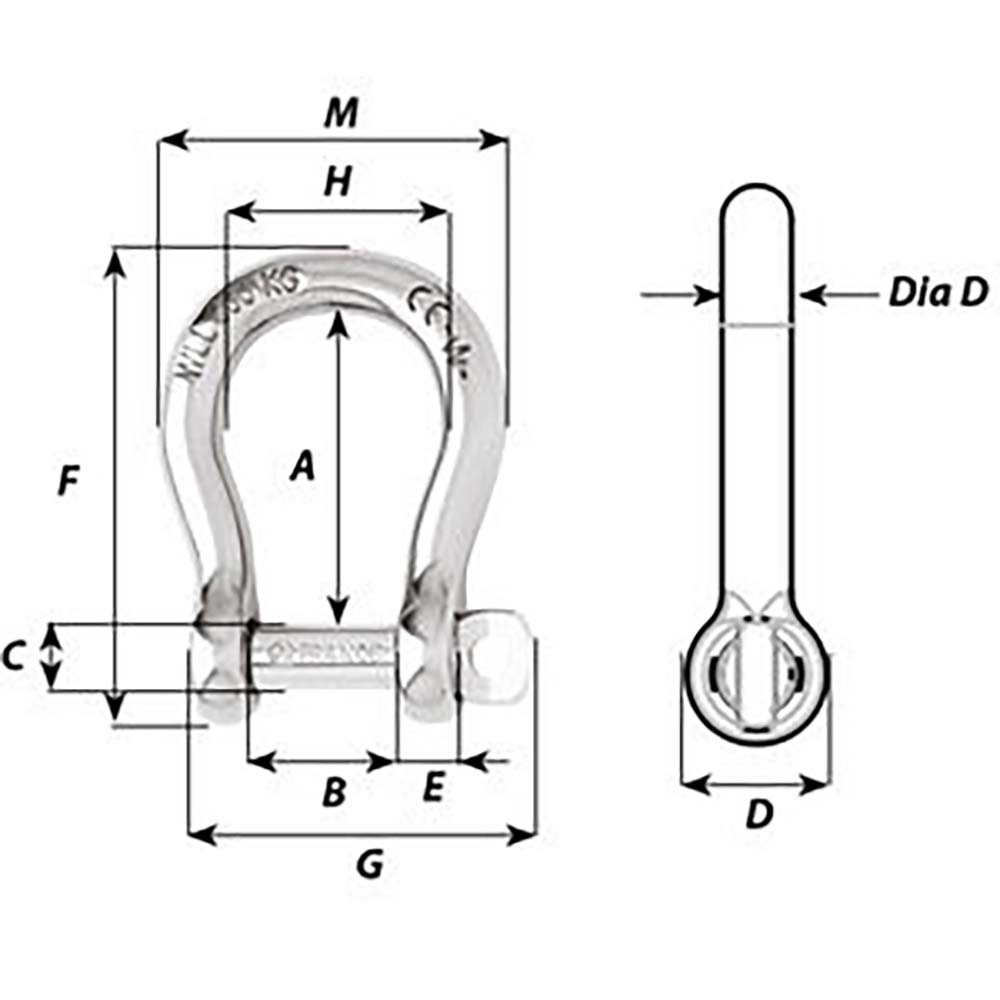

Dimensions (see 2nd image):

A (inch) 2-11/64"
B (inch) 15/16"
C (inch) 15/32"
D (inch) 15/16"
D diameter (inch) 15/32"
E (inch) 25/64"
M (inch) 2-31/64"
