Wichard HR Bow Shackle - 10mm Pin Diameter [11245W]

Name: Wichard HR Bow Shackle - 10mm Pin Diameter [11245W]
Brand: Wichard Marine
SKU: IM-97712
Price: 129.62 USD
Availability: InStock

$129.62 $152.49

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

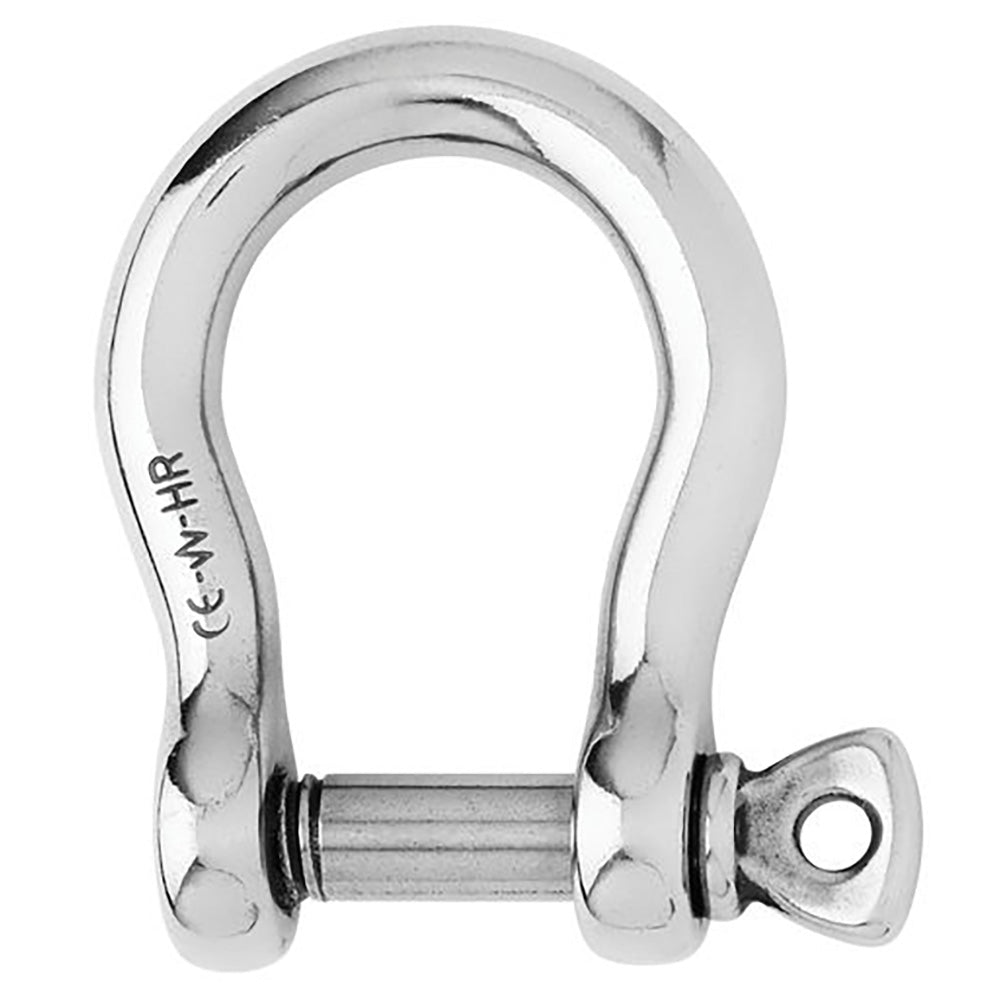

HR Bow Shackle - 10mm Pin Diameter

Features:

Forged bow shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
WLL: only for industrial applications (lifting i.e…)
CE marking

Applications:

Applications requesting high loads
To be used when ample room is required
Possibility to attach several lines or cables
Do not use for mooring applications

Specifications:

Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 5820 / (kg) 2640
WLL: (lb) 2640 / (kg) 1200
Breaking load: (lb) 13220 / (kg) 6000
Weight: (lb) 0.3 / (g) 136

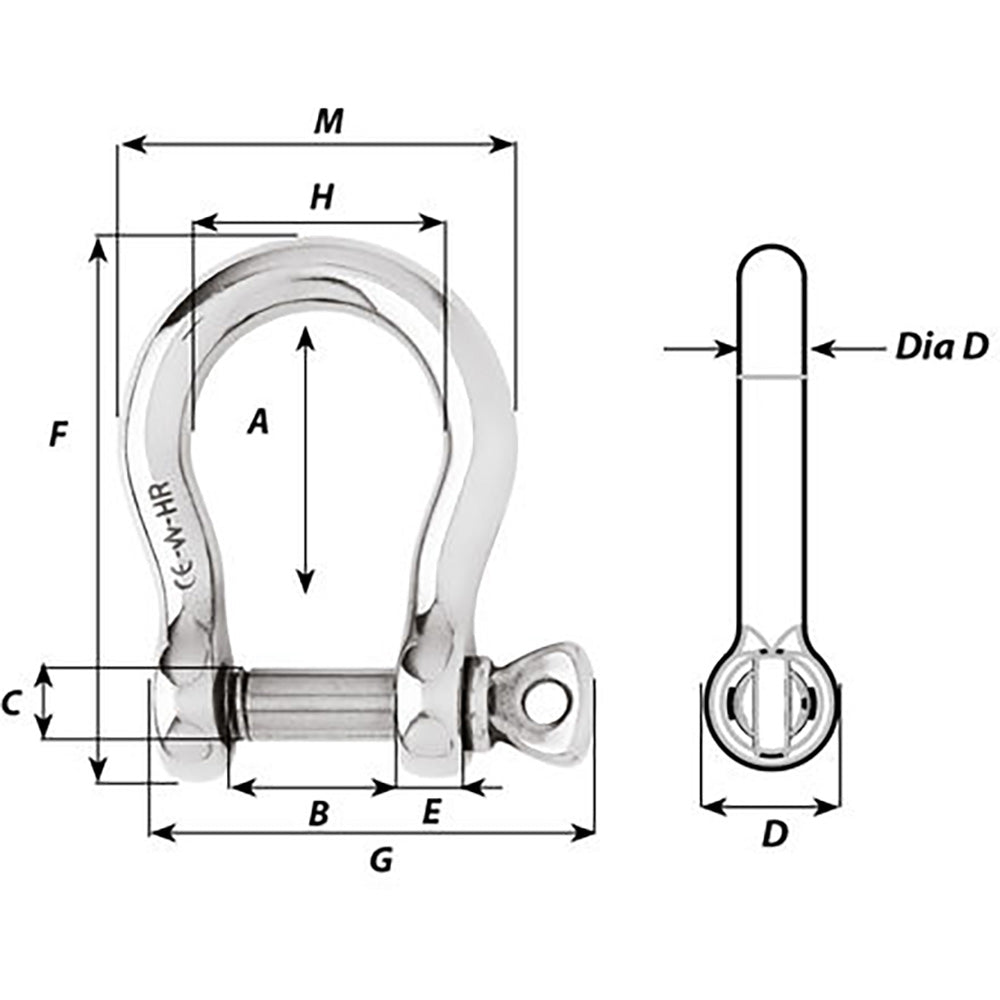

Dimensions:

A: (inch) 1 27/32" / (mm) 47
B: (inch) 55/64" / (mm) 22
C: (inch) 25/64" / (mm) 10
D: (inch) 25/32" / (mm) 20
D diameter: (inch) 15/32" / (mm) 12
E: (inch) 23/64" / (mm) 9
M: (inch) 2 3/64" / (mm) 52

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
