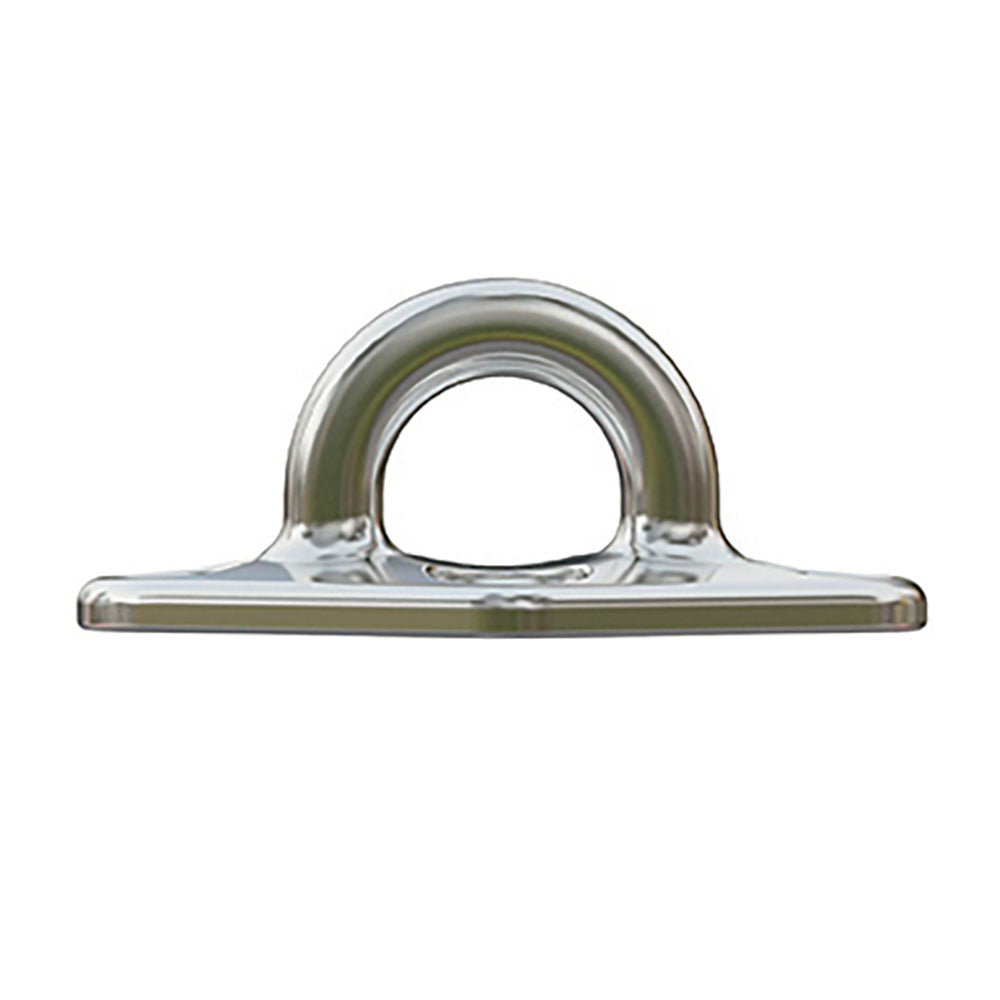

Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw [6645W]
Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw [6645W] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 S...
Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw [6645W] is backordered and will ship as soon as it is back in stock.
Description
Description
Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw
Features:
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For M6 screw
Applications:
- Mast foot blocks
- Reefing blocks
- Various fastenings
Specifications:
- Materials: Duplex stainless steel grade
- Working Load: (lb) 6393.4 / (kg) 2900
- Breaking Load: (lb) 17196 / (kg) 7800
- Weight: (lb) 0.315 / (g) 143
- W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
- W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
- W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
- B.L 1 (90 degrees): (lb) 17196 / (kg) 7800
- B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
- B.L 3 (0 degrees): (lb) 13889 / (kg) 6300

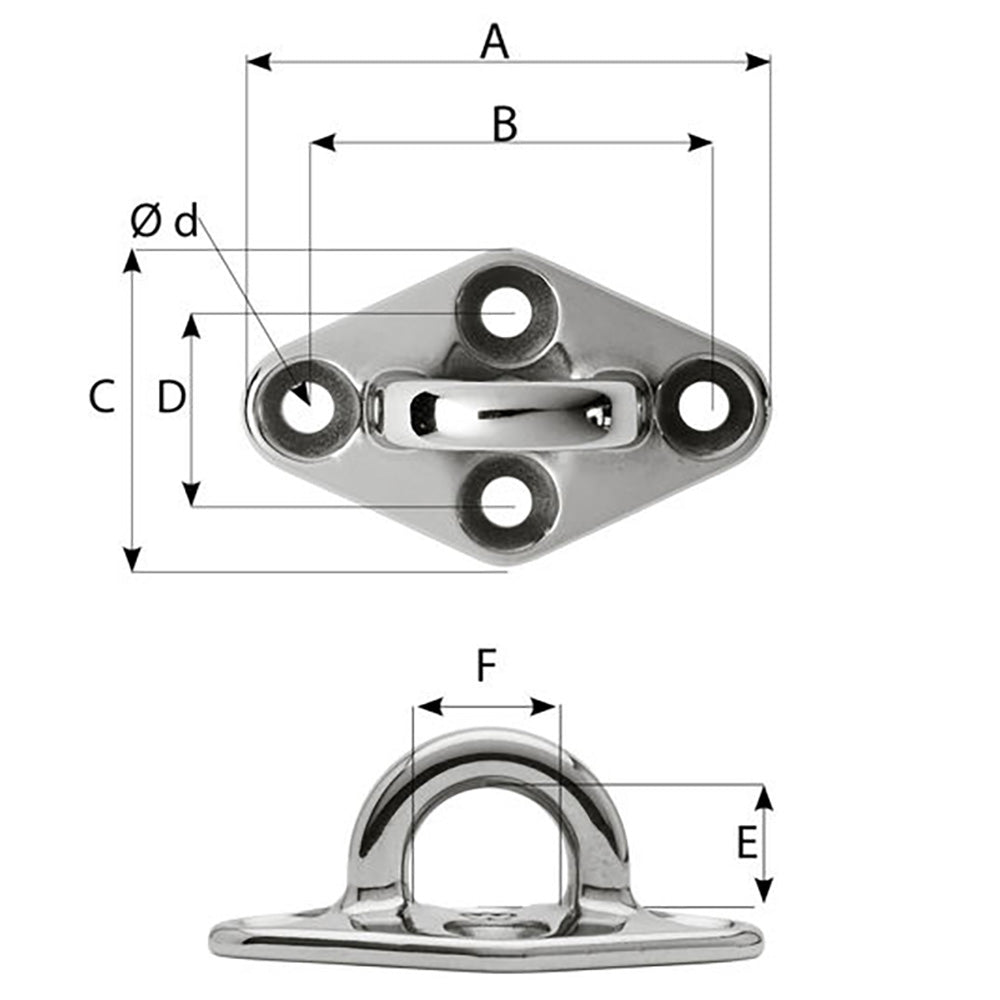

Dimensions:
- A: (inch) 3 7/64" / (mm) 79
- B: (inch) 2 23/64" / (mm) 60
- C: (inch) 1 31/32" / (mm) 50
- D: (inch) 1 17/64" / (mm) 32
- E: (inch) 47/64" / (mm) 18.5
- F: (inch) 55/64" / (mm) 22
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
