Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32" [1415W]

Name: Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32" [1415W]
Brand: Wichard Marine
SKU: IM-93119
Price: 107.53 USD
Availability: InStock

$107.53 $126.51

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

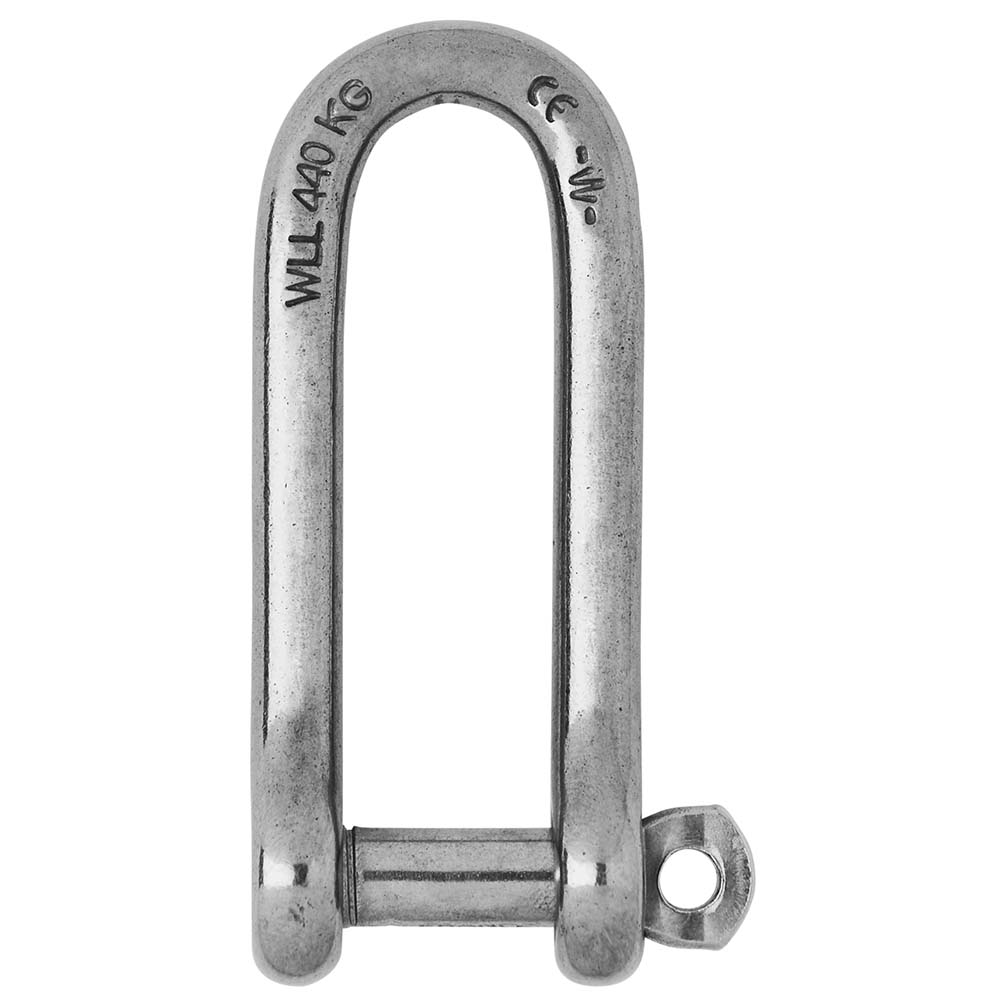

Captive Pin Long D Shackle - Diameter 10mm - 13/32"

Features:

Captive pin long "D" shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads

Applications:

Standard applications of shackle requiring more length
Attachment applications: blocks, head...

Specifications:

Materials 316 stainless steel grade
Working load (lb) 3350
WLL (lb) 2290
Breaking load (lb) 11460
Weight (lb) 0.388

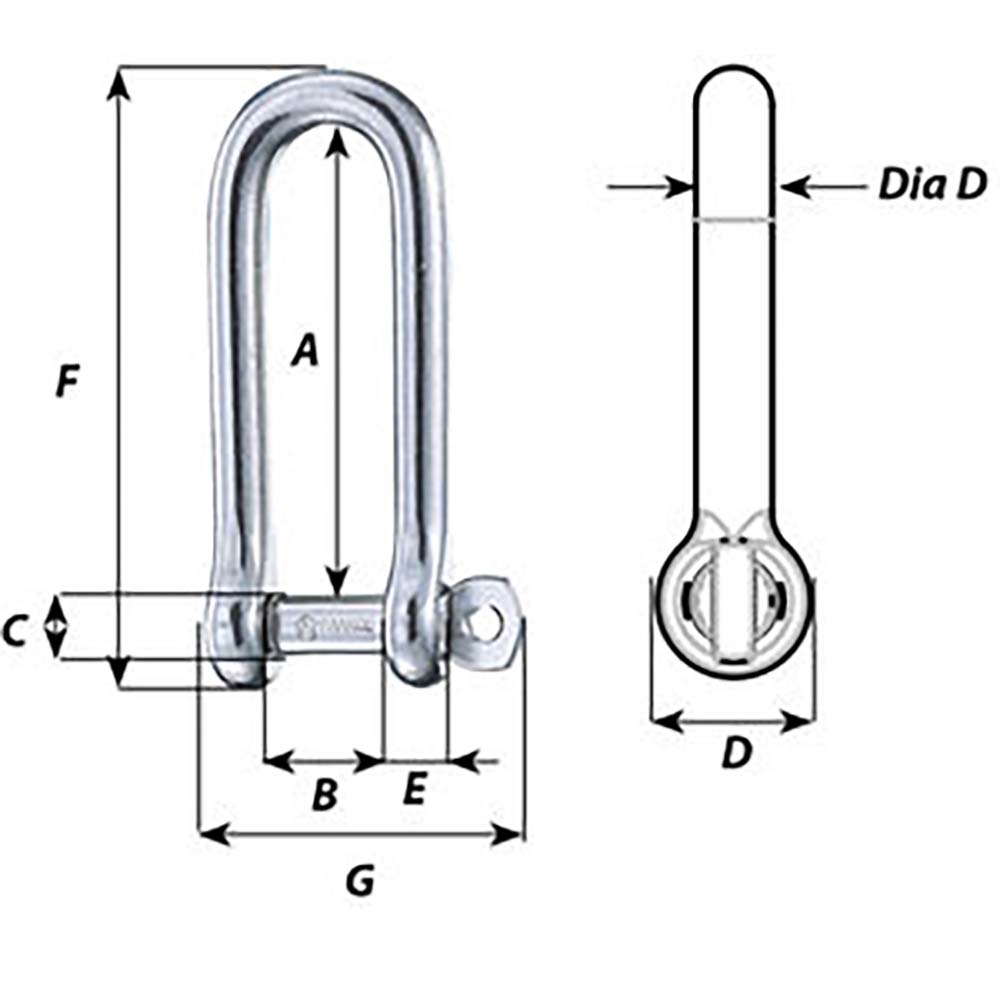

Dimensions (see 2nd image):

A (inch) 3-5/64"
B (inch) 25/32"
C (inch) 7/16"
D (inch) 53/64"
D diameter (inch) 25/64"
E (inch) 25/64"
F (inch) 4-1/16"
G (inch) 2-1/8"
