Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32" [1441W]

Name: Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32" [1441W]
Brand: Wichard Marine
SKU: IM-93126
Price: 25.08 USD
Availability: InStock

$25.08 $29.50

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

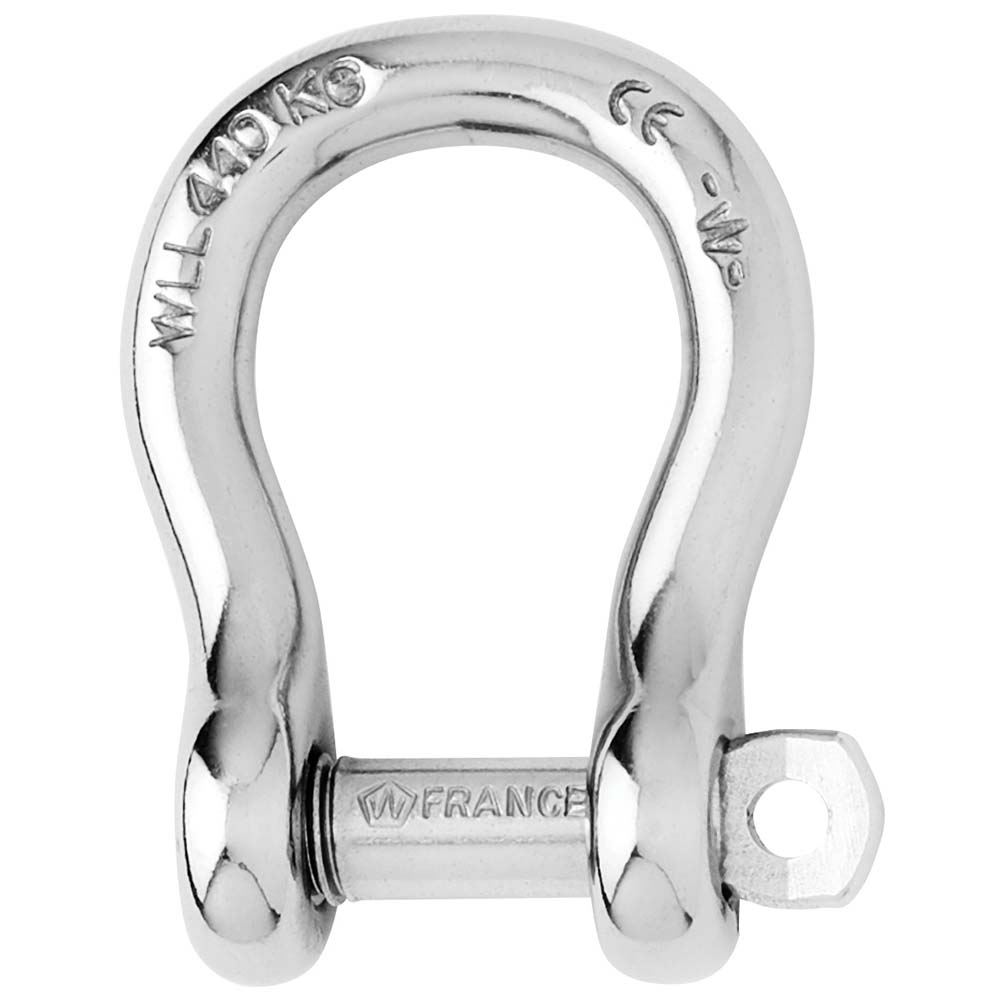

Captive Pin Bow Shackle - Diameter 4mm - 5/32"

Features:

Captive pin bow shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads
Single-handed operation for more safety
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number

Applications:

To be used when ample room is required
Possibility to attach several lines or cables

Specifications:

Materials 316 stainless steel grade
Working load (lb) 700
WLL (lb) 440
Breaking load (lb) 2200
Weight (lb) 0.022

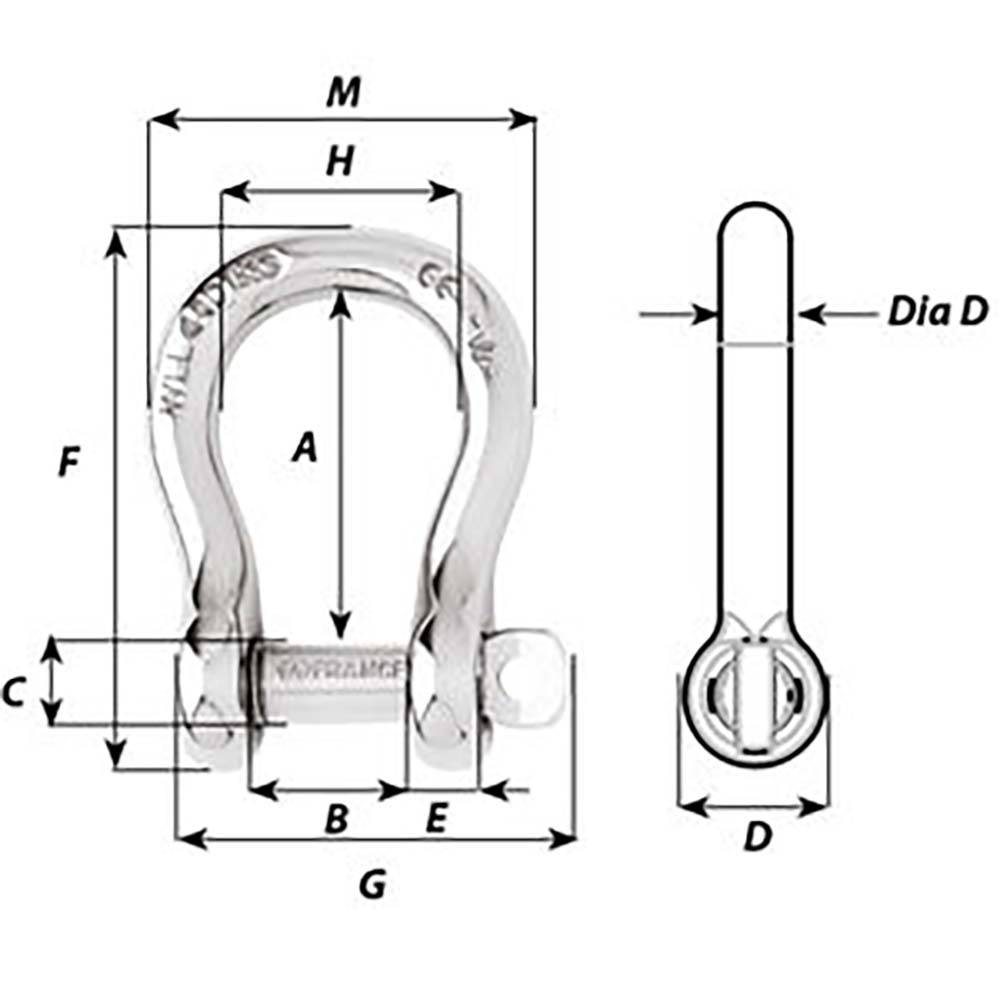

Dimensions (see 2nd image):

A (inch) 45/64"
B (inch) 5/16"
C (inch) 13/64"
D (inch) 23/64"
D diameter (inch) 5/32"
E (inch) 5/32"
M (inch) 53/64"
