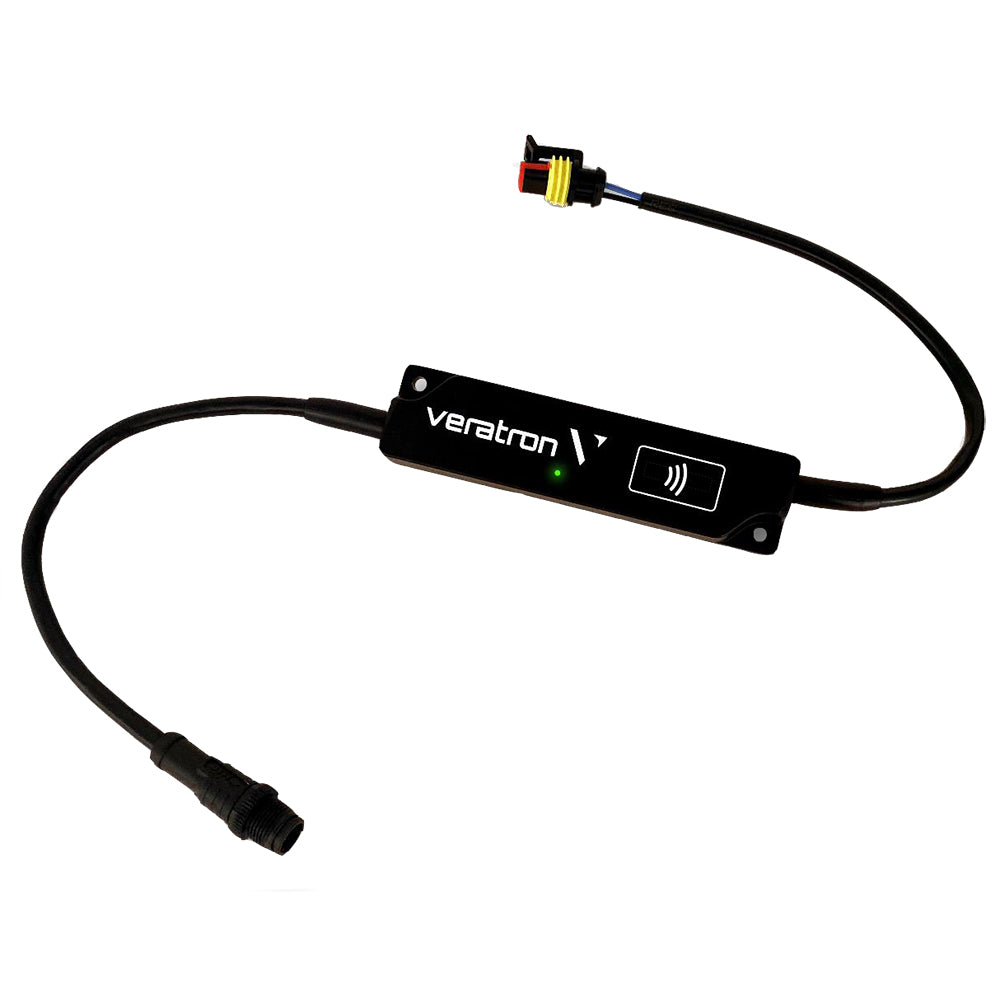

Veratron LinkUp Analog to NMEA 2000 Gateway [B00042201]
Veratron LinkUp Analog to NMEA 2000 Gateway [B00042201] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Veratron LinkUp Analog to NMEA 2000 Gateway [B00042201] is backordered and will ship as soon as it is back in stock.
Description
Description
LinkUp Analog to NMEA 2000 Gateway
The resistive-type LinkUp gateway provides an easy method to convert vessel and engine information to NMEA 2000.
Easily installed, the LinkUp Gateway replaces the original wiring, delivering power to both the LinkUp device and sensor from the NMEA 2000 backbone while still being complaint with the NMEA 2000 certification requirements.
Configuring the LinkUp Gateway is simple using a mobile device and the companion LinkUp Configuration App for Android or IOS.
Each device has a built-in passive NFC antenna, so the parameters of the sensors are wirelessly configured to type, instance and warning threshold on the mobile device which is then "tapped" against the LinkUp device for instant data download.
Features:
- User-friendly configuration through wireless interface and companion smartphone App
- Sensor Cable length - 25cm
- NMEA 2000 Cable length - 25 cm
- Tap to download parameters
- Mobile App for Android or IOS
- No power required to program
- No certification required
- Bi-directional communication, programming interface or data recovery
Supported Sensors:
- Fuel Level
- Oil/Boost Pressure
- Fresh/Waste Water Level
- Oil/Gear Oil/Coolant Temperature
- Trim Tabs
- Rudder Angle
Technical Specifications:
- Standard M12 NMEA 2000 plug
- LED Notification
- Operating Voltage - 6 - 16.5V
- Nominal Voltage - 12 V (from NMEA 2000 network)
- IPX7 Rated
- Sensor Plug - Superseal Female 2 Pin
- Counterpart Sensor Plug - - Superseal Male 2 Pin
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Owner's Manual (pdf)
Brochure (pdf)
