Trident Marine 6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-690-S/S]
Trident Marine 6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-690-S/S] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Trident Marine 6" ID 90-Degree EPDM Black Rubber Molded Wet Ex...
Trident Marine 6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-690-S/S] is backordered and will ship as soon as it is back in stock.
Description
Description

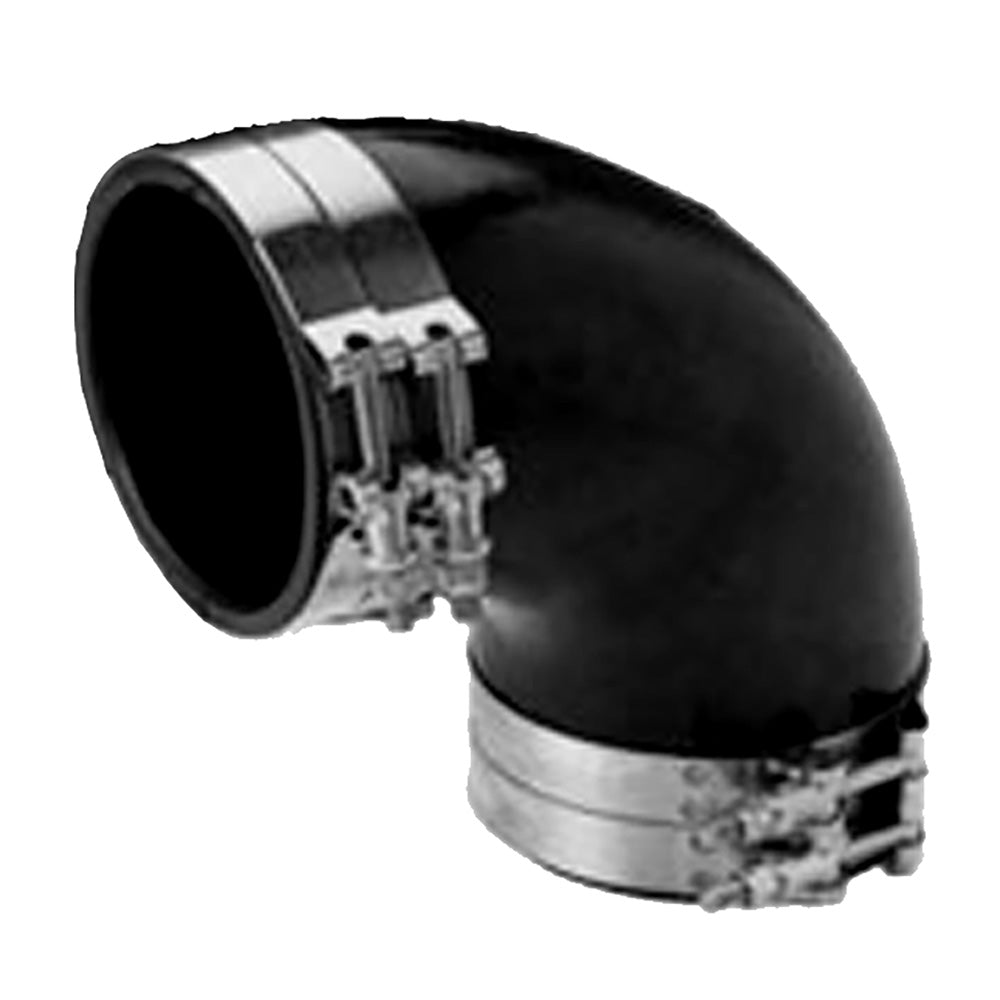

6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel clamps are included
- This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
- Black high-temp EDPM rubber
Construction:
- Color: Black
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 250°F (121°C)

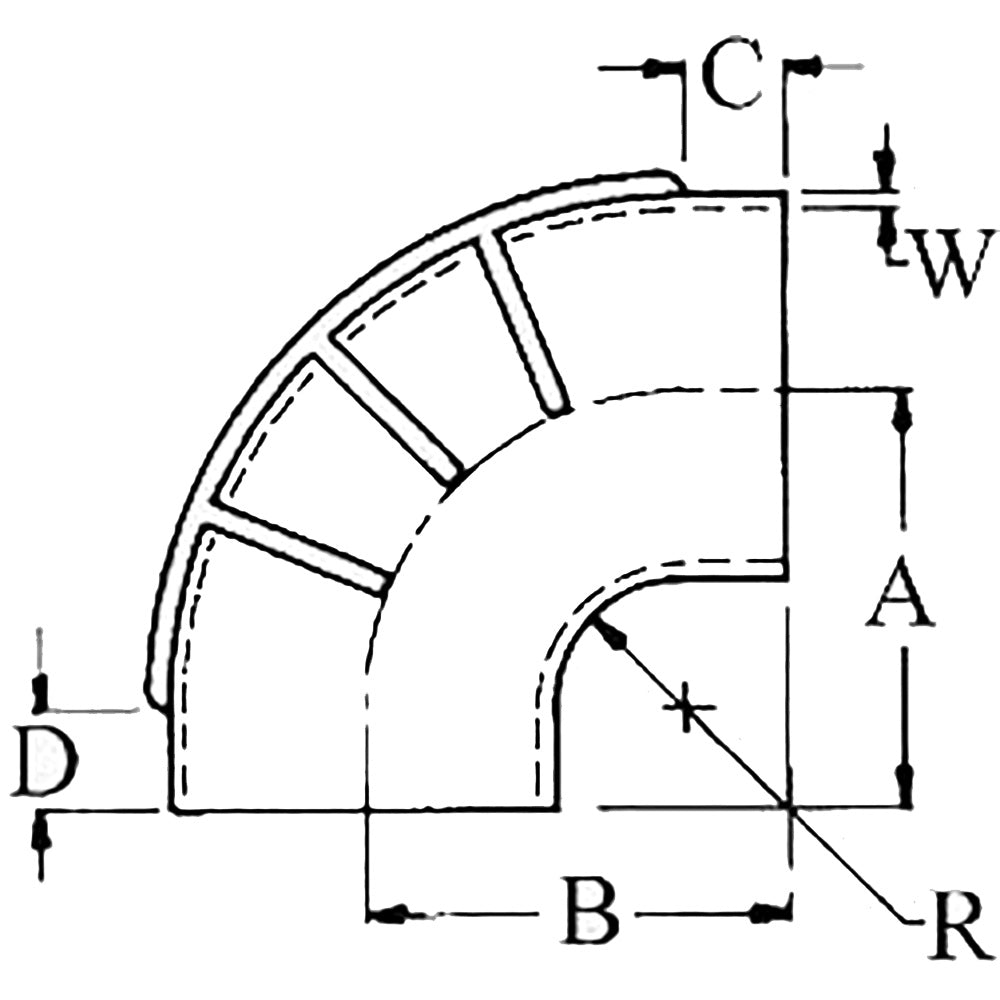

Specifications:
- Inner Diameter: (inch) 6” / (mm) 152.4
- A: (inch) 7" / (mm) 178
- B: (inch) 7” / (mm) 178
- C: (inch) 2.25” / (mm) 57
- D: (inch) 2.25” / (mm) 57
- R: (inch) 1.75” / (mm) 44.4
- W: (inch) 0.25” / (mm) 6.4
- Elbow Degree: 90 degrees
Specifications:
- ID Diameter (inches): 6"
- Box Dimensions: 8"H x 10"W x 15"L WT: 4.4 lbs
- UPC: 704917000435
Quick Guide (pdf)
