![Trident Marine 5/16" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot [365-0566-FT]](http://inletmarinesupply.com/cdn/shop/files/99613XL.jpg?v=1743620107&width=1500)

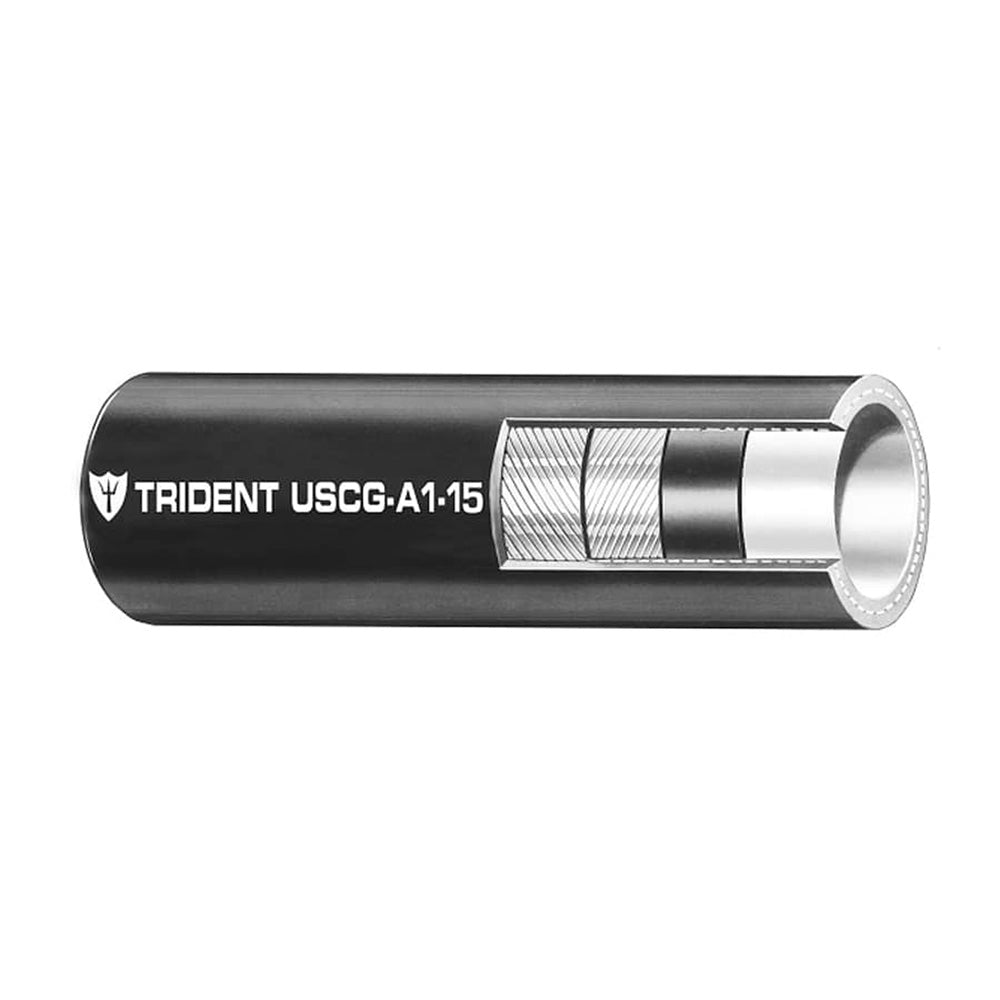

Trident Marine 5/16" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot [365-0566-FT]
Trident Marine 5/16" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot [365-0566-FT] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Trident Marine 5/16" Low Permeation Type A1-15 Fuel Line Hose ...
Trident Marine 5/16" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot [365-0566-FT] is backordered and will ship as soon as it is back in stock.
Description
Description
5/16" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot
Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.
Features:
- Sold by the foot
- Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
- Also provides excellent bend-ability
- NMMA Type Accepted & CE certified
Applications:
- Marine Fuel Hose (distribution, return, vent and transfer)
- For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel
Construction:
- Tube: Nylon Internal Barrier, NBR
- Cover: NBR/PVC Blend
- Reinforcement: Polyester 2 spiral
- Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
Specifications:
- Inner Diameter: (inch) 5/16" / (mm) 7.92
- Outer Diameter: (inch) 0.611 / (mm) 15.5
- Burst Pressure: (psi) 400 / (mpa) 2.76
- Working Pressure: (psi) 100 / (mpa) 0.69
- Bend Radius: (inch) 1.75" / (mm) 44.5
- Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198
- Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)
*The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- ID Diameter (inches): 5/16"
- Length (Feet): Sold By The Foot
- Box Dimensions: 1"H x 1"W x 6"L WT: 0.16 lbs
Quick Guide (pdf)
