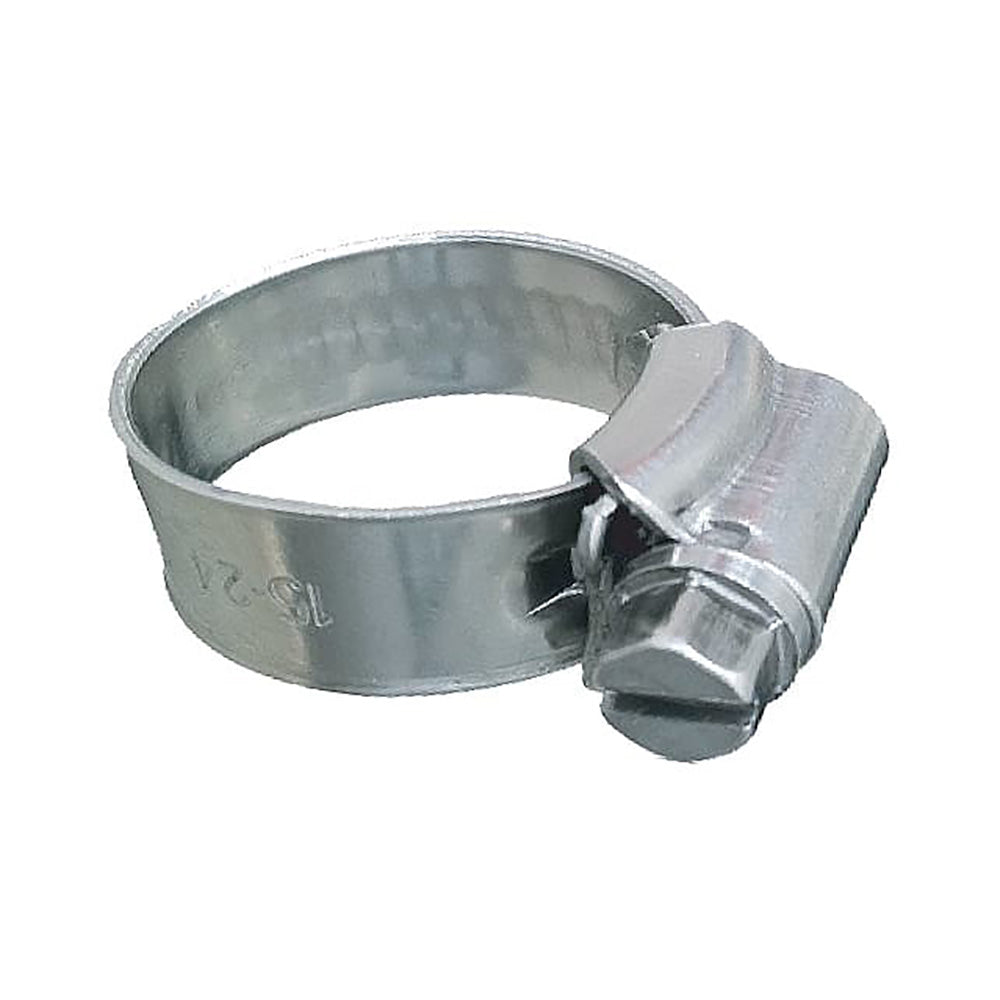

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"21/32" Clamping Range - 10-Pack - SAE Size 4 [705-0561]
Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"21/32" Clamping Range - 10-Pack - SAE Size 4 [705-0561] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8&quo...
Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"21/32" Clamping Range - 10-Pack - SAE Size 4 [705-0561] is backordered and will ship as soon as it is back in stock.
Description
Description
316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"–21/32" Clamping Range - 10-Pack - SAE Size 4
Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact “HD NON-PERF” Worm Gear Hose Clamp. The 9.7 mm (0.382”) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.
Features:
- The screw head is 7mm
- Long service life and safety for most general-purpose hose applications and connections
Recommendations:
- Measure hose O.D. before selecting clamp size for proper fit
- Double clamp on each hose end for critical applications
Construction:
- Band & Housing: 316 Stainless Steel 9.7 mm wide band – 0.8mm thick
- Screw Drive: 316 Stainless Steel 7.0 mm screw head
Specifications:
- SAE Size: 4
- Hose Inner Diameter: (inch) 1/4" – 5/16"
- Clamping Range: (inch) 7/16" – 21/32" / (mm) 11-17
- Recommended Torque Inch lbs: 25-35
Quick Guide (pdf)
