Description
Description

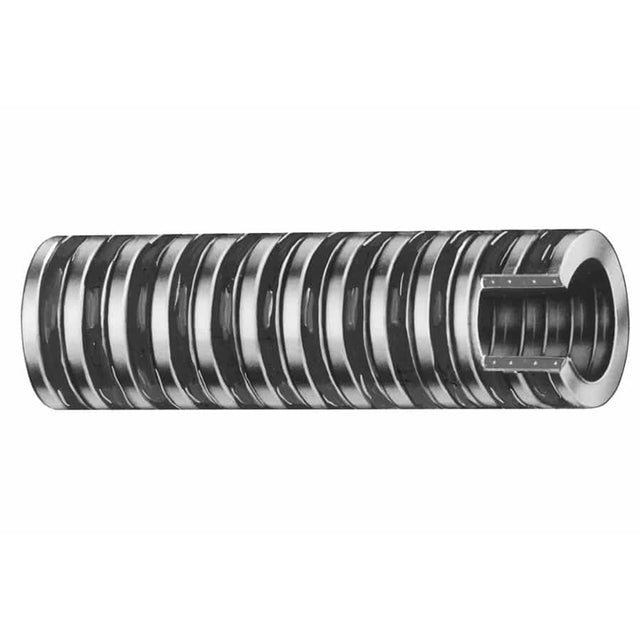

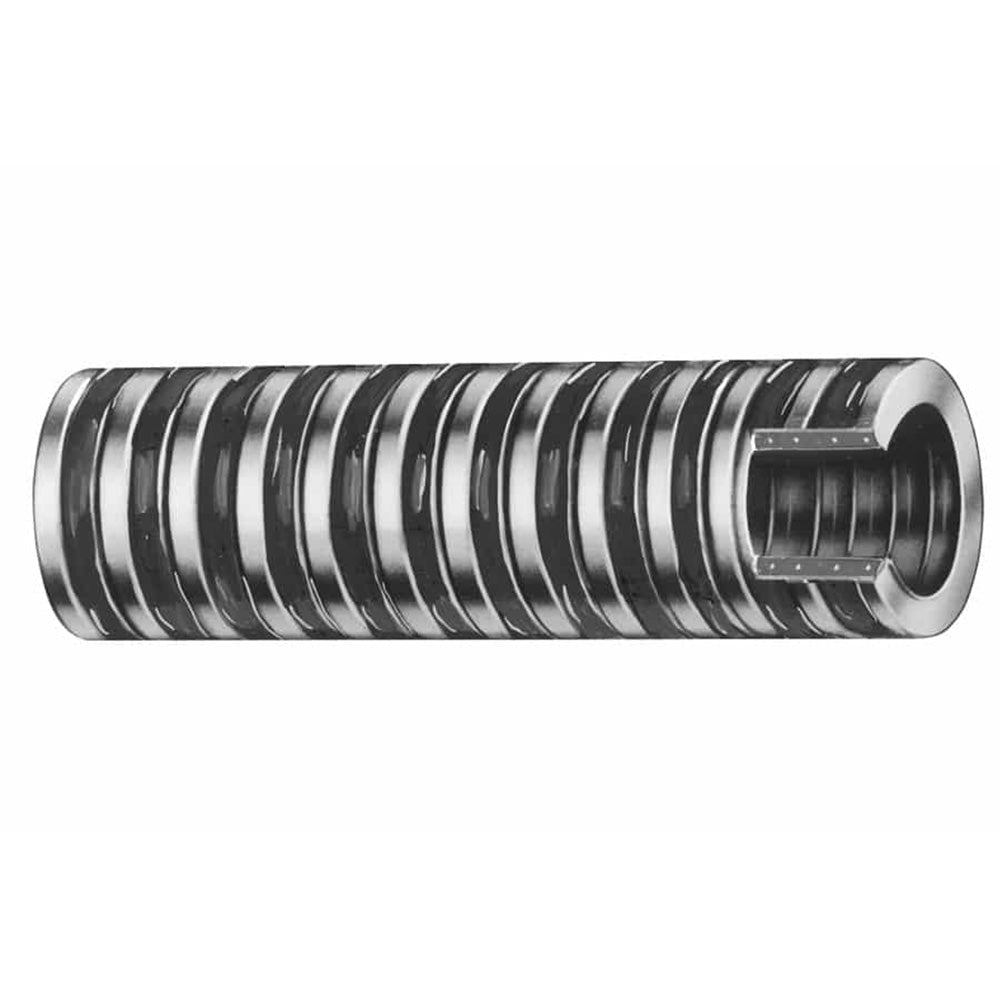

3/4" x 50' Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black Helix
Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.
Features:
- Flexible, but the 147 series is less flexible than the 149 series of hoses
Application:
- Bilge and live well hose
Specifications:
- Tube & Cover: Clear vinyl reinforced with black helix
- Color: Clear with black helix
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-49°C)
- Boxed: 50ft. / (15.24m)
- Inner Diameter: (inch) 3/4" / (mm) 19
- Outer Diameter: (inch) 0.968" / (mm) 24.6
- Working Pressure: (Psi Vac In./Hg) 28
- Weight: (Lb./ 50 ft.) 11 / (Kg/m) 0.33
- Bend Radius: (inch) 2.25" / (mm) 57.2
*Burst Pressure is 4 x Working Pressure
Specifications:
- Length (Feet): 50'
- ID Diameter (inches): 3/4"
- Box Dimensions: 5"H x 18"W x 18"L WT: 9.2 lbs
- UPC: 704917006154
