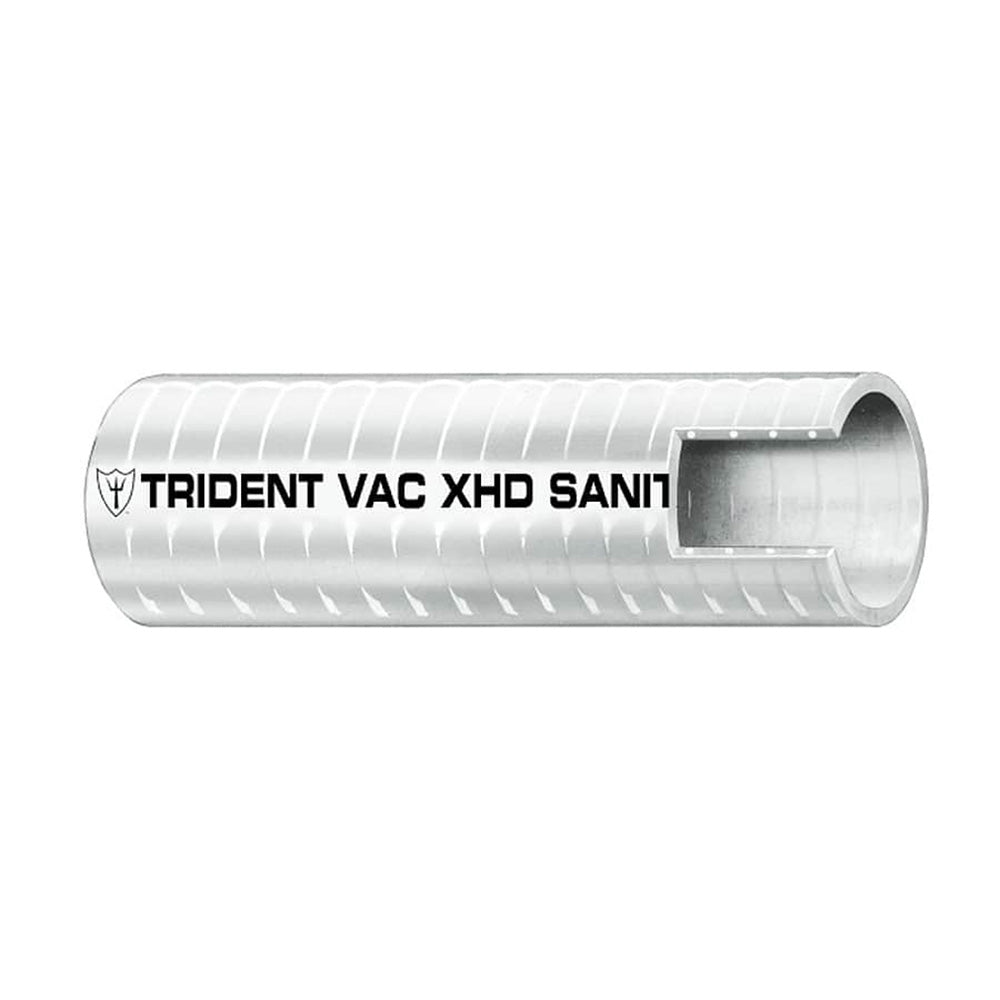

Trident Marine 1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot [148-1006-FT]
Trident Marine 1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot [148-1006-FT] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Trident Marine 1" VAC XHD Sanitation Hose - Hard PVC Helix - W...
Trident Marine 1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot [148-1006-FT] is backordered and will ship as soon as it is back in stock.
Description
Description
1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot
Trident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.
Features:
- Sold by the foot
- A hard PVC helix gives good flexibility and bend radius
- No cuffs are required
Applications:
- Specially compounded to provide resistance to odor permeation and (FDA) potable water fill
- Also for critical bilge, drain scupper, live well, etc
Specifications:
- Tube & Cover: Hard PVC helix
- Color: White
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-48°C)
- Inner Diameter: (inch) 1" / (mm) 25.4
- Outer Diameter: (inch) 1.262" / (mm) 32.1
- Working Pressure: (Psi Vac In./Hg) 28
- Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52
- Bend Radius: (inch) 3" / (mm) 76.2
*Don't use with alcohol, anti-freeze, petrochemicals, or solvents
*Burst Pressure is 4 x Working Pressure
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- ID Diameter (inches): 1"
- Length (Feet): Sold By The Foot
- Box Dimensions: 1"H x 1"W x 6"L WT: 0.32 lbs
Quick Guide (pdf)
