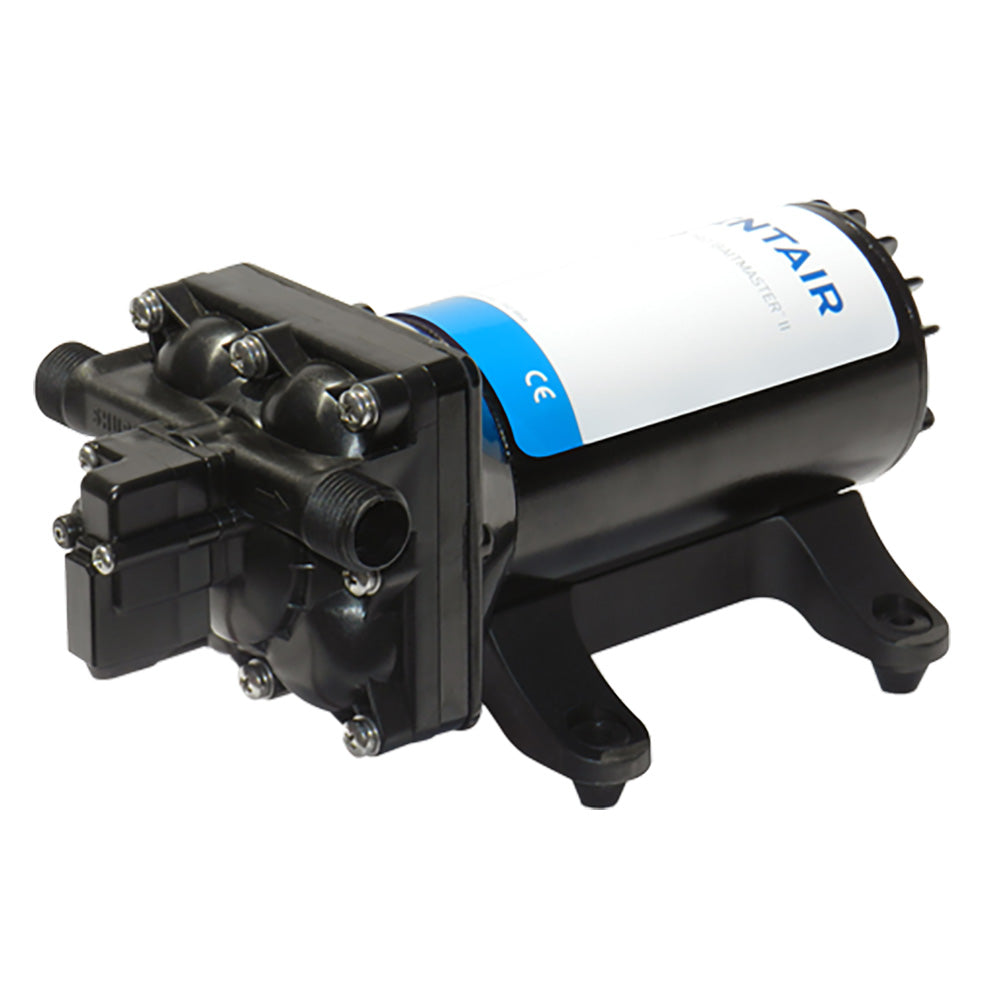

Shurflo by Pentair Baitmaster II Livewell Pump - 24 VDC - 4.0 GPM - Rated f/Tanks up to 35 Gal - Self-Priming [4648-163-E07]
Shurflo by Pentair Baitmaster II Livewell Pump - 24 VDC - 4.0 GPM - Rated f/Tanks up to 35 Gal - Self-Priming [4648-163-E07] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Shurflo by Pentair Baitmaster II Livewell Pump - 24 VDC - 4.0 GPM -...
Shurflo by Pentair Baitmaster II Livewell Pump - 24 VDC - 4.0 GPM - Rated f/Tanks up to 35 Gal - Self-Priming [4648-163-E07] is backordered and will ship as soon as it is back in stock.
Description
Description
Baitmaster™ II Livewell Pump - 24 VDC - 4.0 GPM - Rated for Tanks up to 35 Gal - Self-Priming
The Shurflo® PRO BAITMASTER™ II heavy-duty livewell/washdown pump is excellent for live-well or washdown applications in harsh marine environments. The seamless motor shell and sealed switch protect the pump from splashed liquids. Self-priming and can run dry without damage. For tanks sized 35 gallons and under.
Features:
- Sealed switch
- Ignition protected
- Thermally protected
- 4901 replacement
- Sealed motor
- Corrosion-resistant electro-coated motor
- 4 independent chambers
- Built-in check valve
- Co-molded diaphragm
- Self-priming up to 6 feet
- Dry run capability
Specifications:
- Dimensions: 10” x 5” x 4.75” (254 x 127 x 120 mm)
- Voltage: 24 DC
- Flow Rate: 4.0 GPM (15.1 LPM)
- Amps (Max): 4
- Shut-Off Pressure: 45 PSI (3.1 Bar)
Specifications:
- Gallons Per Hour: 4.0 GPM
- Volts: 24v
- Box Dimensions: 6"H x 7"W x 13"L WT: 7.95 lbs
- UPC: 752324012022
Quick Guide (pdf)
