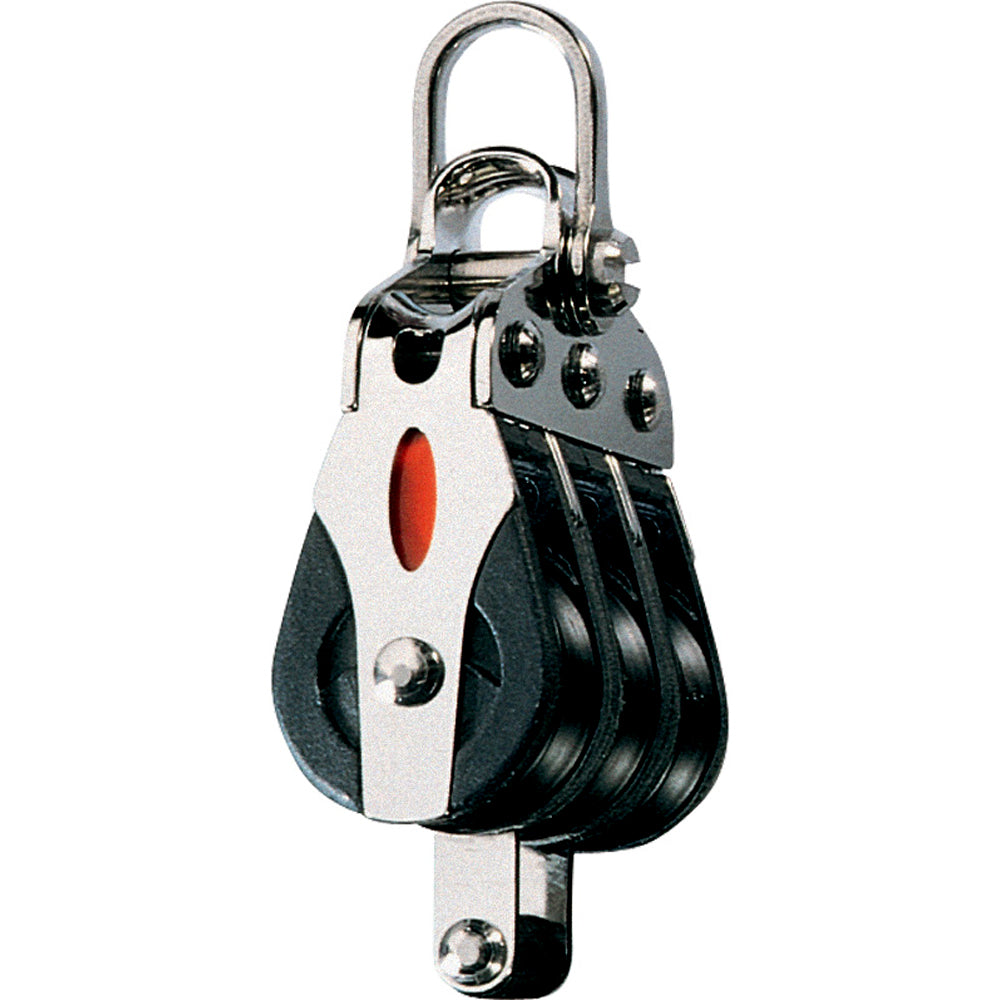

Ronstan Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head [RF20312]
Ronstan Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head [RF20312] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Ronstan Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Sha...
Ronstan Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head [RF20312] is backordered and will ship as soon as it is back in stock.
Description
Description
Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head
Features:
- Low friction
- High static and dynamic load capacity
- Lightweight
- Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
- Two-Way head can be fixed at 0° or 90°
Applications:
- Dinghy control lines
- Dinghy vangs
- Cunninghams
- Traveller controls
Materials:
- Stainless steel ball bearings
- UV Stabilized Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fiber reinforced Nylon cheeks
Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.: 400kg(880lbs)
B. L.: 850kg(1,870lbs)
Weight: 64g(2.3oz)
