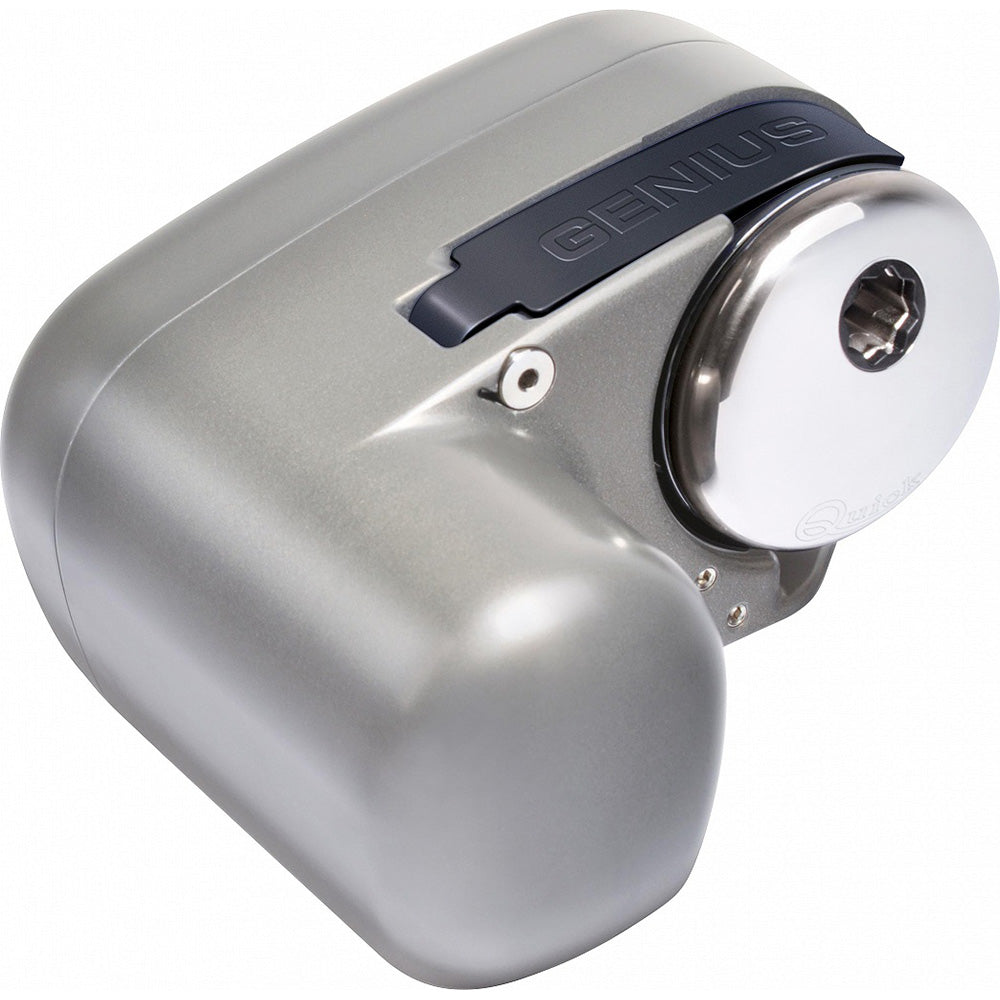

![Quick Genius GP2 2000 Windlass - 800W, 12V, 8MM or 5/16" Gypsy [FSGP22012008A00]](http://inletmarinesupply.com/cdn/shop/files/114594XL.jpg?v=1786007462&width=1500)
Quick Genius GP2 2000 Windlass - 800W, 12V, 8MM or 5/16" Gypsy [FSGP22012008A00]
Quick Genius GP2 2000 Windlass - 800W, 12V, 8MM or 5/16" Gypsy [FSGP22012008A00] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Quick Genius GP2 2000 Windlass - 800W, 12V, 8MM or 5/16" Gypsy [FSGP22012008A00] is backordered and will ship as soon as it is back in stock.
Description
Description
Genius GP2 2000 Windlass - 800W, 12V, 8MM or 5/16" Gypsy
The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Horizontal on-deck windlasses
- For boats 26-43FT
- 8MM or 5/16" Gypsy
- Requires 5/8" three-stranded polyester rope
- Anodized aluminium in hard oxide base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclic gearbox (GP2 1500-2000)
- Includes T6415-12 Solenoid
Specifications:
- Motor power - 800 W
- Motor supply voltage - 12 V
- Maximum pull - 900 Kg / 1984 lb
- Maximum working load - 350 Kg / 772 lb
- Working load - 120 kg/265 lb
- Current absorption @ working load - 96 A
- Maximum chain speed - 29,6 m/min / 97.1 ft/min
- Maximum chain speed @ working load - 20 m/min 65.6 ft/min
- Weight - 10,2 Kg / 22.4 lb
