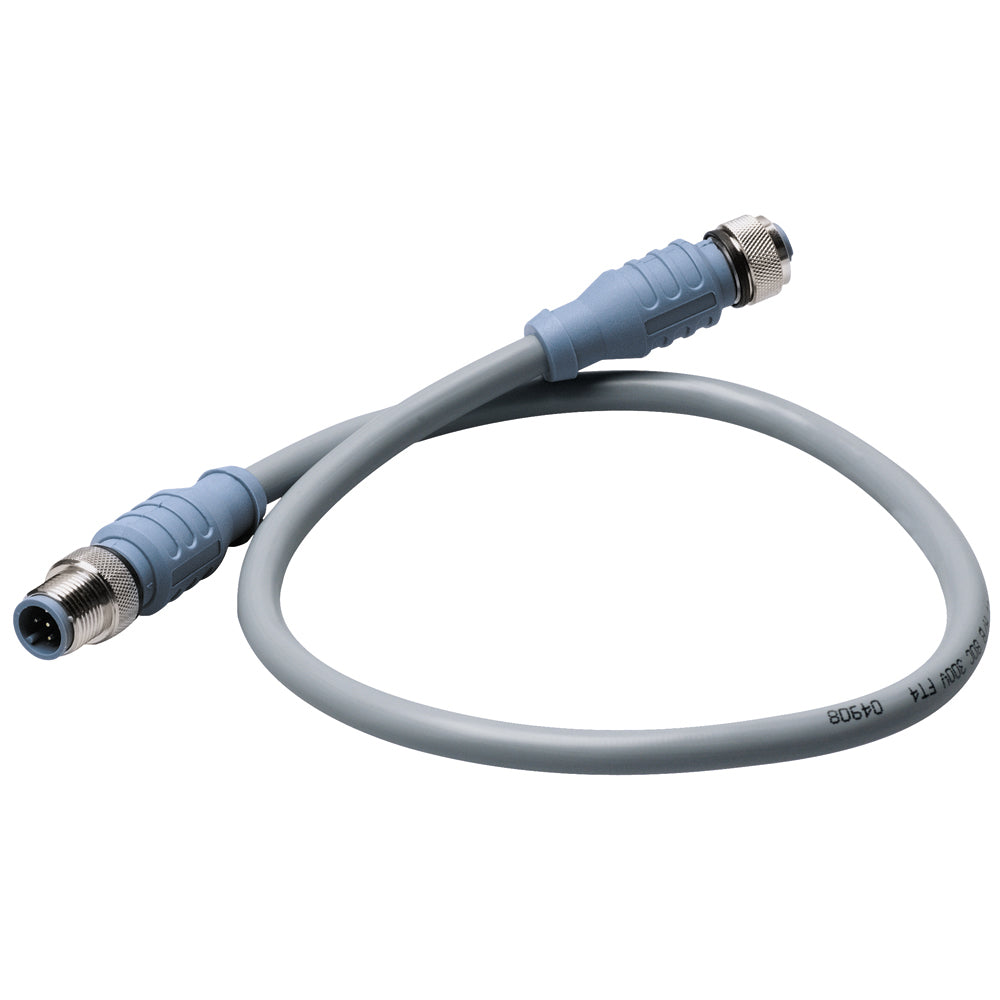

Maretron Micro Double-Ended Cordset - 1 Meter [CM-CG1-CF-01.0]
Maretron Micro Double-Ended Cordset - 1 Meter [CM-CG1-CF-01.0] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Maretron Micro Double-Ended Cordset - 1 Meter [CM-CG1-CF-01.0]
Maretron Micro Double-Ended Cordset - 1 Meter [CM-CG1-CF-01.0] is backordered and will ship as soon as it is back in stock.
Description
Description
Micro Double-Ended Cordset - 1M
Mechanical
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical - Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
AWM 80 deg C 300V - (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
AWM I/II A/B 80C 300V FT4 - NMEA: NMEA 2000 Approved
Specifications:
- Connection Gender: Male-Female
- Data Interface: NMEA 2000
- Cable Length (Meters): 1m
- NMEA 2000 Connectors: Backbone/Drop Cables
- Box Dimensions: 1"H x 4"W x 5"L WT: 0.2 lbs
- UPC: 873804001517
