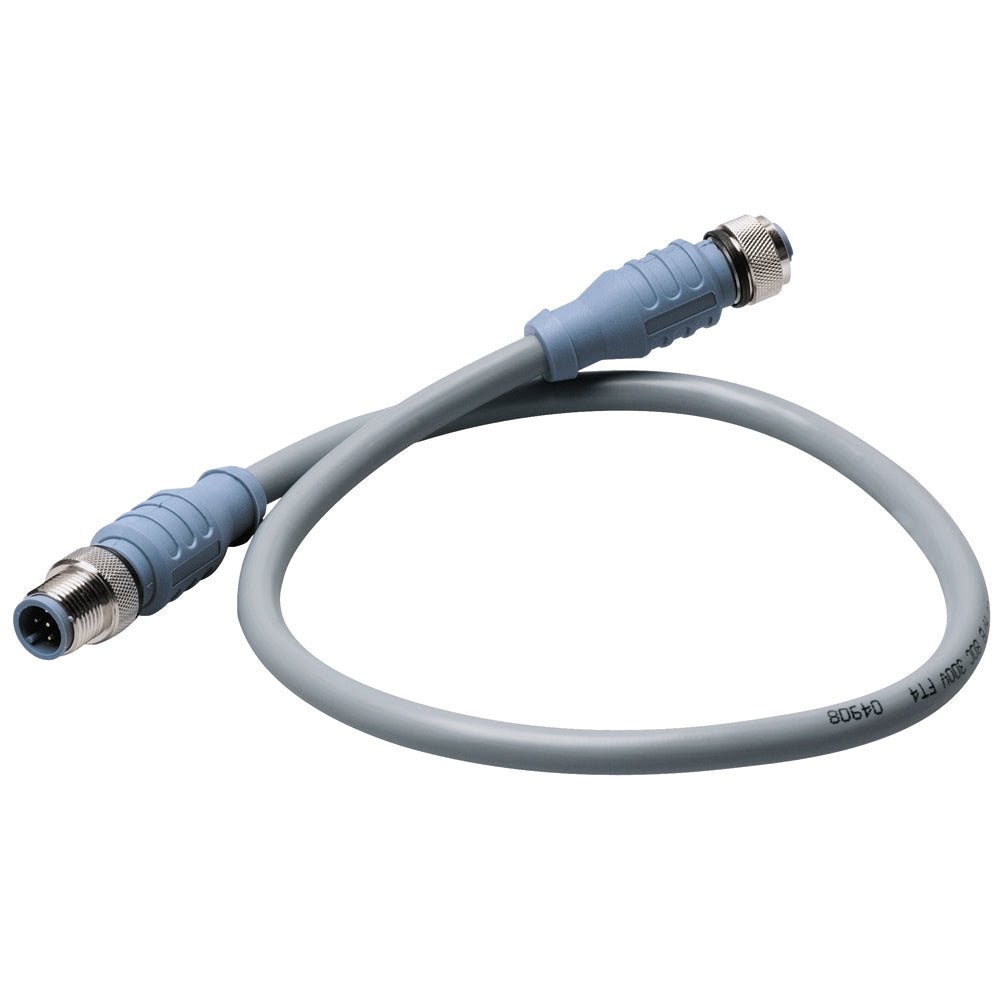

Maretron Micro Double-Ended Cordset - 0.5M [CM-CG1-CF-00.5]

Name: Maretron Micro Double-Ended Cordset - 0.5M [CM-CG1-CF-00.5]
Brand: Maretron
SKU: IM-31797
Price: 30.00 USD
Availability: OutOfStock

$30.00

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

Micro Double-Ended Cordset - 0.5M

Mechanical

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59" Electrical
Current Rating: 4.0 Amps
Voltage Rating: 250 V Cable
Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
(Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
NMEA: NMEA 2000 Approved

Specifications:

Data Interface: NMEA 2000
NMEA 2000 Connectors: Backbone/Drop Cables
Box Dimensions: 1"H x 5"W x 5"L WT: 0.1 lbs
UPC: 873804001500
