Lumishore  |  SKU: IM-109608

Lumishore EOS TIX404 Interchangeable Thru-Hull [010-04529-00]

Regular price $2,569.99


Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

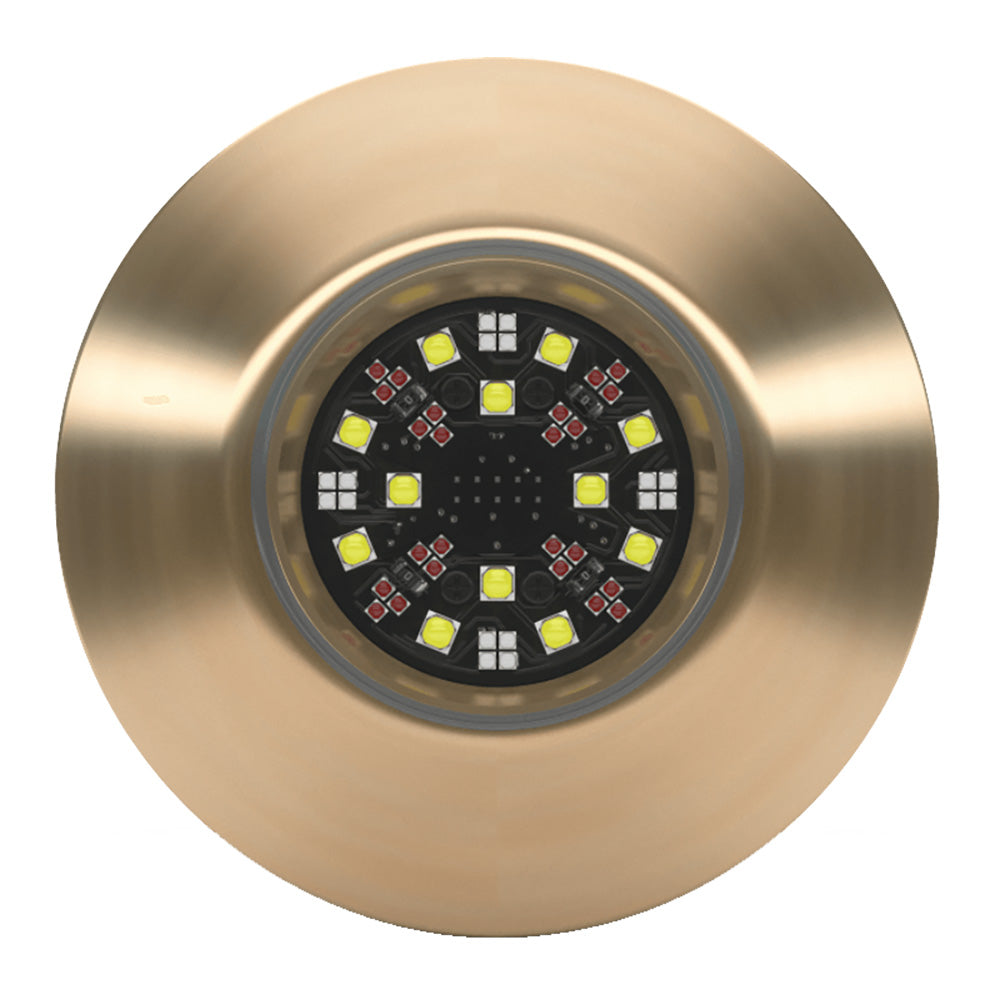

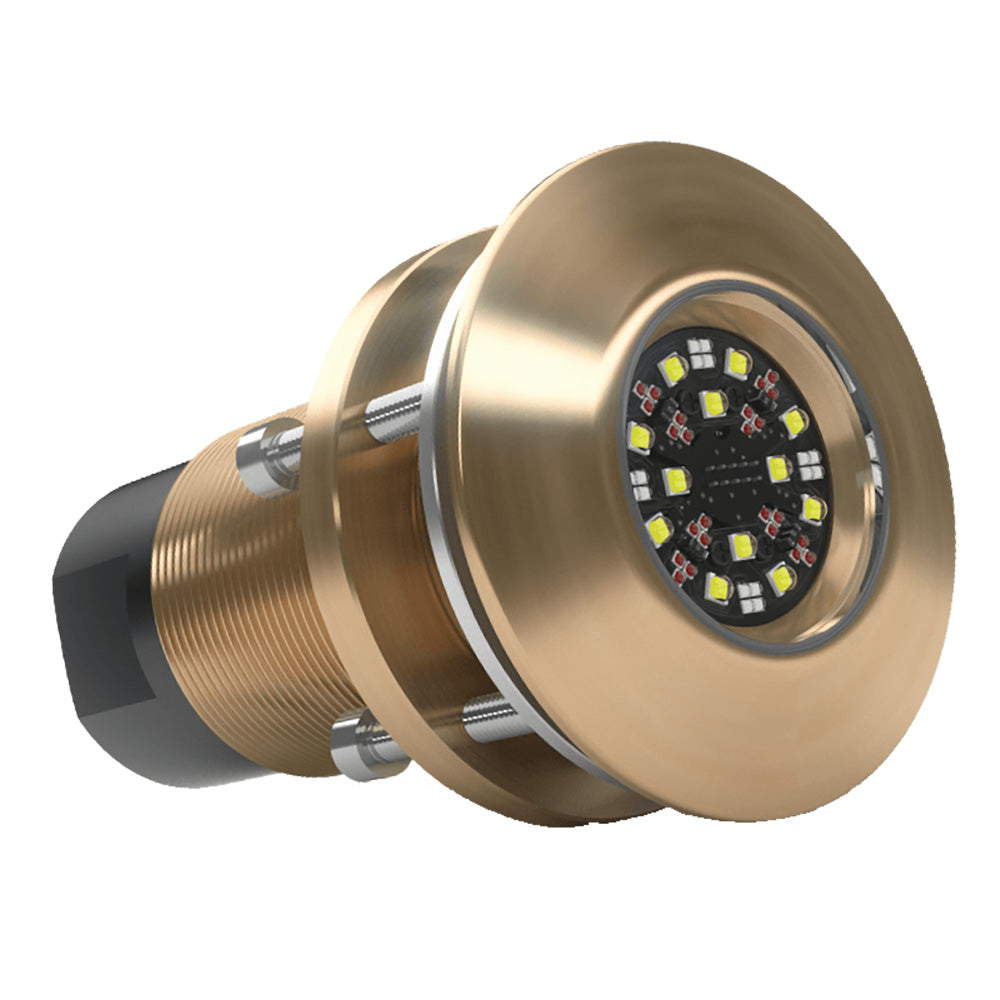

EOS TIX404 Interchangeable Thru-Hull

The fully controllable color change TIX404 underwater light delivers the greatest range of colors and offers a powerful 7,500 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.

Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.

All Lumishore Thru-Hulls are ‘flush-fit’ with extremely low profiles, suitable for transom, side, and bottom mounting. TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.

Specifications:

  • Available Colors: Full EOS Color Change (RGBW)
  • Lumens: 16,875
  • Fixture Lumens (White): 7,500
  • Number & Type Of LED: White–12×10W / Green–12×3W / Blue–12×3W / Red–16×3W
  • LED Power - HICOB Array: Yes
  • Typical LED Life: 50,000+ Hours
  • Warranty: 3 Years
  • User Control Options: Certified MFD Screen EOS-LUX-SUPRA Display WiFi Control from Smart Phone or Connected Device (via MFD or 2204i Wifi)
  • Electrical Installation: Plug-and-Play Connections
  • Housing Type: Marine Bronze Body with Borosilicate Glass Lens

Specifications:

  • Color: RGBW
  • Material: Bronze
  • Mounting Style: Thru-Hull
  • Voltage - Input Range (Volts): 12/24v
  • Box Dimensions: 6"H x 6"W x 9"L WT: 3.7 lbs
  • UPC: 847772004054

Quick Guide (pdf)
