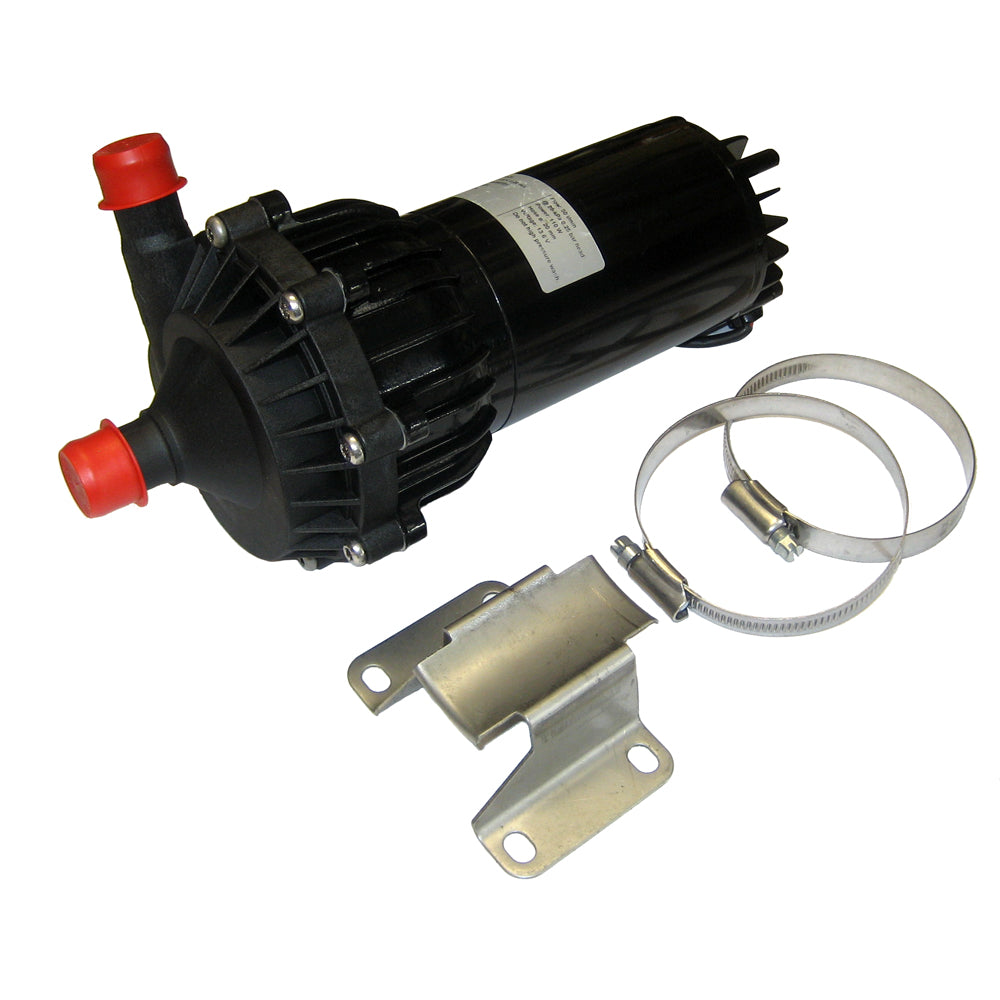

Johnson Pump CM90P7-1 13.6V CIRCULATION PUMP D20 [10-24750-09]
Johnson Pump CM90P7-1 13.6V CIRCULATION PUMP D20 [10-24750-09] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Johnson Pump CM90P7-1 13.6V CIRCULATION PUMP D20 [10-24750-09]
Johnson Pump CM90P7-1 13.6V CIRCULATION PUMP D20 [10-24750-09] is backordered and will ship as soon as it is back in stock.
Description
Description
CM90P7-1 13.6V CIRCULATION PUMP D20
CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.
Specifications:
- System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar
- Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water
- Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor
- Dry running: 30 minutes
- Dimensions: 244mm L x 120mm W x 150mm H
- Weight: 6.6lbs
- Capacity: 17.2 GPM
- Ports: 3/4"
Specifications:
- Gallons Per Minute: 17.2 GPM
- Volts: 12v
- Box Dimensions: 6"H x 8"W x 11"L WT: 6.7 lbs
- UPC: 7330717013172
