Humminbird 9-M360-2-DDI-Y - MEGA 360 2D/MDI 7-Pin Y-Cable [720107-1]
Humminbird 9-M360-2-DDI-Y - MEGA 360 2D/MDI 7-Pin Y-Cable [720107-1] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Humminbird 9-M360-2-DDI-Y - MEGA 360 2D/MDI 7-Pin Y-Cable [720107-1]
Humminbird 9-M360-2-DDI-Y - MEGA 360 2D/MDI 7-Pin Y-Cable [720107-1] is backordered and will ship as soon as it is back in stock.
Description
Description

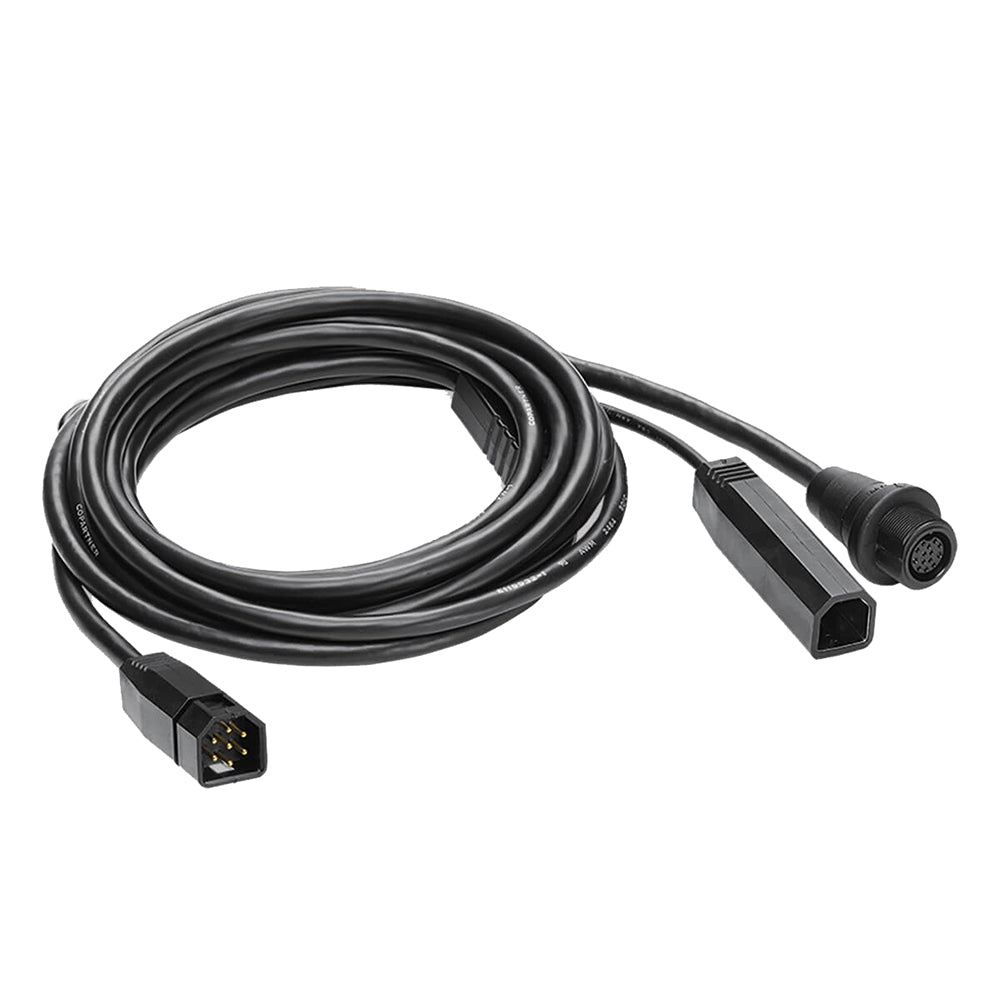

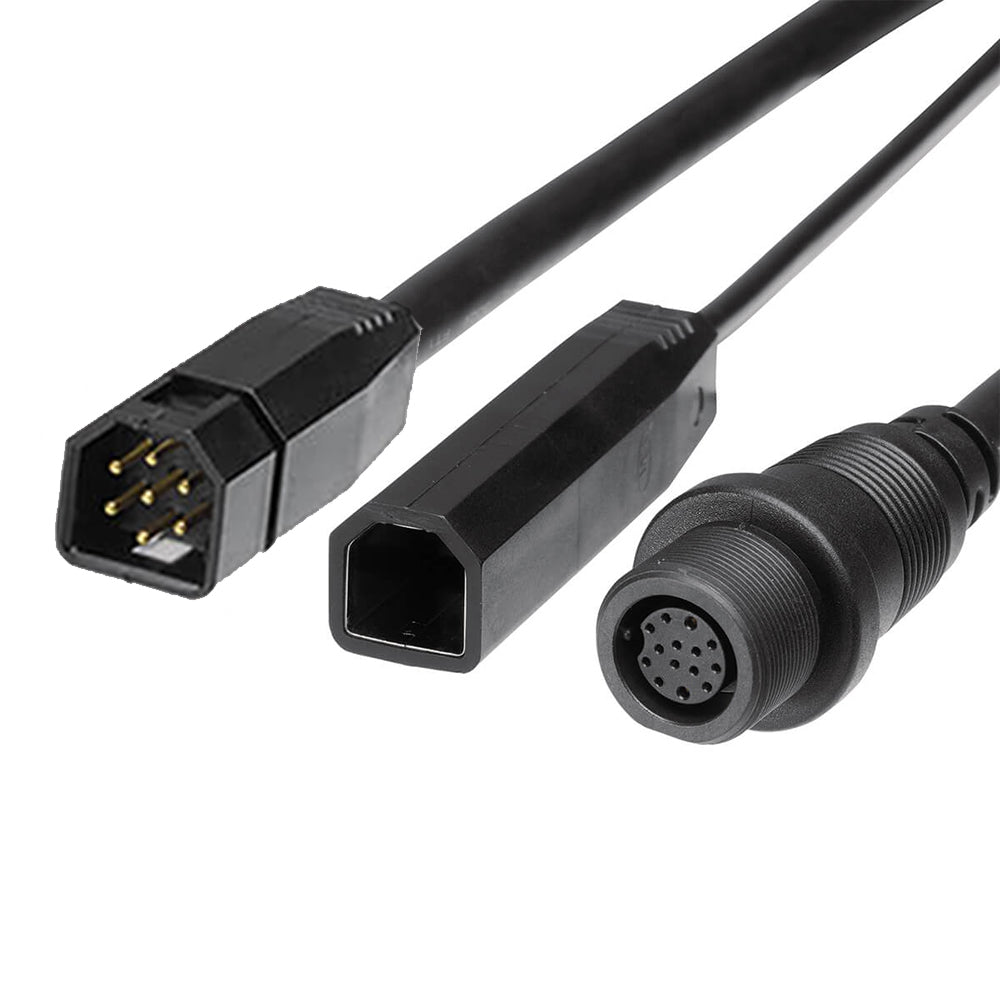

9-M360-2-DDI-Y - MEGA 360 & 2D/MDI 7-Pin Y-Cable
This Y cable allows for the connection a MEGA 360 Imaging transducer and an external 7-pin HW / MDI+ transducer to the same compatible HELIX fish finder.
- Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder.
- For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin HW / MDI+ transducer.
- This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to #720108-1 14 M360 2DDI Y for this specific rigging need.
- Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
- 30" (76 cm) cable on Dual Sprectrum CHIRP side of cable
- 10' (3 m) cable on the MEGA 360 side
- 1-Year Limited Warranty
Specifications:
- Type: Adapters
- Box Dimensions: 3"H x 7"W x 9"L WT: 0.8 lbs
- UPC: 082324054853
