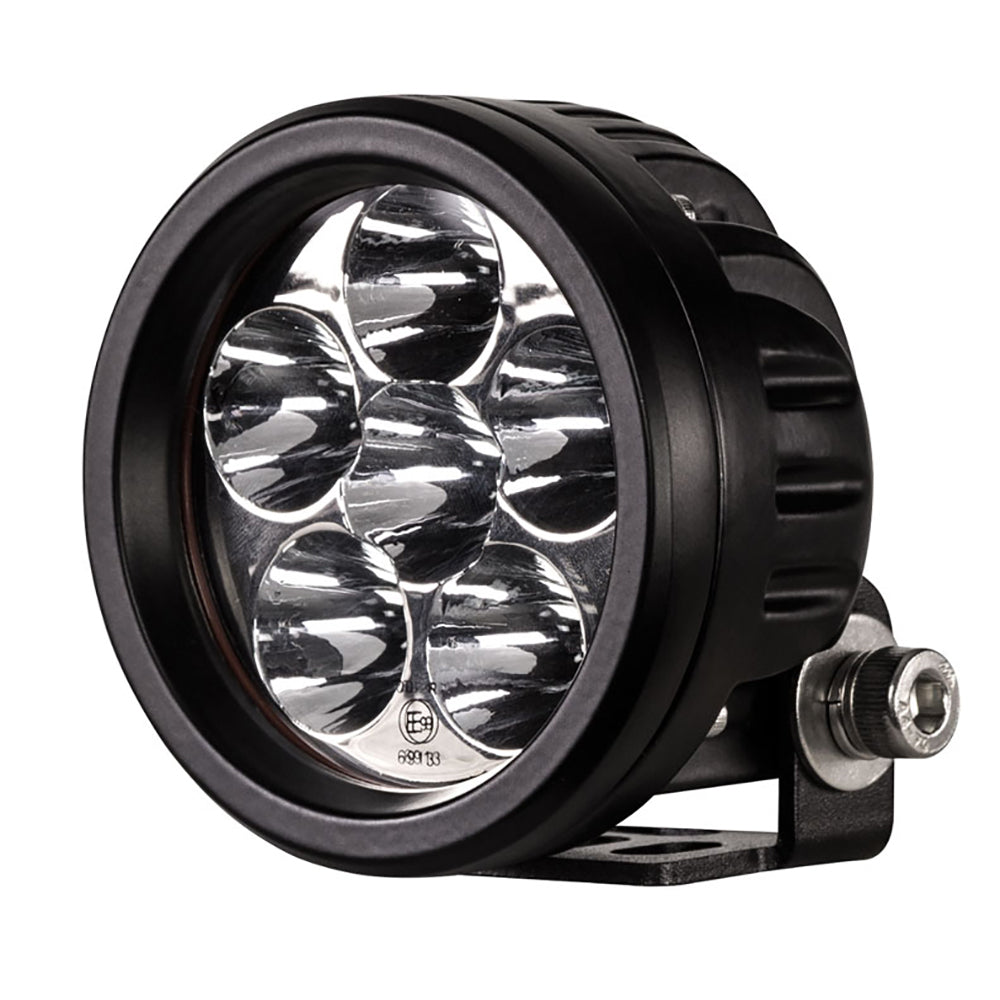

HEISE Round LED Driving Light - 3.5" [HE-DL2]

Name: HEISE Round LED Driving Light - 3.5" [HE-DL2]
Brand: HEISE LED Lighting Systems
SKU: IM-69767
Price: 132.99 USD
Availability: OutOfStock

$132.99 $147.99

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

Round LED Driving Light - 3.5"

SPECS

Input Voltage: 10-30V DC
Wattage: 18W (6-3W OSRAM LEDs)
Raw Lumens: 1440
Color Temperature: 6000K
Beam Pattern: 8º Spot

CONSTRUCTION

Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Black Powder Coated Steel
Hole Dimensions: Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

OPERATION

Operating Temperature: -40º C to +60º C
Current Consumption: .9 amps at 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Optional black cover HE-DLC35 available

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Housing: Black
Beam Pattern: Driving
Voltage - Input Range (Volts): 12/24v
Length (Inches): 3.5"
Box Dimensions: 3"H x 4"W x 5"L WT: 0.85 lbs
UPC: 086429312931
