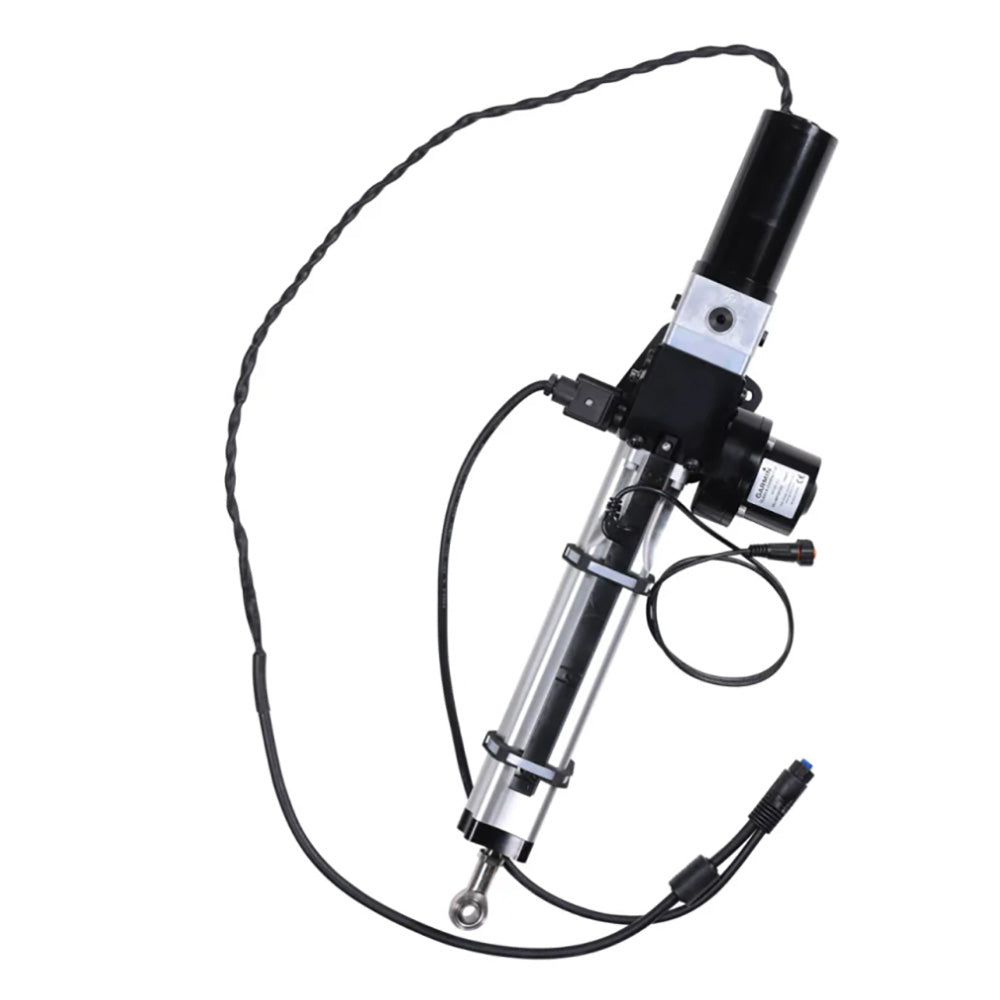

![Garmin Class B Compact v2 Drive Unit [010-12029-01]](http://inletmarinesupply.com/cdn/shop/files/103387XL.jpg?v=1753190335&width=1500)
Garmin Class B Compact v2 Drive Unit [010-12029-01]
Garmin Class B Compact v2 Drive Unit [010-12029-01] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Garmin Class B Compact v2 Drive Unit [010-12029-01] is backordered and will ship as soon as it is back in stock.
Description
Description
Class B Compact v2 Drive Unit
The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.
Specifications:
- Dimensions (WxHxD, centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
- Drive unit type: Integrated hydraulic linear
- Stroke length: 10" (254 mm)
- Maximum thrust: 1,610 lbs (730 kg)
- Supply voltage: 10V to 30 V (regulated to 12V by the ECU)
- Average clutch current at 12V: 1 Amp
- Average motor current at 12V: 2-4 Amps
- Operating temperature: -15° C to 50° C
Specifications:
- Steering Type: Hydraulic
- Box Dimensions: 6"H x 11"W x 32"L WT: 23.7 lbs
- UPC: 753759335816
