Furuno B60-20, 20 Degree Tilted Element Transducer [525T-LTD/20]

Name: Furuno B60-20, 20 Degree Tilted Element Transducer [525T-LTD/20]
Brand: Furuno
SKU: IM-26252
Price: 275.00 USD
Availability: OutOfStock

$275.00

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

B60 Tilted Element 20° Furuno 10 pin connector

20° titled version is designed for 16° - 24° deadrise angles

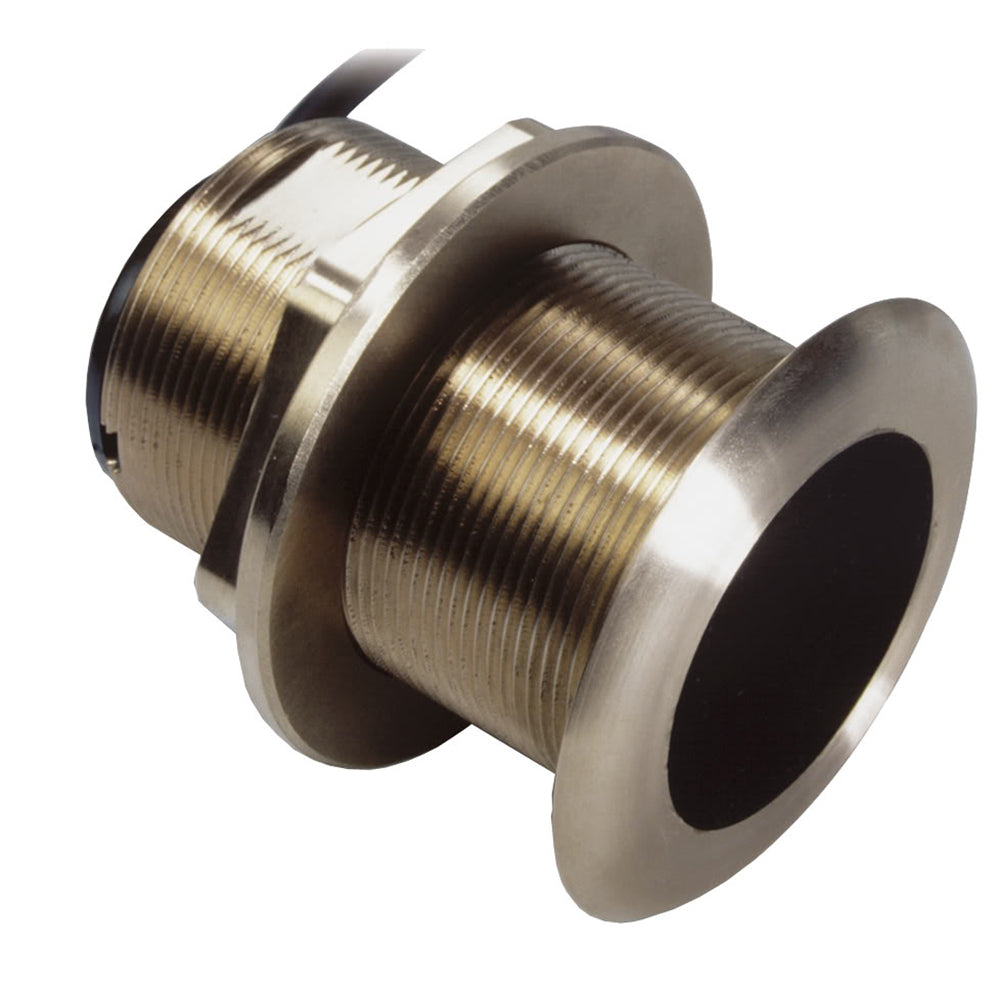

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

Depth/Temp
50/200 kHz
600w RMS
Mid-performance
Bronze

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

Mounting Style: Thru-Hull
Temperature: Yes
Speed Included: No
Box Dimensions: 6"H x 8"W x 9"L WT: 4.6 lbs
UPC: 6116793079346

Owner's Manual (pdf)
Brochure (pdf)
