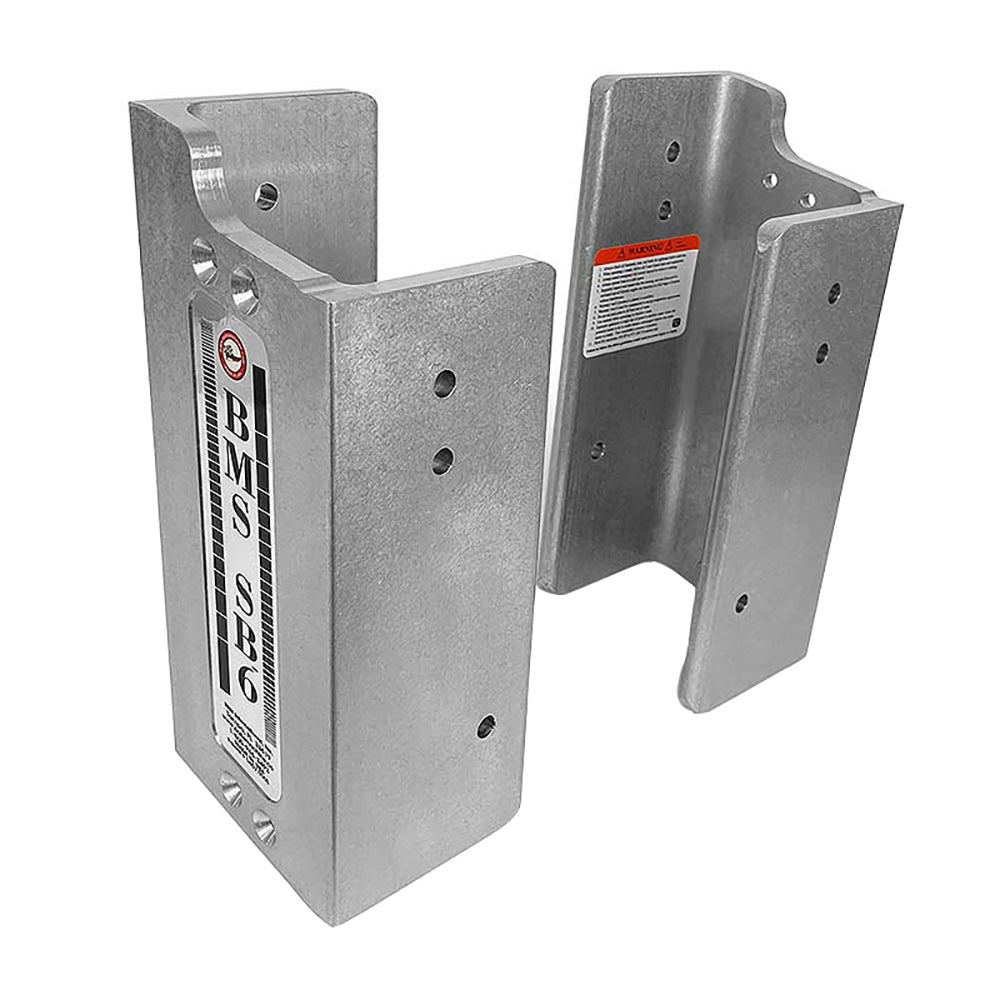

Bob's Machine 6" Fixed Setback Brackets w/1.5" Built-In Lift - Silver [100-406000-NOPC]

6" Fixed Setback Brackets with 1.5" Built-In Lift - Silver

Features:

• Fixed Setback bracket rated for up to 550HP
• Designed for installation directly to transom and motor.  Not for use as spacer.  If you want to spacer jack plate back further, please see no lift version.
• 1.5″ of built-in lift
• Thick material and large radius make these the one of the strongest available!
• The fixed setback brackets provide advantages for all boaters, including improved fuel economy and better top speed.
• Setback brackets re-position the motor into cleaner water to increase propeller efficiency and minimize prop slippage. Drag is reduced and the boat exhibits more bow lift, which results in a drier ride. The increased distance between the propeller and the hull also improves boat operation in reverse.
• The fixed setback brackets are made of 5/8’s inch thick, heavy-duty 6061 T6 aircraft-grade aluminum and can handle up to 550-hp engines. They have the same industrial design and appearance as hydraulic jack plates to give an overall look and feel of consistency.
• Installing the brackets is easy. Remove the motor and install the brackets in the transom’s existing holes. Then re-mount the motor on the brackets.
• Because the brackets are designed to fit all motors with the standard BIA bolt pattern, there is no need to plug and re-glass the old holes. The brackets are also pre-drilled with two sets of mounting holes to provide different engine height adjustments.
