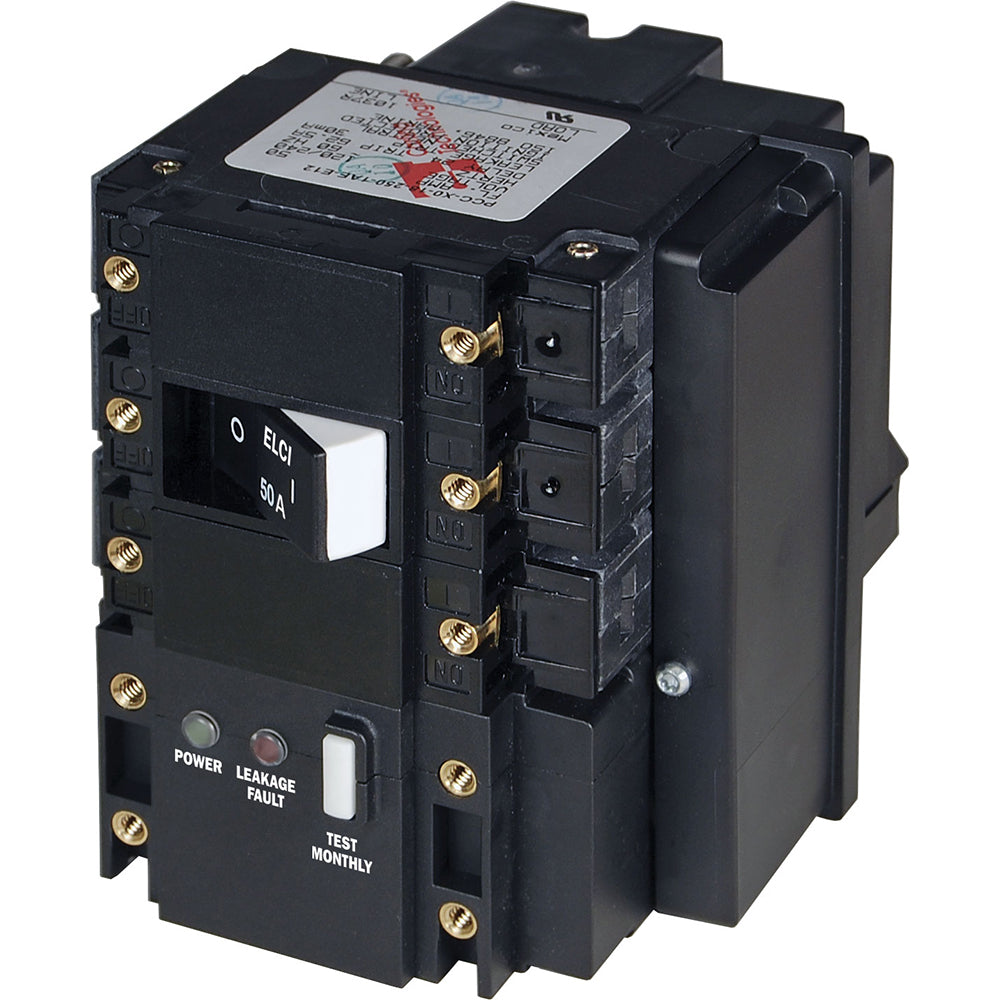

Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A [3104]
Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A [3104] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A [3104] is backordered and will ship as soon as it is back in stock.
Description
Description
C-Series ELCI Main Circuit Breaker - 120/240V AC 50A
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 3
- Ignition Protected: Yes
- Max Voltage: 120VAC per pole/240VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
