![Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey [8261]](http://inletmarinesupply.com/cdn/shop/files/14578XL.jpg?v=1743527298&width=1500)

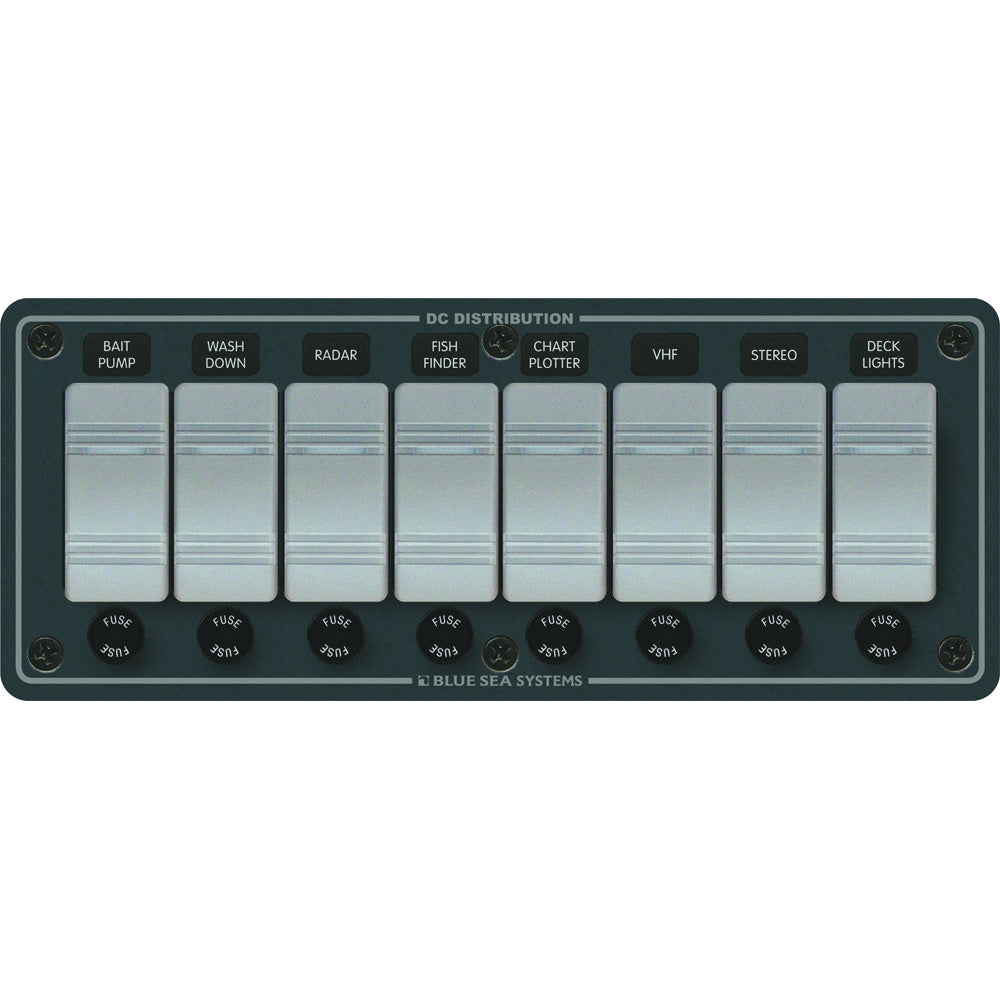

Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey [8261]
Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey [8261] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey [8261]
Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey [8261] is backordered and will ship as soon as it is back in stock.
Description
Description
8261 Waterproof Panel 8 Position - Slate Grey
Features:
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- Designed for flybridge and open cockpit applications
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Watertight mounting gasket included
- Countersunk mounting holes throughout
- Two-part polyurethane slate gray finish
- Industry standard height and width
- Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
- Completely wired and ready to install
Specifications:
- Weatherproof: Water Resistant
- Positions: 8
- Nominal Voltage: 12v / 24v
- Panel Cumulative Rating: 90A
- Switch Rating: 20A @ 12v DC / 15A @ 24v DC
- Height: 3.75"
- Width: 9.37"
- Depth: 3"
Included:
- (8) 5021 Panel Mount AGC/MDL Fuse Holder
- (1) 8214 Black 60 Label Set
- (8) 8230 Contura Switch SPST Gray - Off-On
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Waterproof: Resistant
- AC/DC: DC
- Max Breaker Quantity: 8
- Voltage: 12/24v
- Box Dimensions: 7"H x 10"W x 10"L WT: 5.6 lbs
- UPC: 632085082611
Owner's Manual (pdf)
