Blue Sea 4322 Circuit Breaker Switch Panel 6 Position - Gray [4322]
Blue Sea 4322 Circuit Breaker Switch Panel 6 Position - Gray [4322] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea 4322 Circuit Breaker Switch Panel 6 Position - Gray [4322]
Blue Sea 4322 Circuit Breaker Switch Panel 6 Position - Gray [4322] is backordered and will ship as soon as it is back in stock.
Description
Description

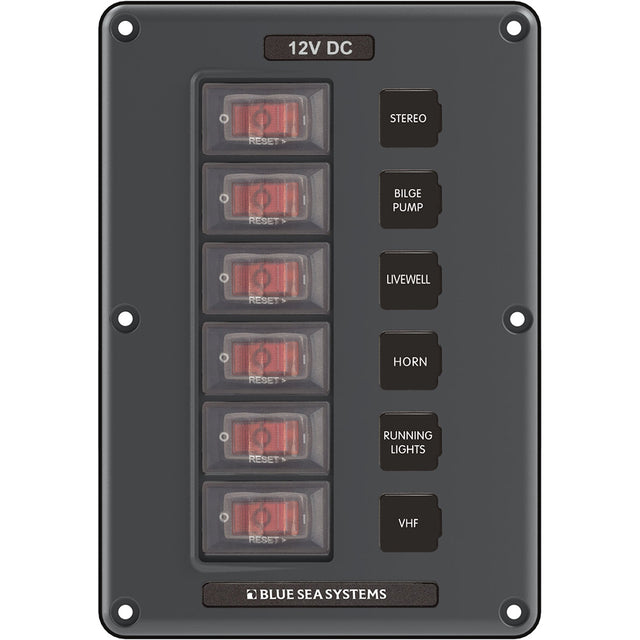

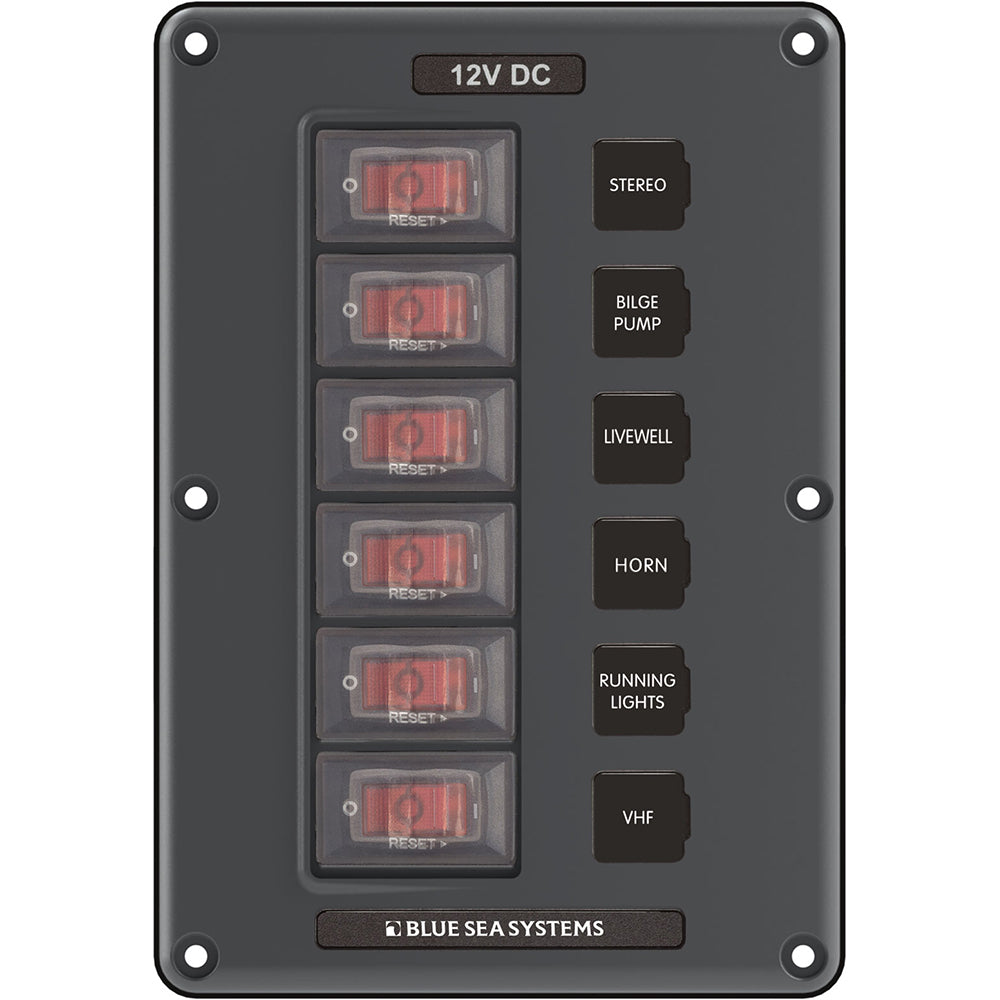

4322 Circuit Breaker Switch Panel 6 Position - Gray
Designed for exposed mounting applications.
Features:
- Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
- Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Silicon breaker boots and gasket protects against water ingress
- Low profle makes it easy to install in tight spaces
- Fast-on circuit breaker connectors make it quick to wire
- Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Specifications:
- Color: Gray
- Positions: 6
- Nominal Voltage: 12 VDC
- Maximum Amperage: 45A
- Terminal Type: 1/4" Male Quick Connect
- Hardware: Stainless Steel #6 x 5/8" mounting screws
- Ring Terminal Size: M5 (#10)
Specifications:
- Voltage: 12v
- AC/DC: DC
- Max Breaker Quantity: 6
- Waterproof: Resistant
- Box Dimensions: 1"H x 6"W x 10"L WT: 0.6 lbs
- UPC: 632085043223
