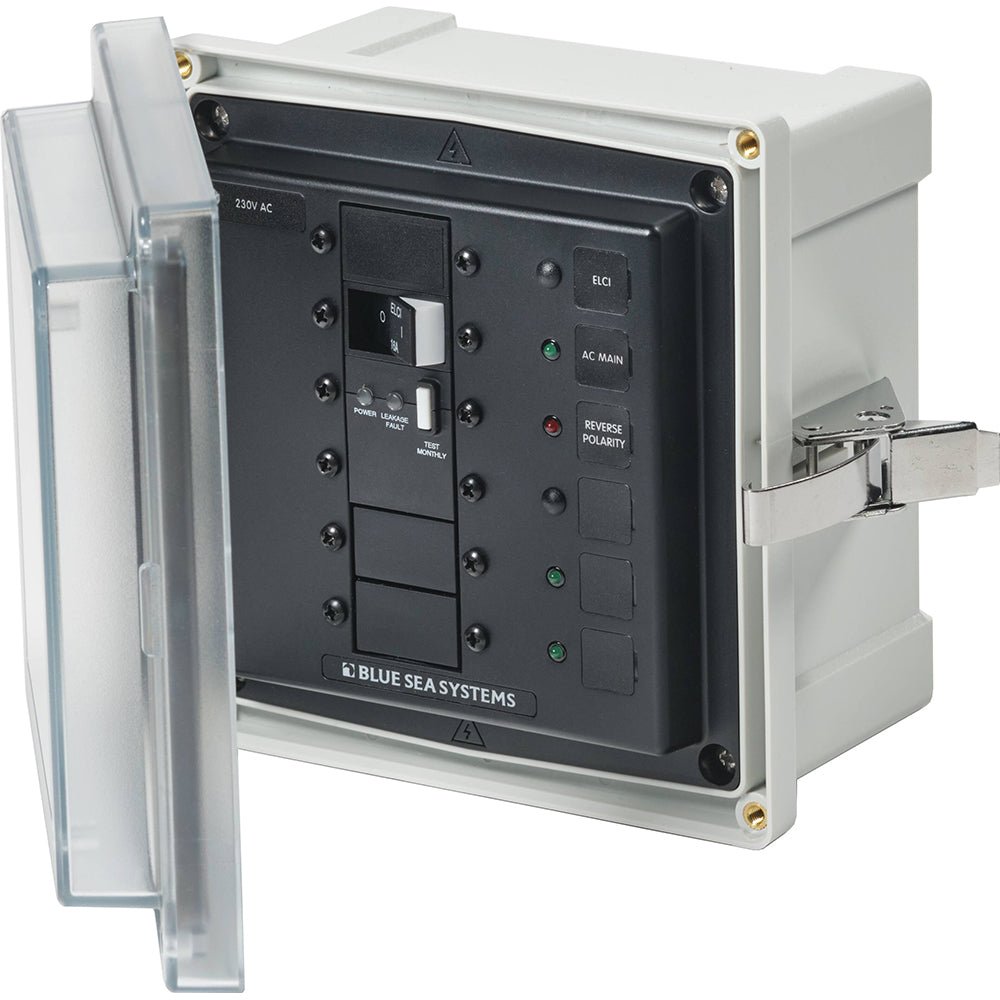

Blue Sea 3121 - SMS Panel Enclosure w/ELCI (16A) 3 Blanks - 230V AC [3121]
Blue Sea 3121 - SMS Panel Enclosure w/ELCI (16A) 3 Blanks - 230V AC [3121] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea 3121 - SMS Panel Enclosure w/ELCI (16A) 3 Blanks - 230V A...
Blue Sea 3121 - SMS Panel Enclosure w/ELCI (16A) 3 Blanks - 230V AC [3121] is backordered and will ship as soon as it is back in stock.
Description
Description
3121 - SMS Panel Enclosure with ELCI (16A) & 3 Blanks - 230V AC
The 3121-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x ELCI (16A) Main 230V and 3 x Blank
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC)
In the Box:
- 3121 Enclosure
- Glands x 5
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
Specifications:
- AC/DC: AC
- Voltage: 230
- Box Dimensions: 7"H x 9"W x 10"L WT: 3.9 lbs
- UPC: 632085031213
