Blue Sea 1522 360 Panel Dual Bilge Pump Control [1522]
Blue Sea 1522 360 Panel Dual Bilge Pump Control [1522] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea 1522 360 Panel Dual Bilge Pump Control [1522]
Blue Sea 1522 360 Panel Dual Bilge Pump Control [1522] is backordered and will ship as soon as it is back in stock.
Description
Description

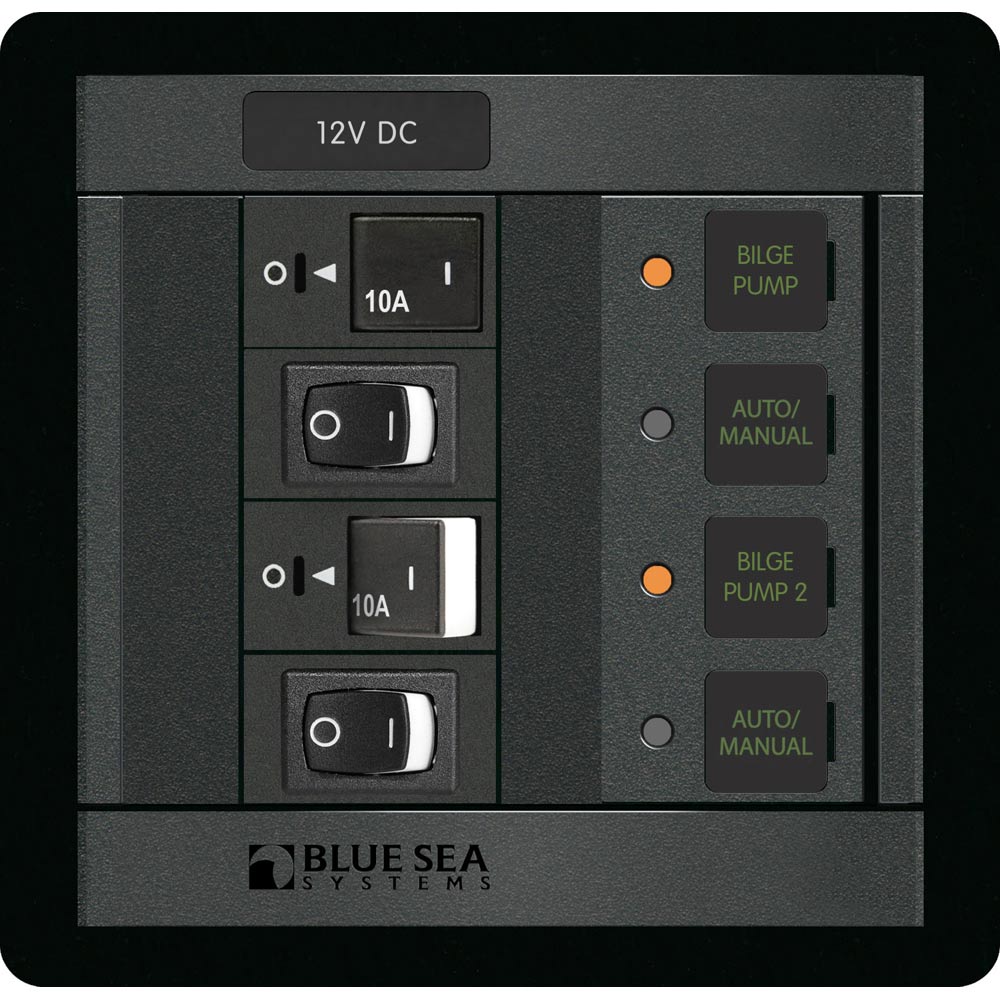

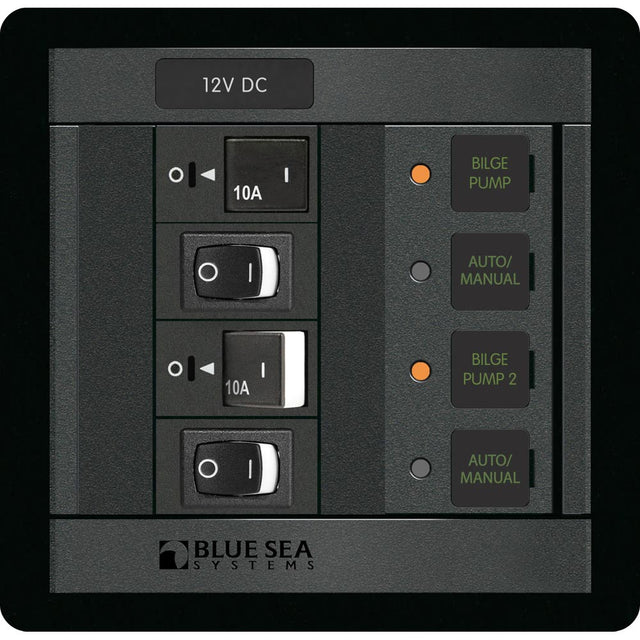

360 Panel Dual Bilge Pump Control
Controls two bilge pumps
Restricted-off circuit breakers and manual override switches
- On-indicating LED indicates power is available at the bilge pump float switch
- Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch
- Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation
Specifications:
-
Nominal Voltage: 12V DC
-
Height: 4.75" (120.65mm)
- Width: 4.88" (123.95mm)
Includes:
(2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A
(2) - 7480 - Rocker Switch SPST - ON-OFF
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Box Dimensions: 5"H x 7"W x 9"L WT: 1.3 lbs
- UPC: 632085015220
Quick Guide (pdf)
