Airmar B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block Humminbird #9 Connector [B45-DT-HB]
Airmar B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block Humminbird #9 Connector [B45-DT-HB] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Airmar B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block Humminbird #9 Connector [B45-DT-HB] is backordered and will ship as soon as it is back in stock.
Description
Description

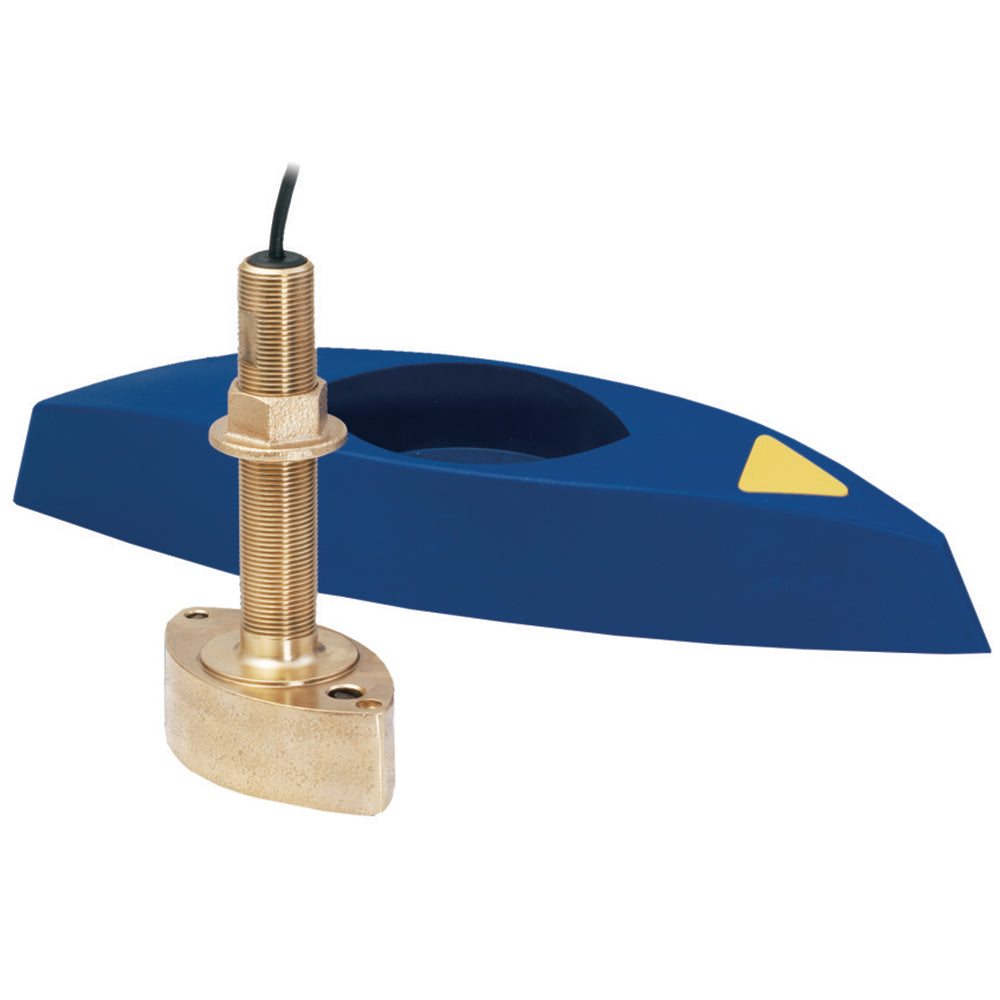

B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird #9 Connector
The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape and High Performance fairing block deflects aerated water from the transducer's face for strong return echoes and clear display images.
Features:
- Bronze housing
- Depth and Temperature
- Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30’)
- Good sensitivity in a compact housing
- Fast-response water-temperature sensor provides ±0.2°C (±0.1°F)
- High-Performance Fairing included
- Usable Shaft Length: 92 mm (3.62”)
- Standard fairing block
- Frequency: 50/200 kHz
- Maximum Depth Range:
- 50 kHz—235 m to 353 m (800’ to 1,200’)
- 200 kHz—118 m to 206 m (400’ to 700’)
- Cone: 50 kHz—45°, 200 kHz—12°
- RMS Power: 600 W
Specifications:
- Mounting Style: Thru-Hull
- Box Dimensions: 4"H x 12"W x 16"L WT: 4.6 lbs
- UPC: 801769000177
