Wichard Symmetric Carbin Hook - 120mm Length - 15/32" [2317W]

Name: Wichard Symmetric Carbin Hook - 120mm Length - 15/32" [2317W]
Brand: Wichard Marine
SKU: IM-97651
Price: 97.21 USD
Availability: InStock

$97.21 $114.37

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

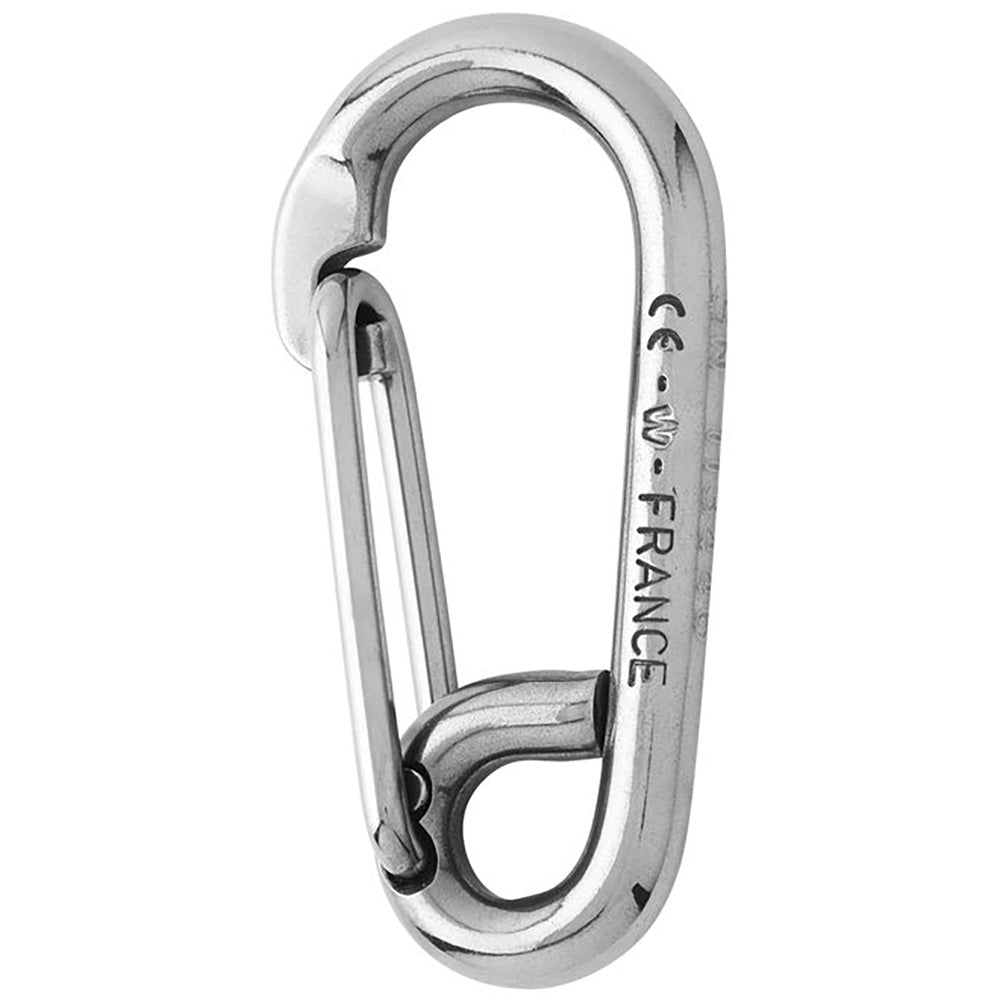

Symmetric Carbin Hook - 120mm Length - 15/32"

Features:

Grade 316L stainless steel carbine hooks
Symmetrical shape
With eye to attach a webbing or a splicing

Applications:

For fastening applications

Specifications:

Materials: 316L stainless steel grade
Working load: (lb) 2990 / (kg) 1360
WLL: (lb) 1580 / (kg) 720
Breaking load: (lb) 7930 / (kg) 3600
Weight: (lb) 0.505 / (g) 229

Dimensions:

A: (inch) 53/64" / (mm) 21
B: (inch) 5/8" / (mm) 16
D diameter: (inch) 15/32" / (mm) 12
Length: (inch) 4 23/32" / (mm) 120

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
