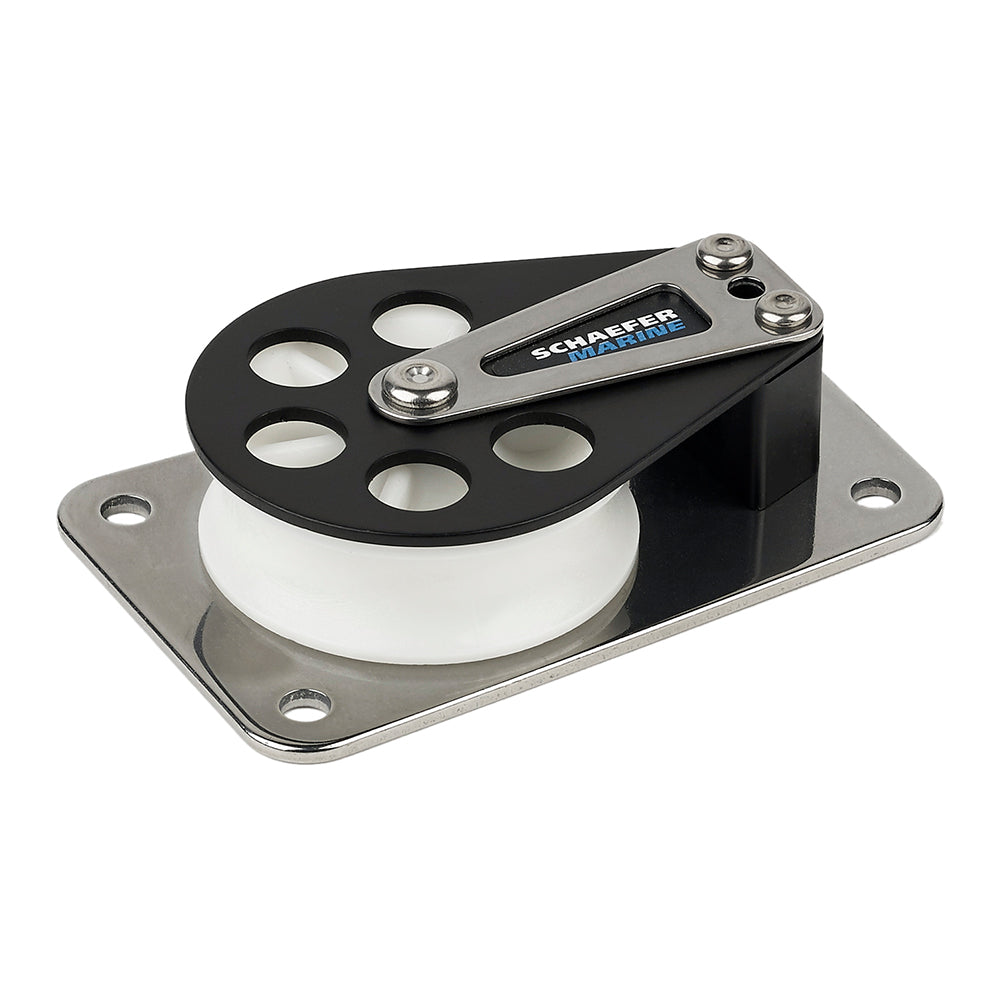

![Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11]](http://inletmarinesupply.com/cdn/shop/files/74738XL.jpg?v=1743547482&width=1500)
Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11]
Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11]
Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11] is backordered and will ship as soon as it is back in stock.
Description
Description
Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Dia. 2-3/8" (60 mm)
- Max. Line 1/2" (13 mm)
- Length 4-3/8" (111 mm)
- Width 2-3/4" (70 mm)
- Height 1" (25 mm)
- Fasteners (4) 1/4" RH (6 mm)
- C/C 3-5/8" (92 mm)
- C/C (wide end) 2" (51mm)
- C/C (narrow end) 1-9/16"
- SWL 2250 lbs. (1020 kg)
- Weight Alum. 9.6 oz. (272 g)
