Barton Size 2 35mm Plain Bearing Pulley Block Double w/Swivel [N02230]
Barton Size 2 35mm Plain Bearing Pulley Block Double w/Swivel [N02230] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Barton Size 2 35mm Plain Bearing Pulley Block Double w/Swivel [N02230]
Barton Size 2 35mm Plain Bearing Pulley Block Double w/Swivel [N02230] is backordered and will ship as soon as it is back in stock.
Description
Description

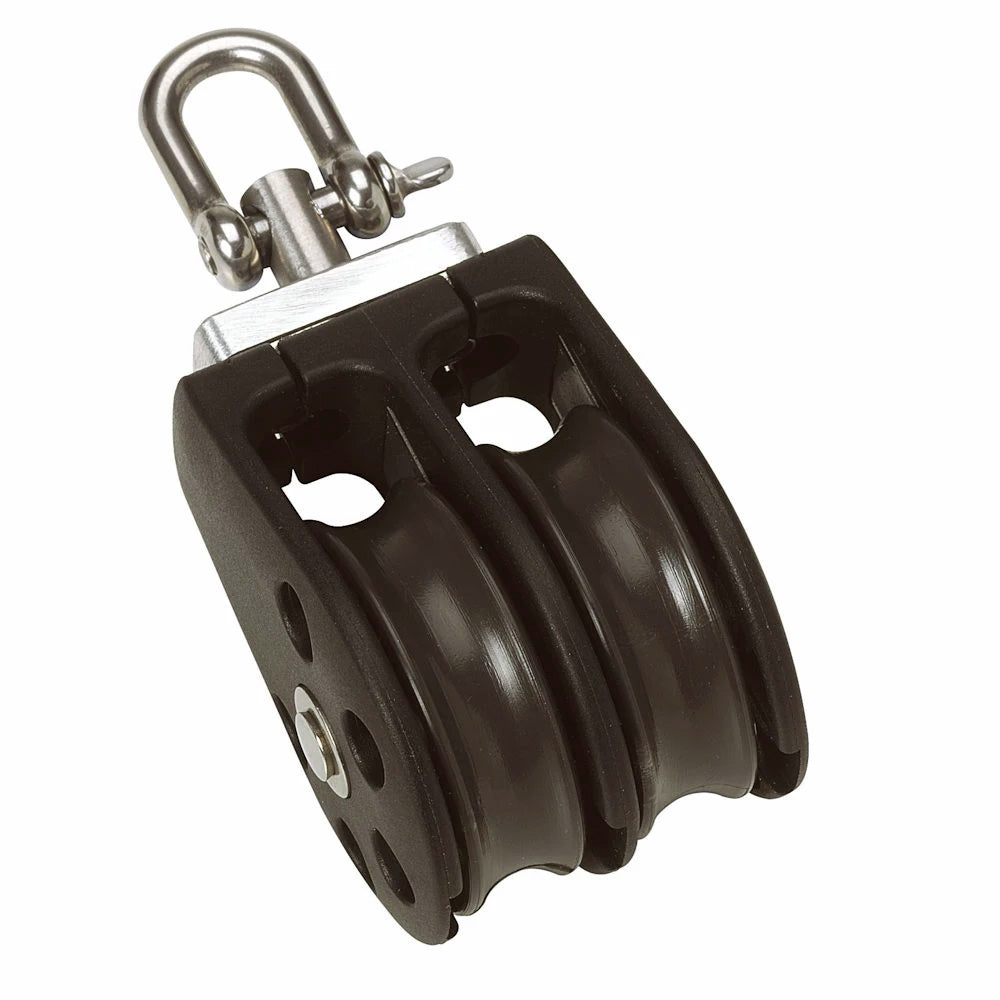

Size 2 35mm Plain Bearing Pulley Block Double with Swivel
The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.
Suitable for up to 8mm (5/16") rope.
Specifications:
- Weight: 87g
- Dimensions: 83 × 39 × 38 mm
- Size: 2 (35MM)
- Block Type: Fixed Eye
- No. of Sheaves: Double
- Bearing Type: Plain
- Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
- Max rope diameter: 8mm (5/16")
- SWL: 370kg (815lbs)
- Break load: 740kg (1630lbs)
- Max rolling load (ball bearing blocks): 260kg (573lbs)
Quick Guide (pdf)
