Wichard Eye Bolt - M10 x 150mm - Length 100mm [6495W]

Name: Wichard Eye Bolt - M10 x 150mm - Length 100mm [6495W]
Brand: Wichard Marine
SKU: IM-97682
Price: 77.67 USD
Availability: InStock

$77.67 $91.38

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

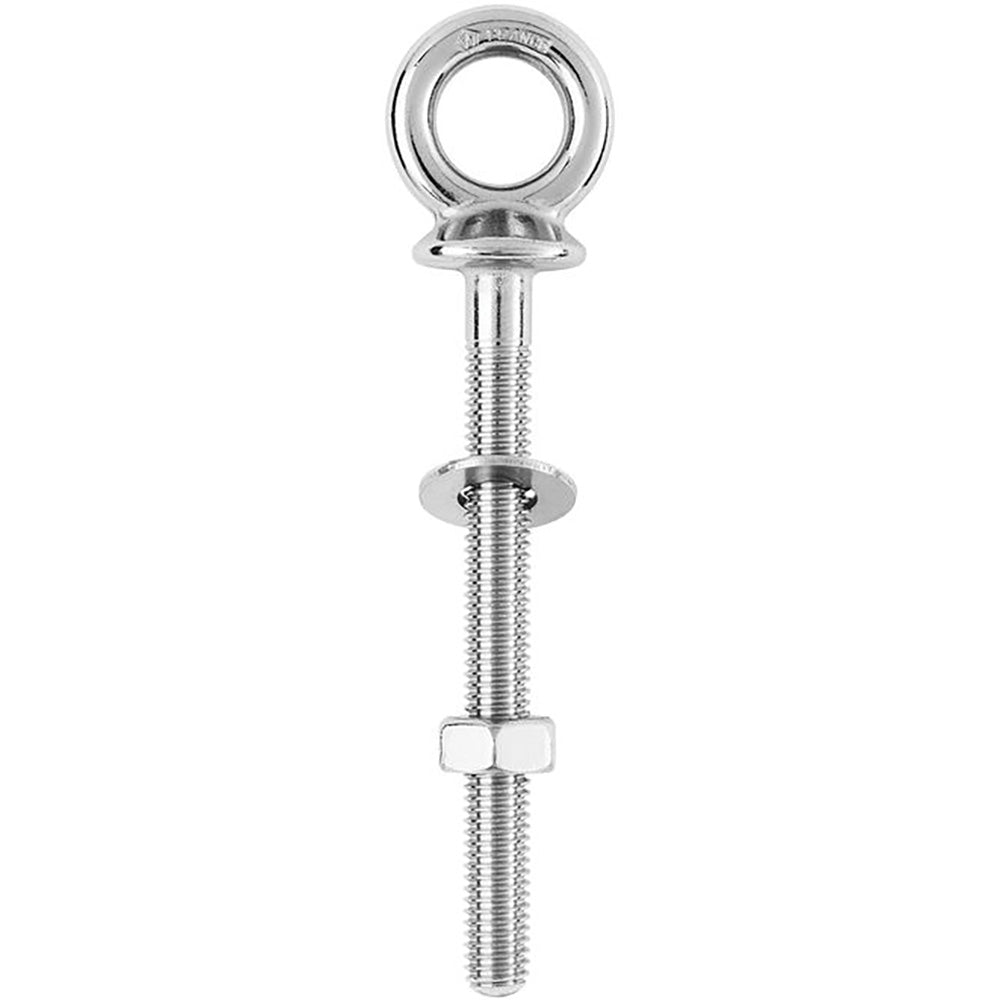

Eye Bolt - M10 x 150mm - Length 100mm

Features:

A complete range of single piece forged products for fastenings applications
Outstanding working and breaking loads
Available in different sizes
Max tightening torque: 36 Nm

Applications:

Various fastening applications
Towing application
Waterskiing lines attachment

Specifications:

Materials: 316L stainless steel grade
Working load: (lb) 3520 / (kg) 1600
Breaking load: (lb) 5950 / (kg) 2700
Weight: (lb) 0.216 / (g) 98

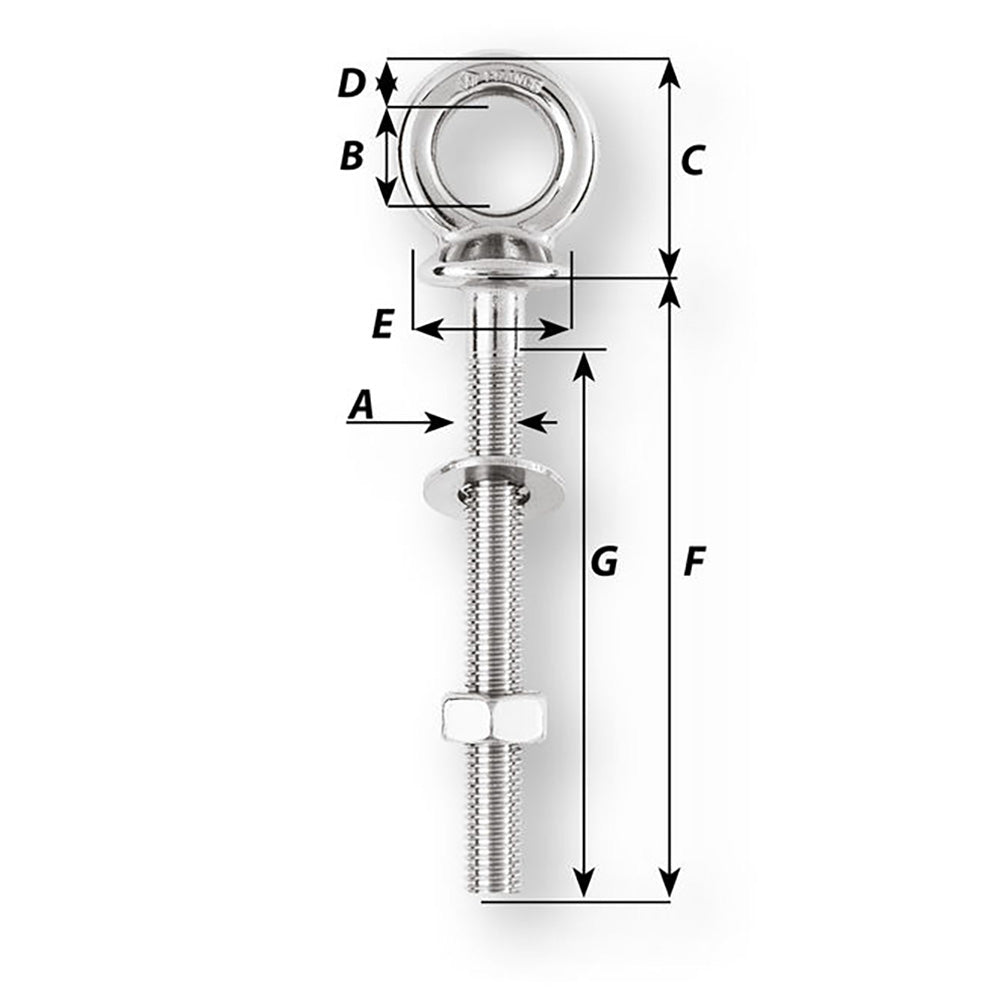

Dimensions:

A: (mm) M10 x 150
B: (inch) 5/8" / (mm) 16
C: (inch) 1 27/64" / (mm) 36
D: (inch) 9/32" / (mm) 7
E: (inch) 63/64" / (mm) 25
F: (inch) 3 15/16" / (mm) 100
G: (inch) 3 15/32" / (mm) 88

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
