Albin Group DC Driven Circulation Pump w/Brushless Motor - BL30CM 12V [13-01-001]
Albin Group DC Driven Circulation Pump w/Brushless Motor - BL30CM 12V [13-01-001] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Albin Group DC Driven Circulation Pump w/Brushless Motor - BL30CM 1...
Albin Group DC Driven Circulation Pump w/Brushless Motor - BL30CM 12V [13-01-001] is backordered and will ship as soon as it is back in stock.
Description
Description

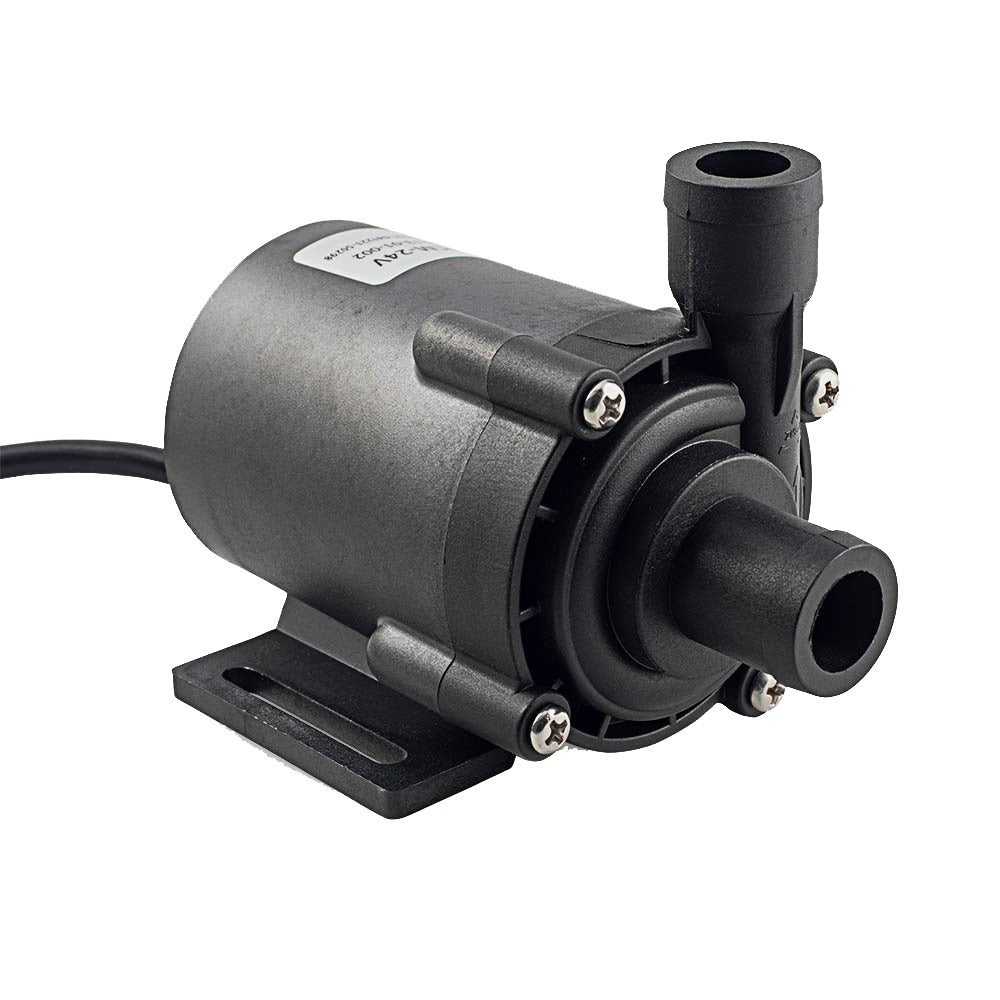

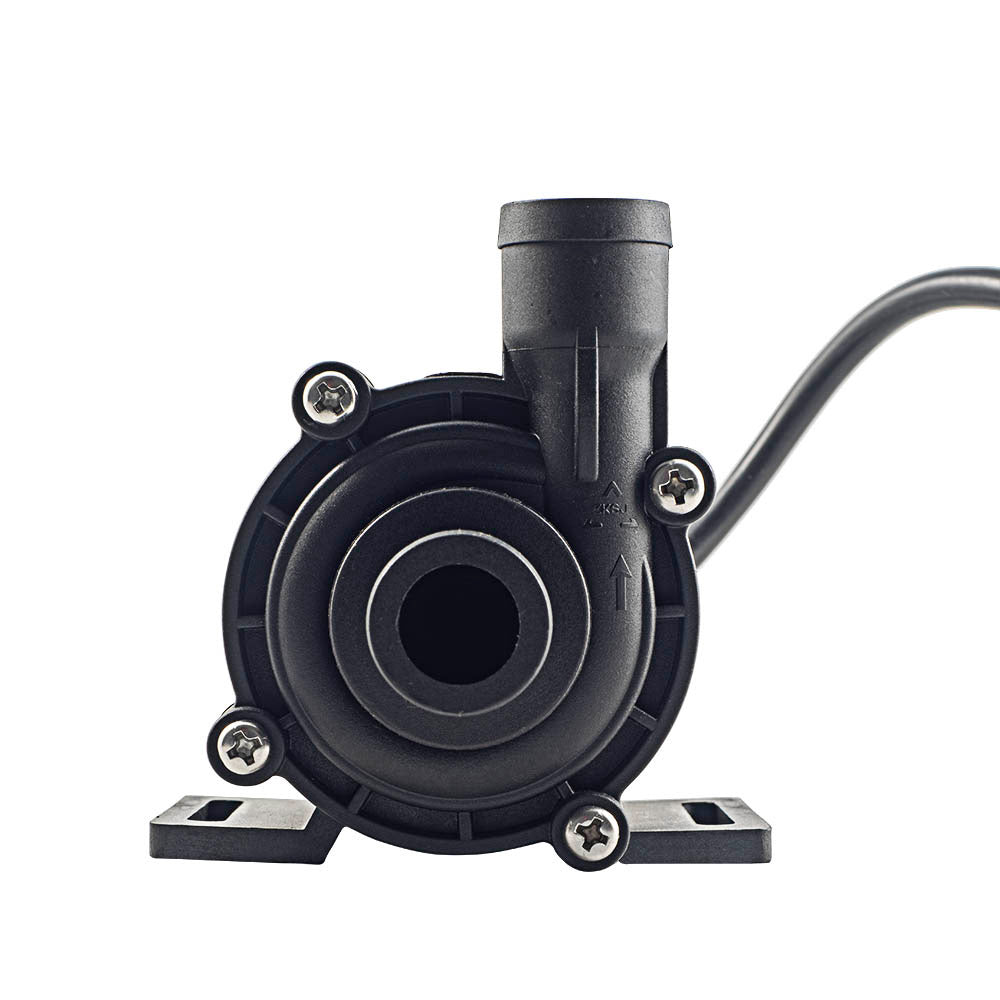

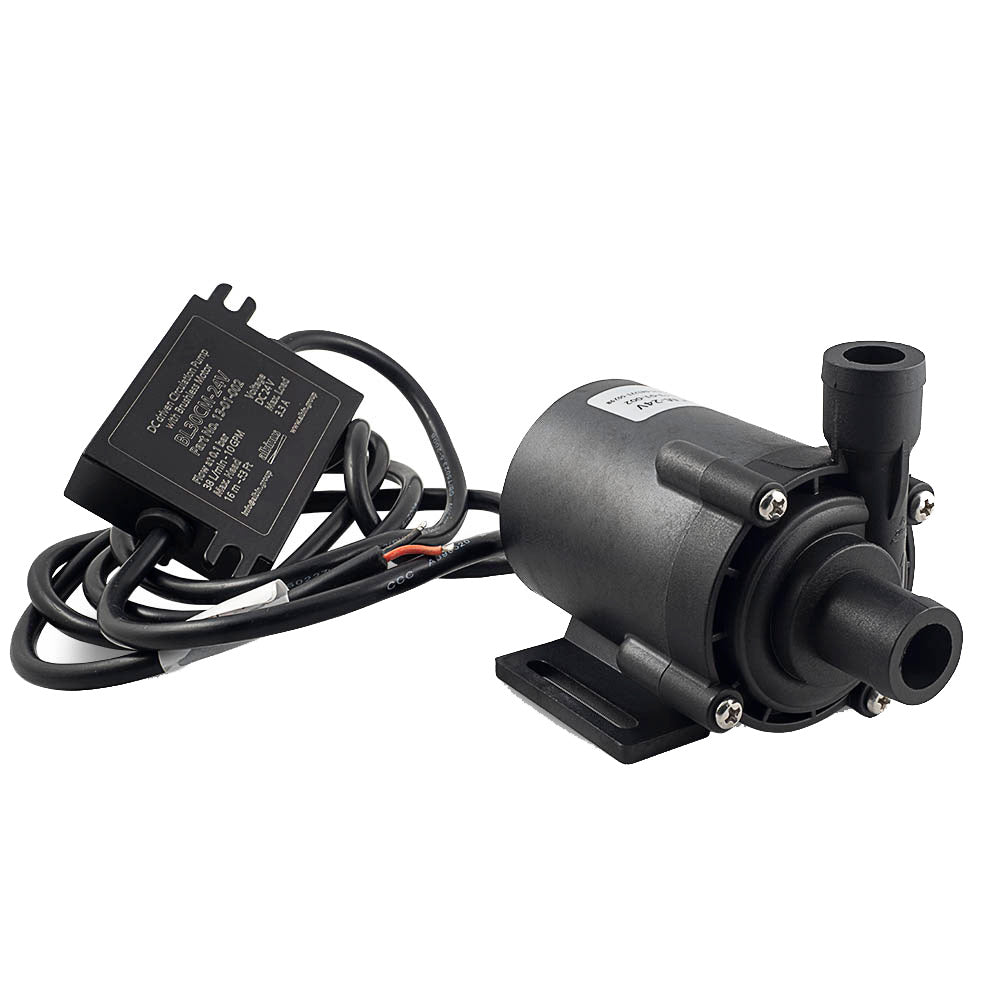

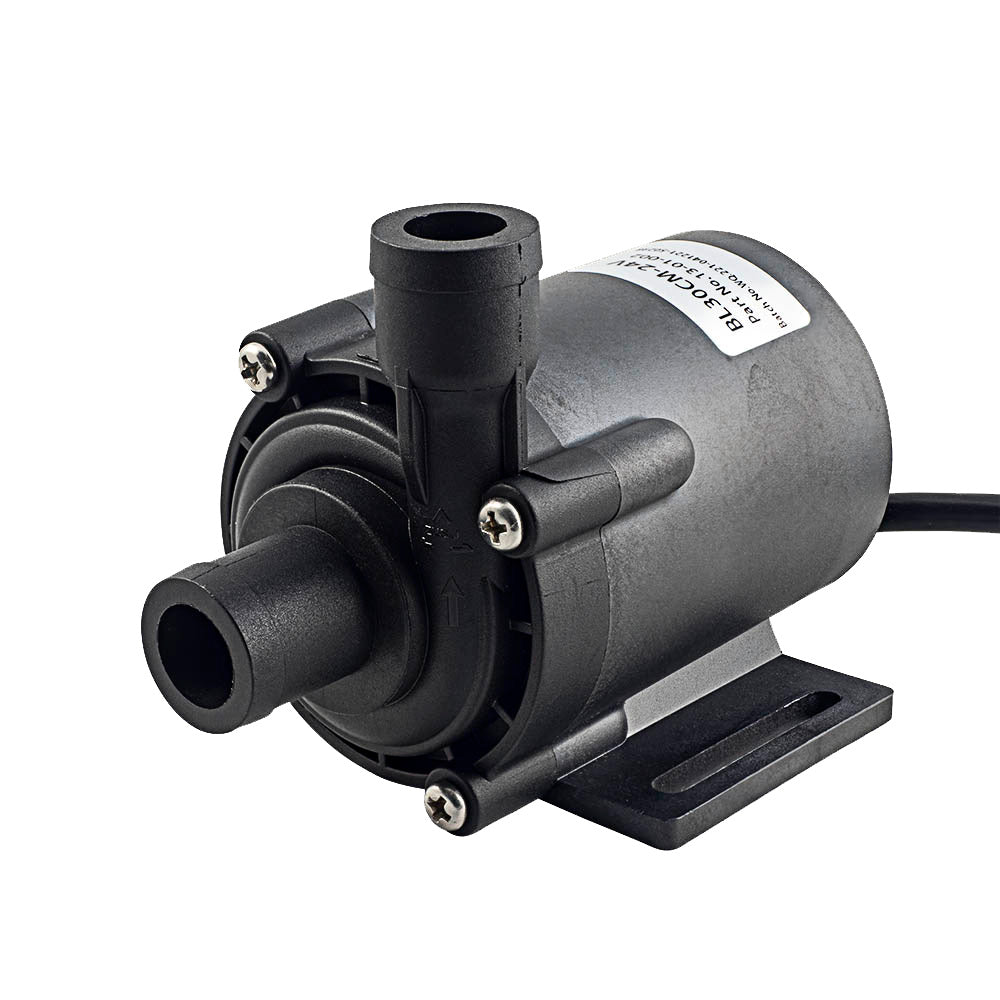

DC Driven Circulation Pump with Brushless Motor - BL30CM 12V
This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.
Features:
- Motor brush-less magnetic isolated design
- For continuous duty
- Life span: 20,000 hours
- Materials of pump housing: ABS, PES/SPS/PA66
- Motor IP classification: IP 68
- Noise class: 35dB
- The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C
Specifications:
- Port size: (inch) 3/4" / (mm) 20
- Weight: 0.48 kg
- Capacity at 0.1 bar: 32 l/min
- Capacity at 0.25 bar: 28 l/min
- Max load: 4.5A
- Max power consumption: 55W
*Includes pump and motor
Specifications:
- Type: Pumps/Drives
- Box Dimensions: 5"H x 5"W x 6"L WT: 1.6 lbs
- UPC: 7340176606907
