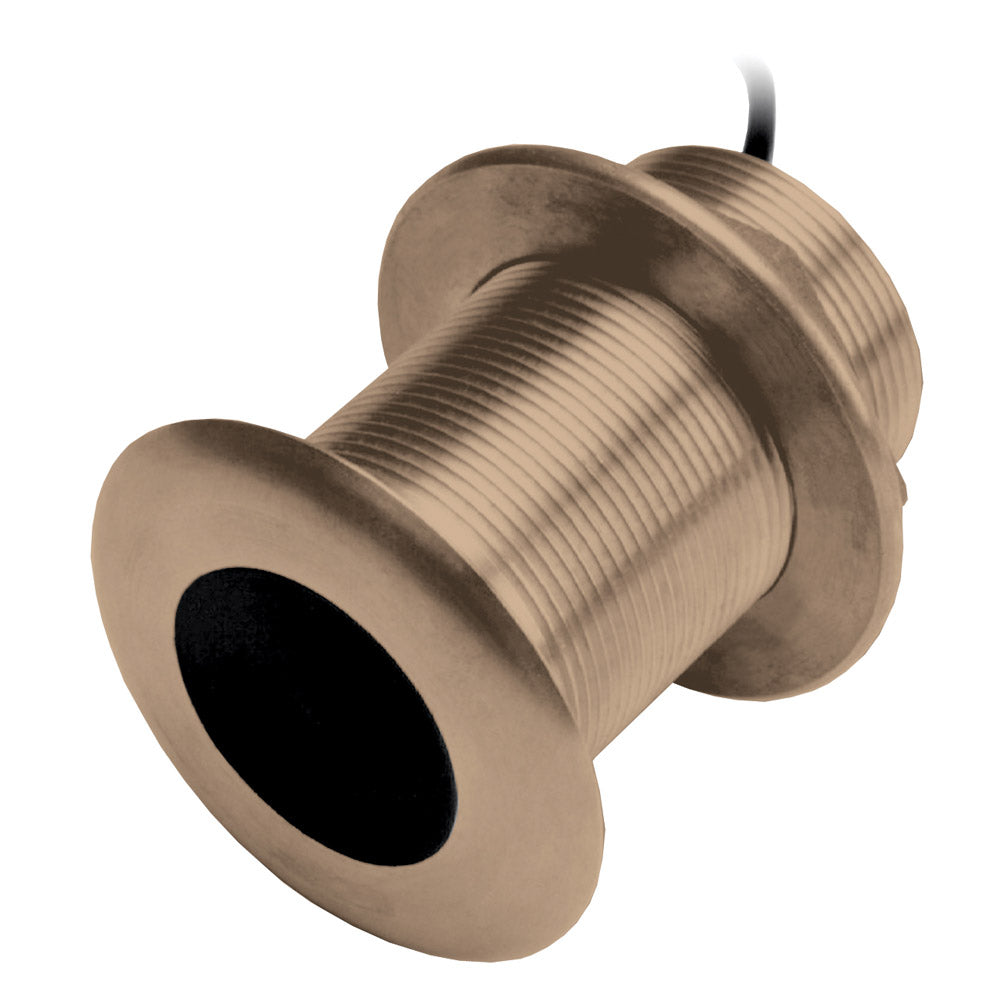

Garmin B75M Bronze 20 Degree Thru-Hull Transducer - 600W, 8-Pin [010-11636-22]
Garmin B75M Bronze 20 Degree Thru-Hull Transducer - 600W, 8-Pin [010-11636-22] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Garmin B75M Bronze 20 Degree Thru-Hull Transducer - 600W, 8-Pin [01...
Garmin B75M Bronze 20 Degree Thru-Hull Transducer - 600W, 8-Pin [010-11636-22] is backordered and will ship as soon as it is back in stock.
Description
Description
Airmar B75M
w/20° Tilt
600W
Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block.
This broadband transducer is designed to allow both traditional and Spread Spectrum scanning when used with a compatible sonar like the GSD 26. It features a bronze, thru-hull mount design with 20 degree tilt and provides both depth and temperature data to your Garmin Marine Network
Max Depth - 800'
Suppoarted Deadrise/Transom Angles - 16-24° Deadrise
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 8
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: Medium
- Cable Length (Feet): 39'
- Box Dimensions: 5"H x 8"W x 12"L WT: 6.15 lbs
- UPC: 753759972035
Owner's Manual (pdf)
Brochure (pdf)
