Veratron Pyrometer Sensor - 100-900C/250-1650F [N03-320-264]

Name: Veratron Pyrometer Sensor - 100-900C/250-1650F [N03-320-264]
Brand: Veratron
SKU: IM-83063
Price: 298.53 USD
Availability: InStock

$298.53 $331.70

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

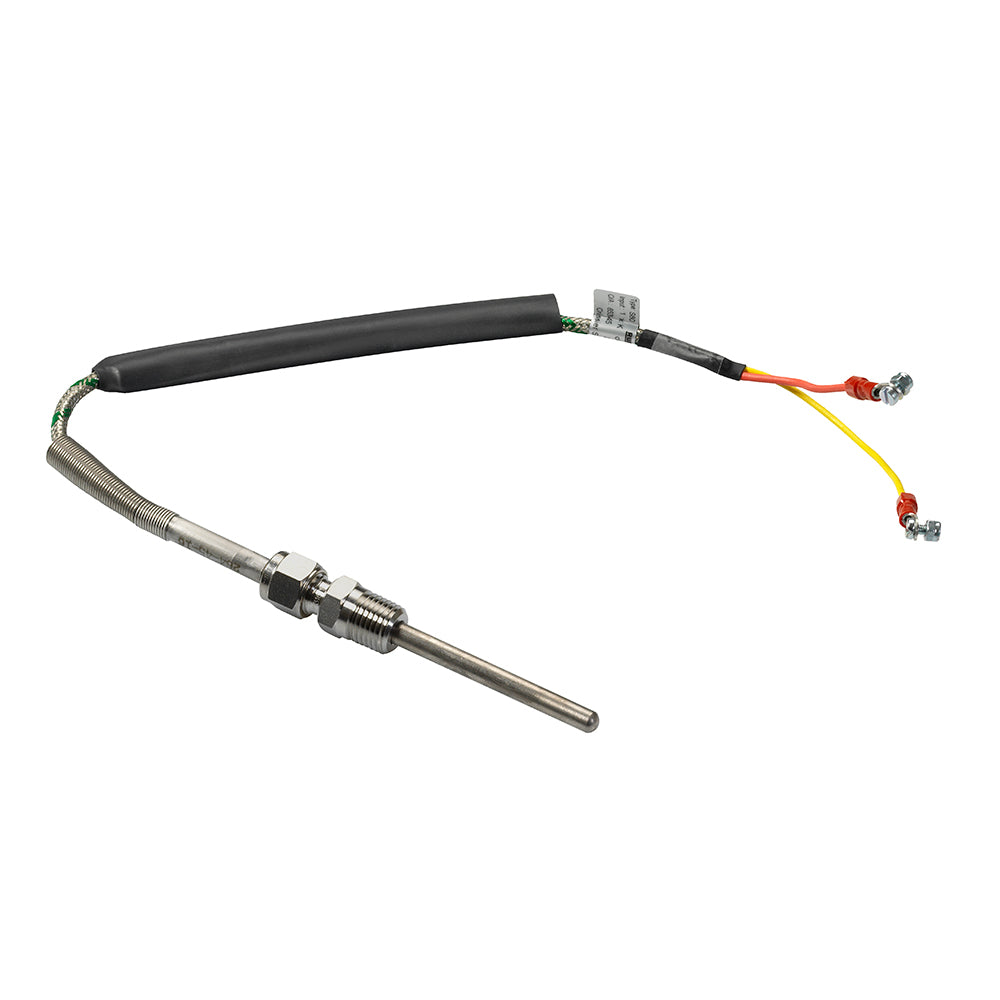

Pyrometer Sensor - 100-900°C/250-1650°F

Pyrometer sensor used in conjunction with LinkUp Gateway Module.

Features:

Plug-and-Play installation and configuration
NMEA 2000® certified

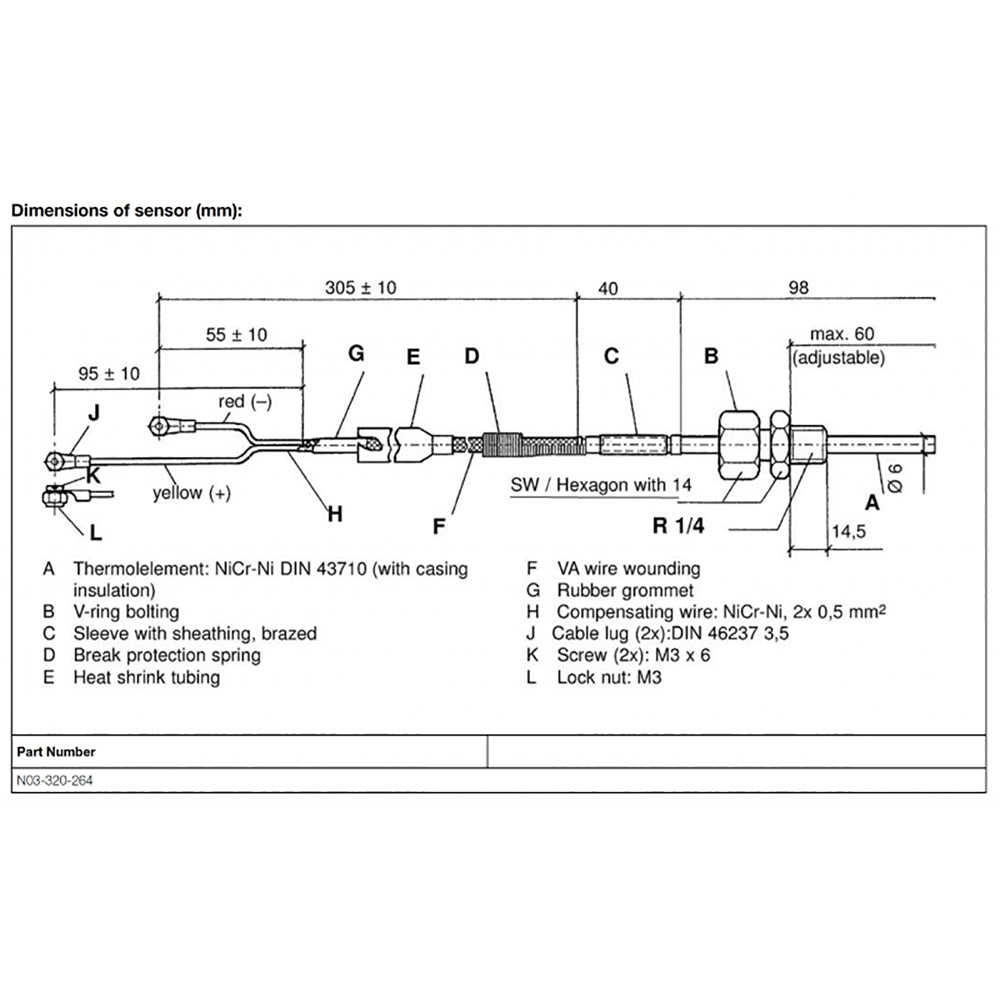

Technical Specifications:

Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
Input Signal - LIN bus
Operating Voltage - 6 - 24 VDC
Pyrometer Sensor
Thermocoupler Element
Measurement Range - 100-900°C/250-1650°F
Communication - Analog
Signal Output - 0 - 37 MV TC
Sensor Connector - Ring Tongue
Thread - R 1/4" Male
Warning Contact - None
Connector Type - Kabeloog
Sender element length + thread (L) - Adjustable maximal 60 mm
Sensor diameter - 6 mm
Torque - 20 Nm

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

Diameter (mm): N/A
Diameter (Inches): N/A
Color: Black
Box Dimensions: 1"H x 4"W x 16"L WT: 0.15 lbs
