Shadow-Caster LED Lighting  |  SKU: IM-98042

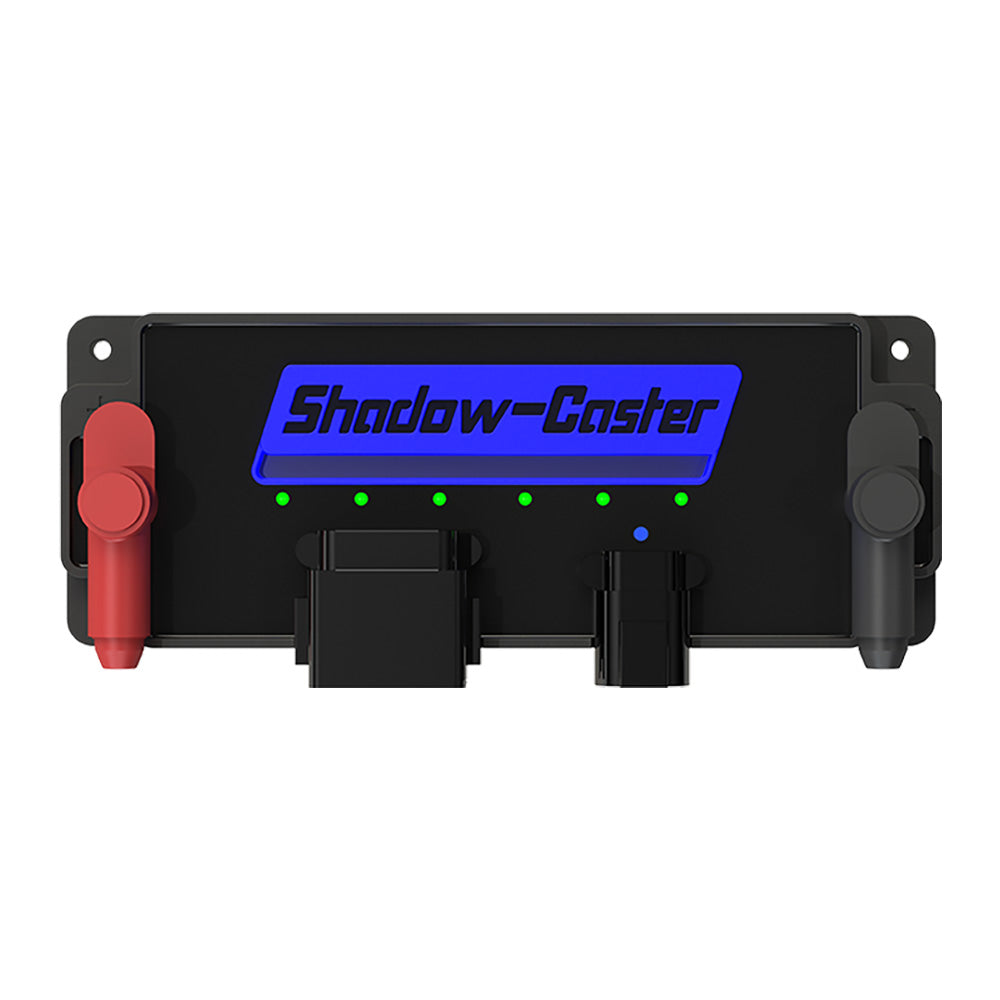

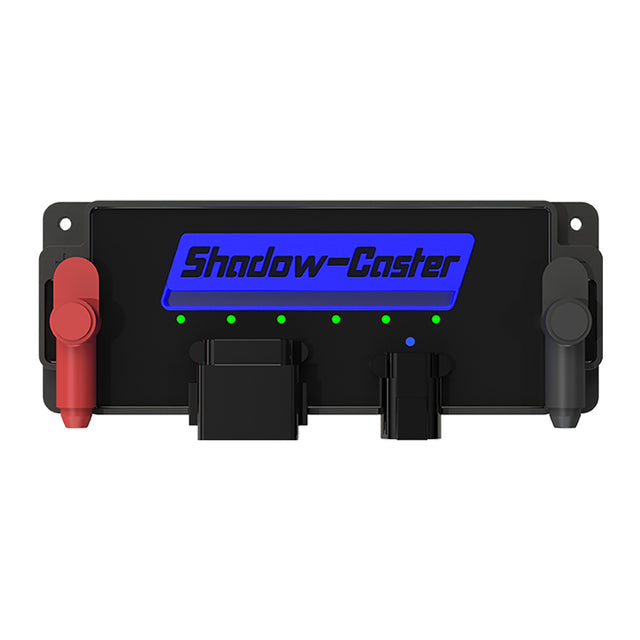

Shadow-Caster 6-Channel Digital Switch Module Shadow-NET Control f/Single Color 3rd Party Lighting [SCM-PWR6]

Sale price $364.60 Regular price $382.99


Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

6-Channel Digital Switch Module Shadow-NET™ Control for Single Color & 3rd Party Lighting

The 6-channel digital switch module offers a convenient way to integrate any standard light with the Shadow-Caster™ MFD interface. Simply plug in the module to the Shadow-NET™ system and switch support will automatically populate on the screen.

Each module provides 6 channels of support, that will handle up to 10 amps per channel with digital fault protection. There is also a manual switch input for overriding the interface.

Features:

  • 6 independent digital switches
  • Control other brands of lights with the Shadow-Caster™ MFD interface and phone app
  • Digital over current fault protection
  • Manual switch override
  • Green/red LEDs provide the status of each channel
  • Full integration with Shadow-NET™ interface
  • The blue backlight indicates the power state

Specifications:

  • 12/24V operation
  • 10A each channel
  • 5/16” power lugs
  • IP67 Deutsch connections
  • Power lug protection boots

What's Included?

  • 6 channel digital power switch
  • Mounting hardware 4 #8 PH x.5”
  • Pre-wired mating connectors
  • 3 year standard warranty

Quick Guide (pdf)
