Lumitec Pico C4-MAX Expansion Module [101873]

Name: Lumitec Pico C4-MAX Expansion Module [101873]
Brand: Lumitec
SKU: IM-103207
Price: 285.99 USD
Availability: InStock

$285.99 $301.29

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

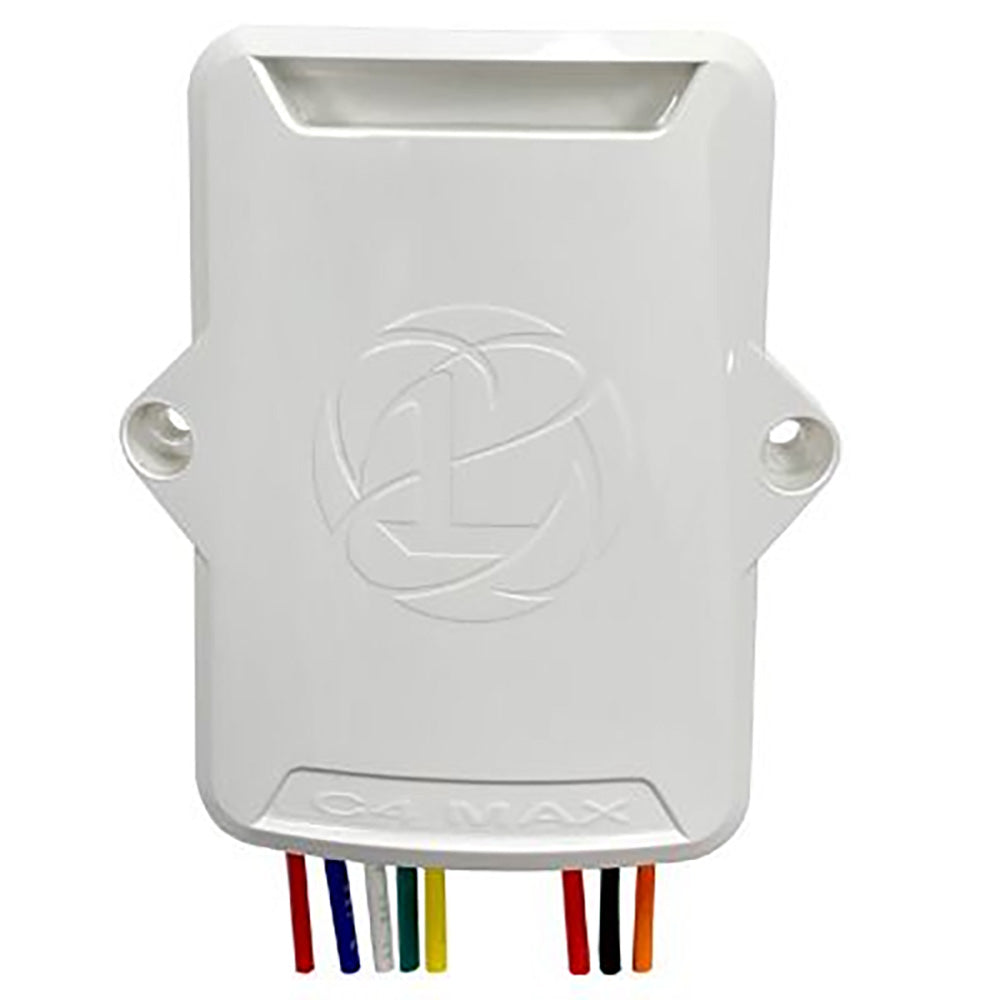

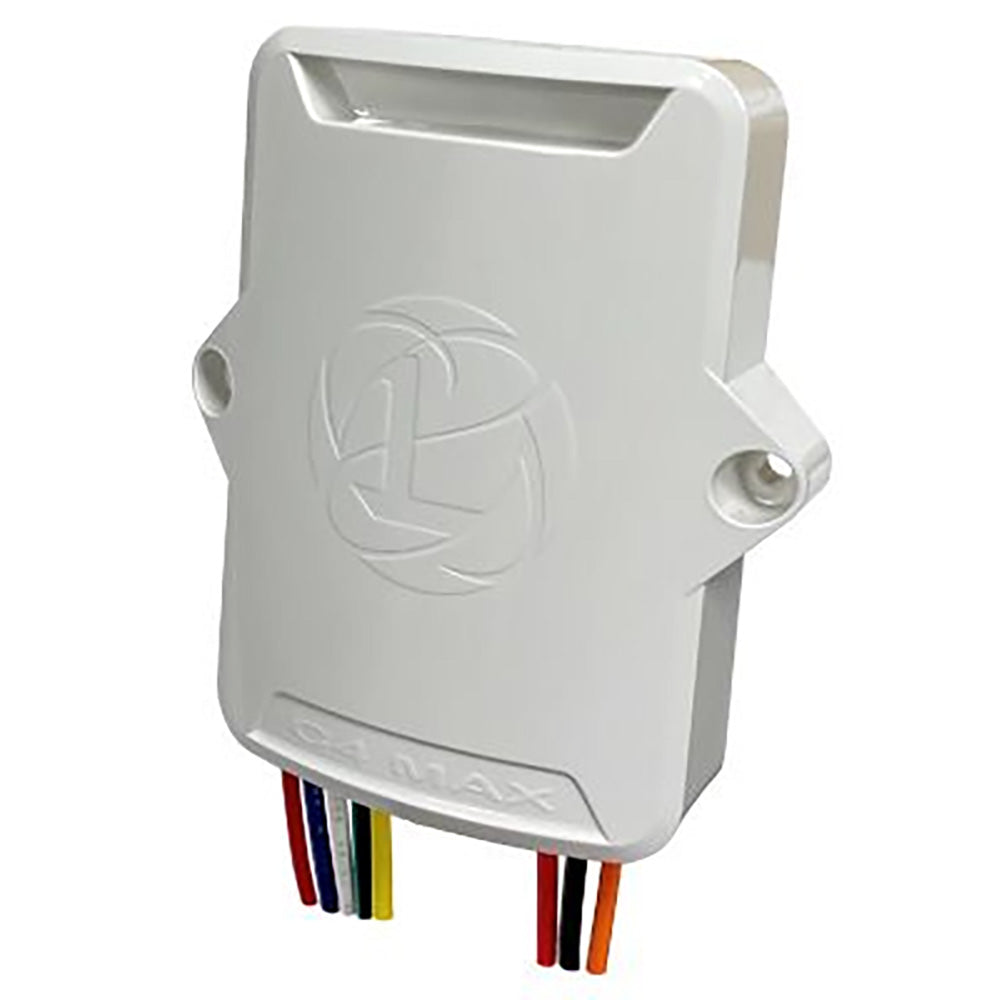

Pico C4-MAX Expansion Module

Pico Expansion Modules extend the power and reach of the Poco Digital Lighting Control system making it possible to control other manufacturers’ luminaires, lighting accessories, and devices that do not have the sophisticated PLI technology built-in.

The Pico C4 Module provides Poco or TTP control of third-party RGB or RGBW lighting accessories. This means that everything from strip lighting to lighted speakers can be controlled through the Poco system. On vessels not equipped with the Poco system, the Pico C4-MAX provides control of color and intensity through any normal on/off switch, using Lumitec’s field-proven TTP protocol.

Specifications:

CE Certified: Yes
Depth: 0.88 in (2.23cm)
Finish / Housing: White
Height: 3.5 in (8.89cm)
IP Rating: 67
Max Amp/ch: 10A
Number of Channels: N/A
Op. Temp F/C: -31/35 to + 131/55
PLI Enabled: Yes
Sub Category: Pico Expansion Modules
Timed Toggled Protocol (TTP): Yes
UL Certified: No
Voltage: 10vDC-30vDC
Width: 3.1 in (7.87cm)

Quick Guide (pdf)
Owner's Manual (pdf)
