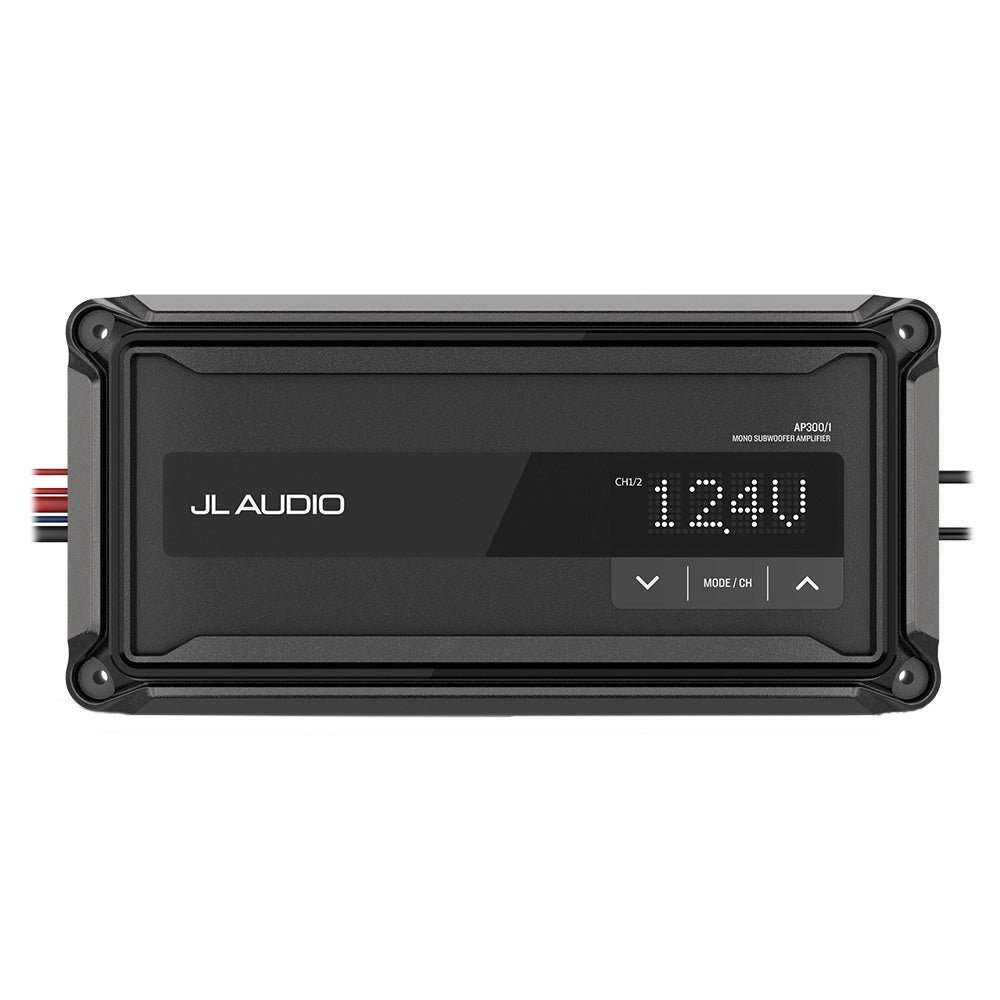

JL Audio AP Monoblock Compact Marine Amplifier - AP300/1 [010-03428-00]
JL Audio AP Monoblock Compact Marine Amplifier - AP300/1 [010-03428-00] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
JL Audio AP Monoblock Compact Marine Amplifier - AP300/1 [010-03428...
JL Audio AP Monoblock Compact Marine Amplifier - AP300/1 [010-03428-00] is backordered and will ship as soon as it is back in stock.
Description
Description
AP Monoblock Compact Marine Amplifier - AP300/1
POWER THE MOMENT
With these tough and ultracompact amplifiers, you can enjoy every note from every part of your boat.
- Efficient Class-D design
- Built-in LCD for manual control
- Ignition protected and IP-67 Rated (excluding cables)
- Easy tune feature
300-Watt Monoblock Amplifier
This monoblock amplifier is specifically designed to power a subwoofer.
Easy Tune Feature
For additional optimization, pair with a Fusion® stereo with built-in DSP, and download the Fusion® Audio app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.
Class-D Amplifier Technology
The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.
Rugged Design
These amplifiers offer superior levels of durability and are built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.
Specifications
General
- Channels: 1
- Physical Height: 1.86"
- Physical Width: 10.43"
- Physical Depth: 4.9"
- Operating Voltage: 9-16 VDC
- Water and Dust Rating: IP67
Audio
- Amplifier Class: Class D
- RMS Power @ 4 OHM: 200w x 1
- RMS Power @ 2 OHM: 350w x 1
- Frequency Response: 10hz - 50Hz
- Input Sensitivity: Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
- Input Impedance: 11 kΩ (High) 20 kΩ (Low)
- Current Consumption (idle): 700-750mA
- Fuse Rating: 35A
- Recommended Fuse Types: AFS, AGU, or MaxiFuse™
- Protection Circuits: Input under/over voltage, Over temperature, Output short circuit
Signal Processing
- High-Pass/Low-Pass Full Range Filter: Yes (user selectable)
Specifications:
- Bridgeable: No
- Channels - Available: 1
- Waterproof Rating: Waterproof
- Watts: 300w
- Box Dimensions: 2"H x 7"W x 14"L WT: 5.5 lbs
- UPC: 729218924518
