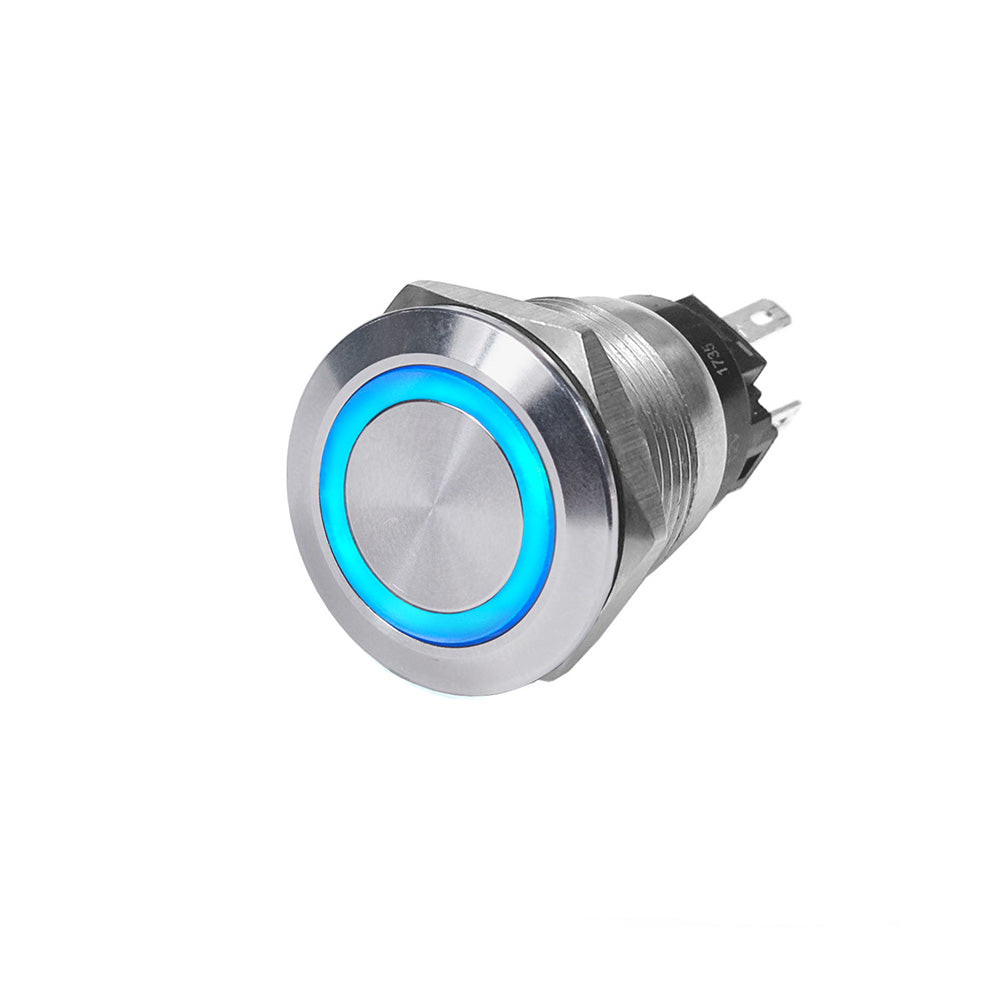

Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A [4160]
Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A [4160] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A [4160]
Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A [4160] is backordered and will ship as soon as it is back in stock.
Description
Description
4160 SS Push Button Switch - Off-On - Blue - 10A
- 10A continuous
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
Specifications
- Action: OFF-ON
- Amperage: 10A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum LED Operating Current: 20mA
- Minimum Operating Temperature: -10° C
- Maximum Operating Temperature: 70° C
- Minimum Storage Temperature: -55° C
- Maximum Storage Temperature: 85° C
- Illumination: Independent – Separate contacts for LED power
- Mounting Hole: 19mm
- Switching Cycles: 18,000
- Termination: 5 – 0.110inch Quick Connect terminals
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Color: Stainless
- Action: On/Off
- Box Dimensions: 2"H x 3"W x 5"L WT: 0.05 lbs
- UPC: 632085041601
