Egis MRBF Dual Output Terminal Block - 30-300 Amp [3602]
Egis MRBF Dual Output Terminal Block - 30-300 Amp [3602] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Egis MRBF Dual Output Terminal Block - 30-300 Amp [3602]
Egis MRBF Dual Output Terminal Block - 30-300 Amp [3602] is backordered and will ship as soon as it is back in stock.
Description
Description

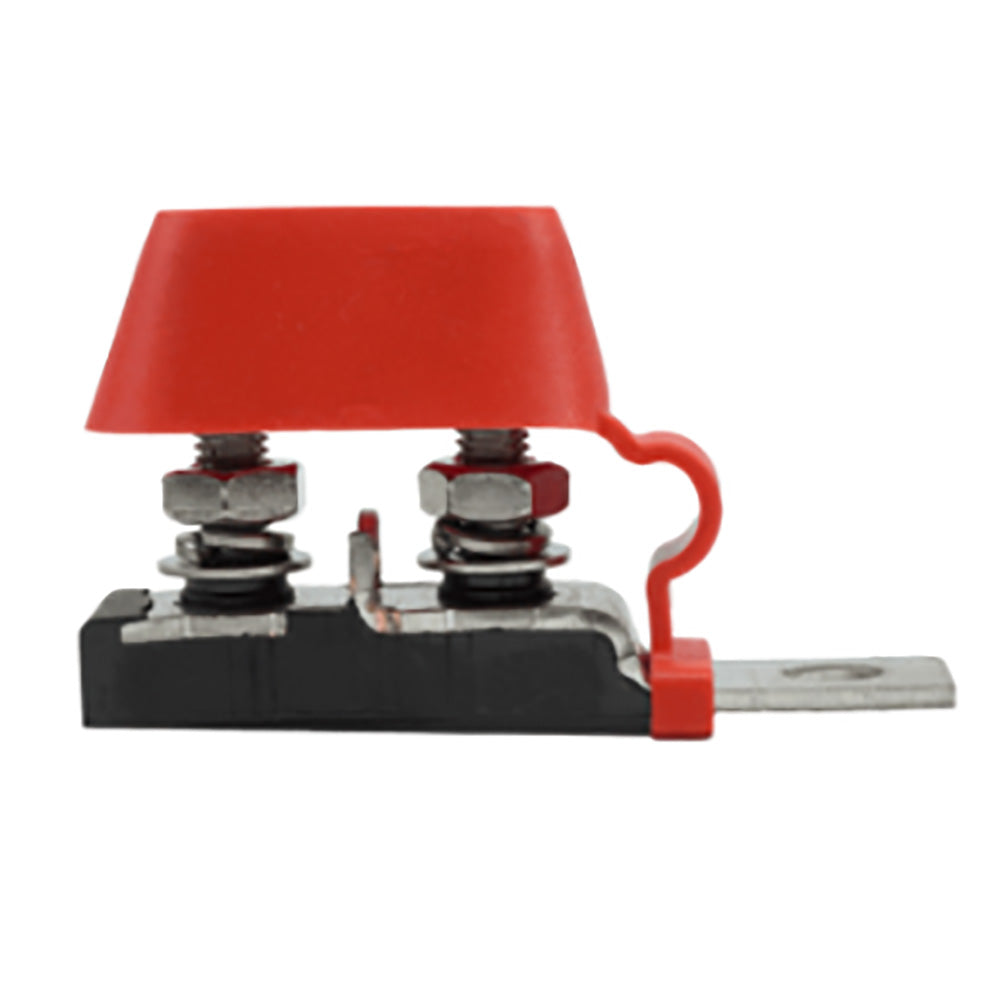

MRBF Dual Output Terminal Block - 30-300 Amp
Features:
- Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
- Ignition Protected When Used With Egis Mobile Electric MRBF Fuses safe for installation in closed compartments with potential explosive gases. Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
- Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- 58 Vdc Rating: easily supports 12 to 48V nominal applications.
- 4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
- Continuous Current (Amps): 30-300A
- Stud Size: M8 (5/16")
- Mounting Hole Size: M10 (3/8")
- Interrupt Rating @ 48 Vdc (Amps): 5,000
- Interrupt Rating @ 58Vdc (Amps): 2,000
- Ingress Protection: IP66
Specifications:
- Amperage: 30-300
- Fuse Type: Terminal
- Type: Fuse Blocks
- Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs
- UPC: 850053879531
Brochure (pdf)
