![Egis MIDI 5x Fuse Block w/Sealed Cover [3908]](http://inletmarinesupply.com/cdn/shop/files/107422XL.jpg?v=1743628092&width=1500)
Egis MIDI 5x Fuse Block w/Sealed Cover [3908]
Egis MIDI 5x Fuse Block w/Sealed Cover [3908] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Egis MIDI 5x Fuse Block w/Sealed Cover [3908]
Egis MIDI 5x Fuse Block w/Sealed Cover [3908] is backordered and will ship as soon as it is back in stock.
Description
Description

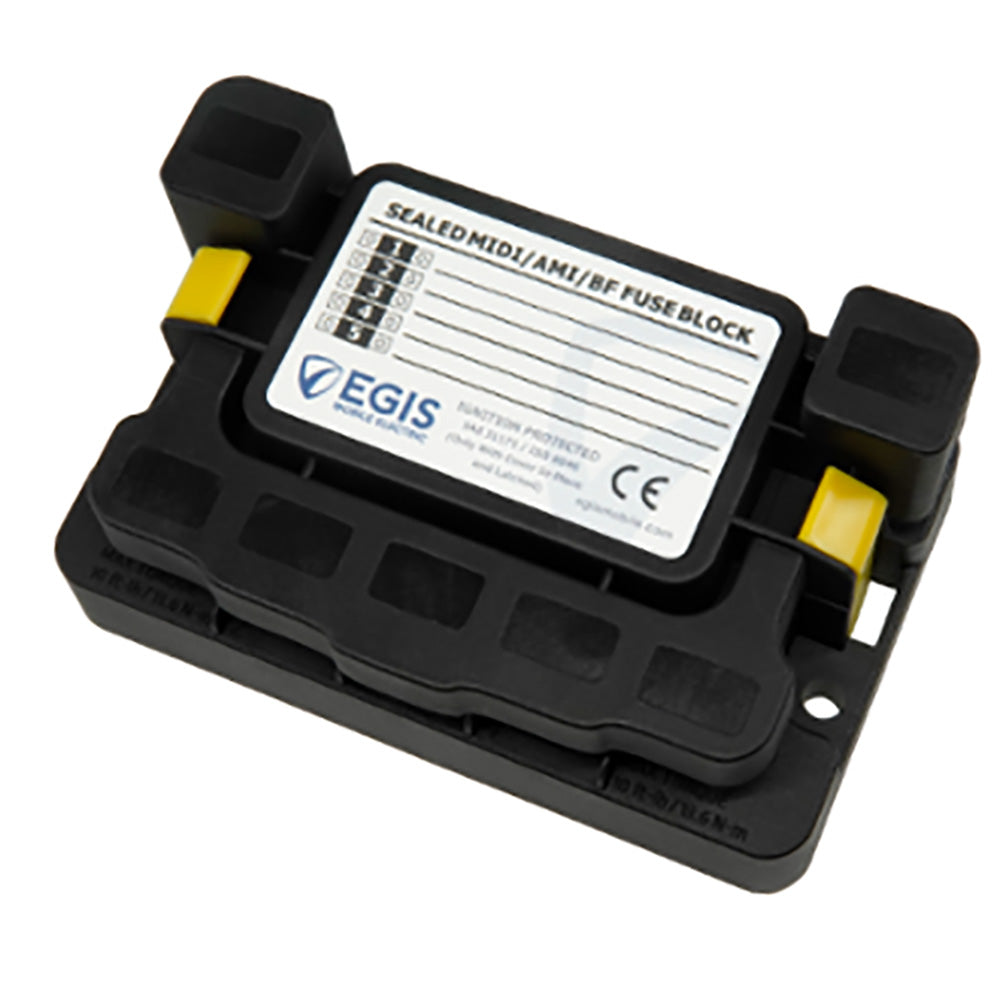

MIDI 5x Fuse Block with Sealed Cover
- Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
- Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
- Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions
Features:
- Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
- Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
- Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.
Specifications:
- Total Continuous Current Amps: 500
- Max MIDI?AMI Fuse Value (Amps): 200
- Ingress Protection Rating: IP67
- Ignition Protected (SEA J1171)? Yes
- Output Stud Size: M6
- Input Stud Size: M8
Specifications:
- Fuse Type: MIDI/AMI
- Type: Fuse Blocks
- Box Dimensions: 3"H x 4"W x 8"L WT: 1.25 lbs
- UPC: 850067590064
Brochure (pdf)
