Blue Sea 7720 MIDI/AMI Safety Fuse Block [7720]

Name: Blue Sea 7720 MIDI/AMI Safety Fuse Block [7720]
Brand: Blue Sea Systems
SKU: IM-40599
Price: 34.99 USD
Availability: InStock

$34.99 $56.99

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

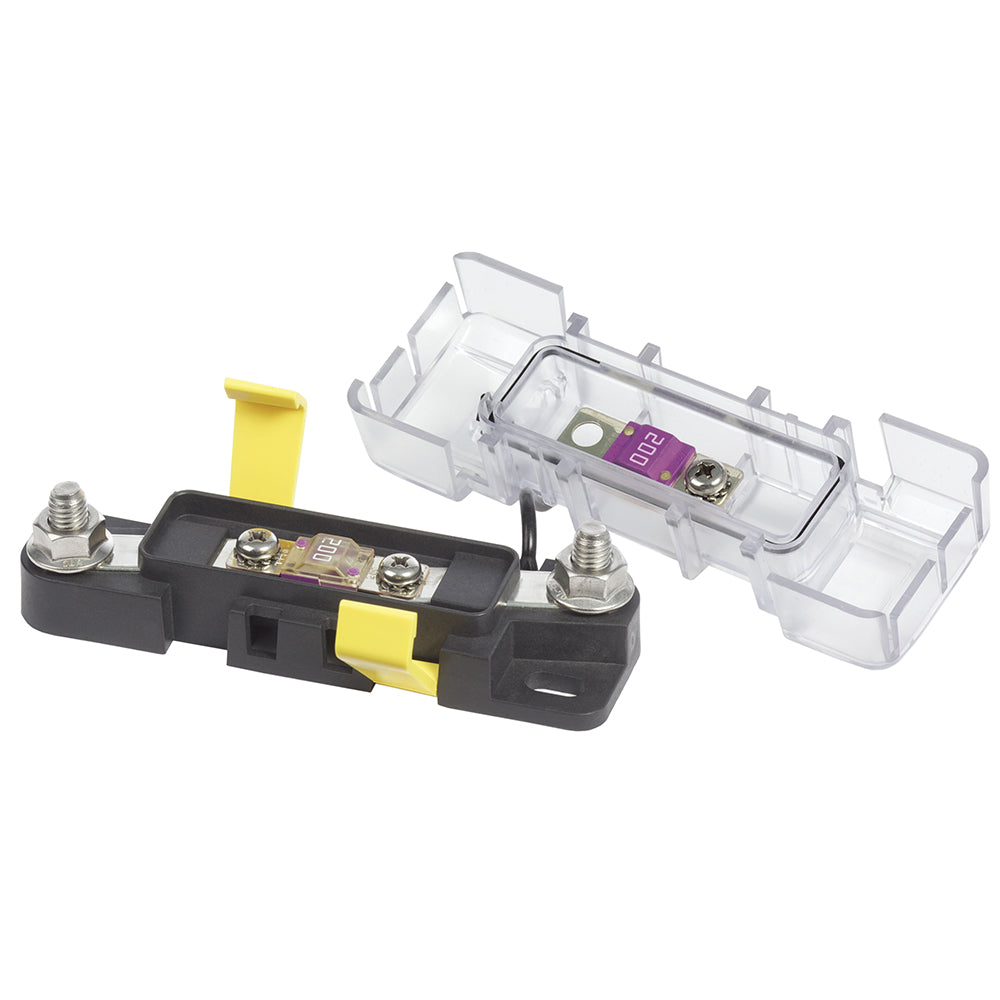

MIDI or AMI Safety Fuse Block

Ignition protected for installation aboard gasoline or diesel powered boats
Sealed cover protects fuses from the harsh marine environment
Insulating cover satisfies ABYC/USCG insulation requirements
Cover breakouts allow wire access in any direction
200A maximum with 2/0 cable
Accepts Blue Sea Systems Square Format standard or custom label
Fuses sold separately
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:
- Fuse Type: MIDI/AMI
- Type: Fuse Blocks
- Box Dimensions: 2"H x 4"W x 8"L WT: 0.49 lbs
- UPC: 632085077204
Brochure (pdf)
