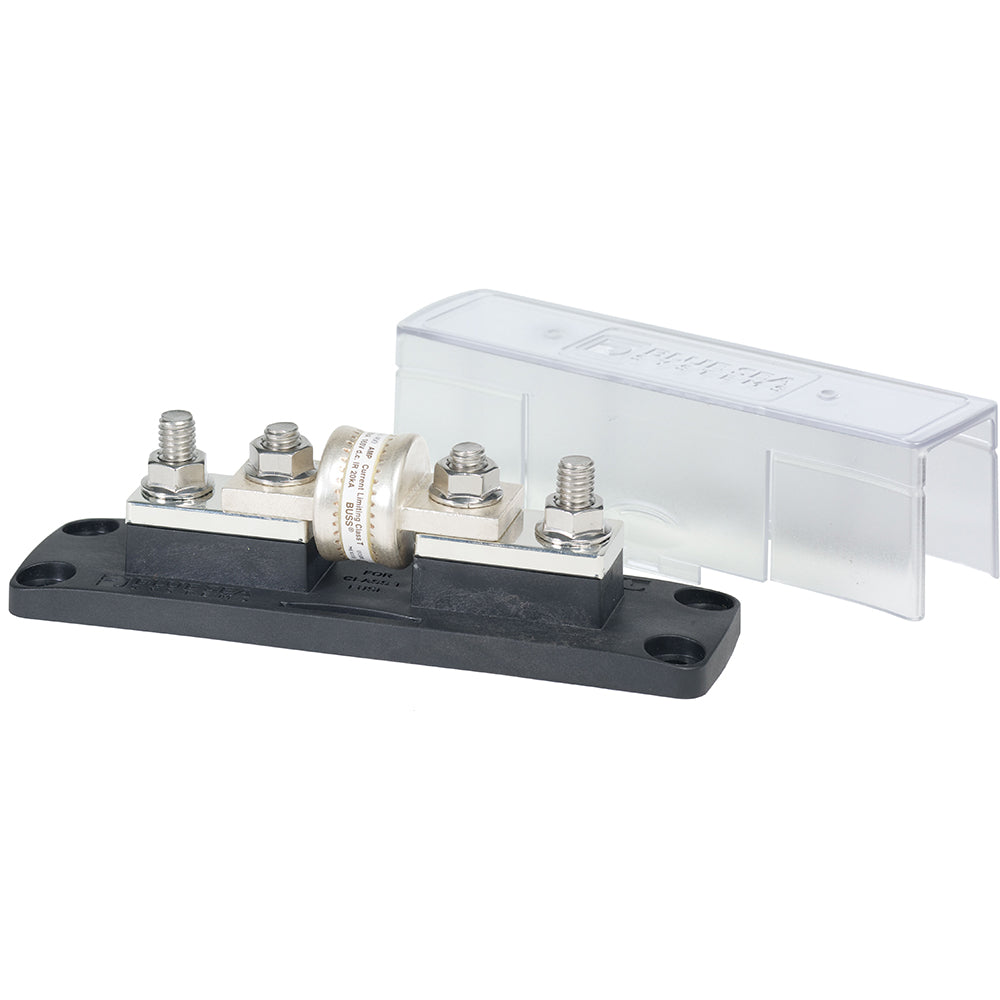

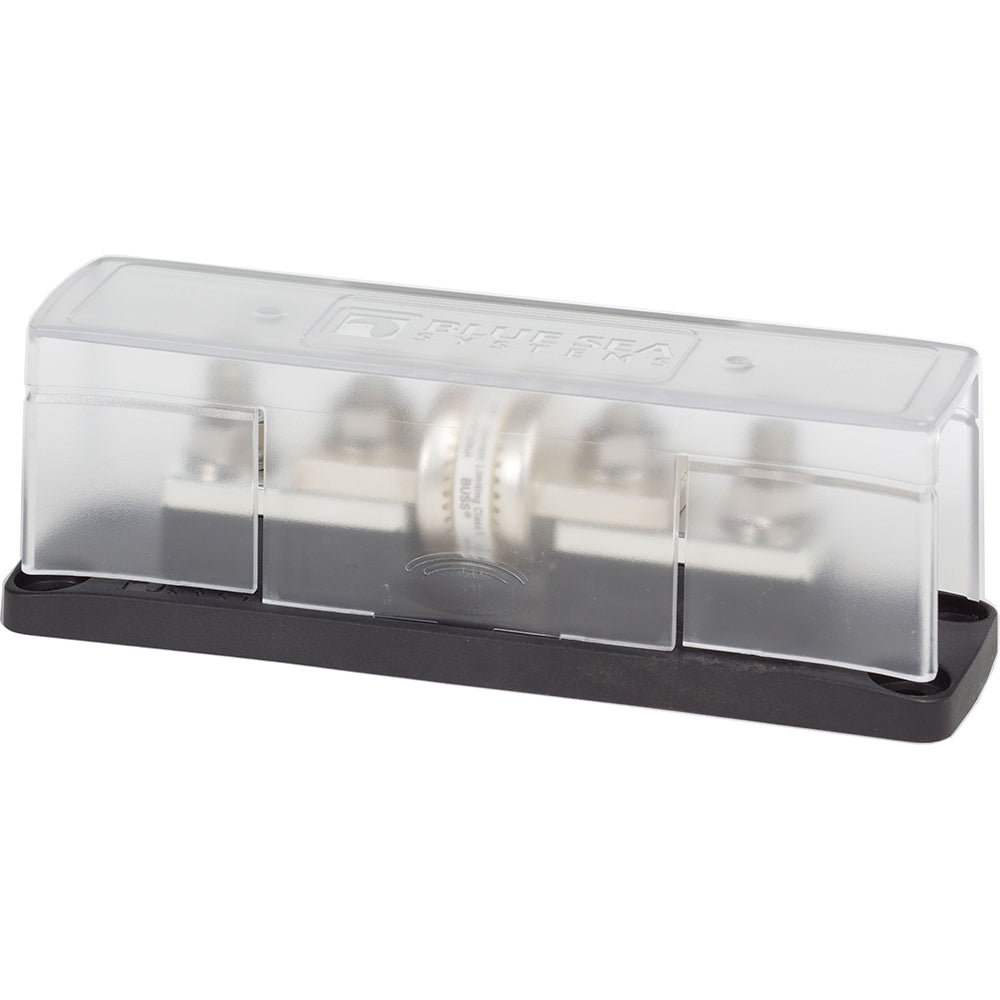

Blue Sea 5502 Fuse Block Class T 225-400 Amp [5502]

Name: Blue Sea 5502 Fuse Block Class T 225-400 Amp [5502]
Brand: Blue Sea Systems
SKU: IM-34899
Price: 47.99 USD
Availability: InStock

$47.99 $77.99

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

Fuse Block Class T 225-400 AMP

Part #: 5502

Features:

Maximum Voltage: 160 Volts DC
Maximum Amperage: 400 Amperes DC
Maximum Torque: 190 in-lb (21.47 Nm) max.
Terminal Stud Size: 3/8"-16 (M10)
Mounting Holes: Accept 1/4" (M6) Screw
Maximum Cable Size 4/0 AWG
Fuse Mounting Blocks: Tin-Plated Copper
Class T Fuses Available: 110-400 Amperes DC

Fuse Sold Sepereatly

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Fuse Type: Class T
Type: Fuse Blocks
Box Dimensions: 3"H x 8"W x 9"L WT: 1.1 lbs
UPC: 632085055028
