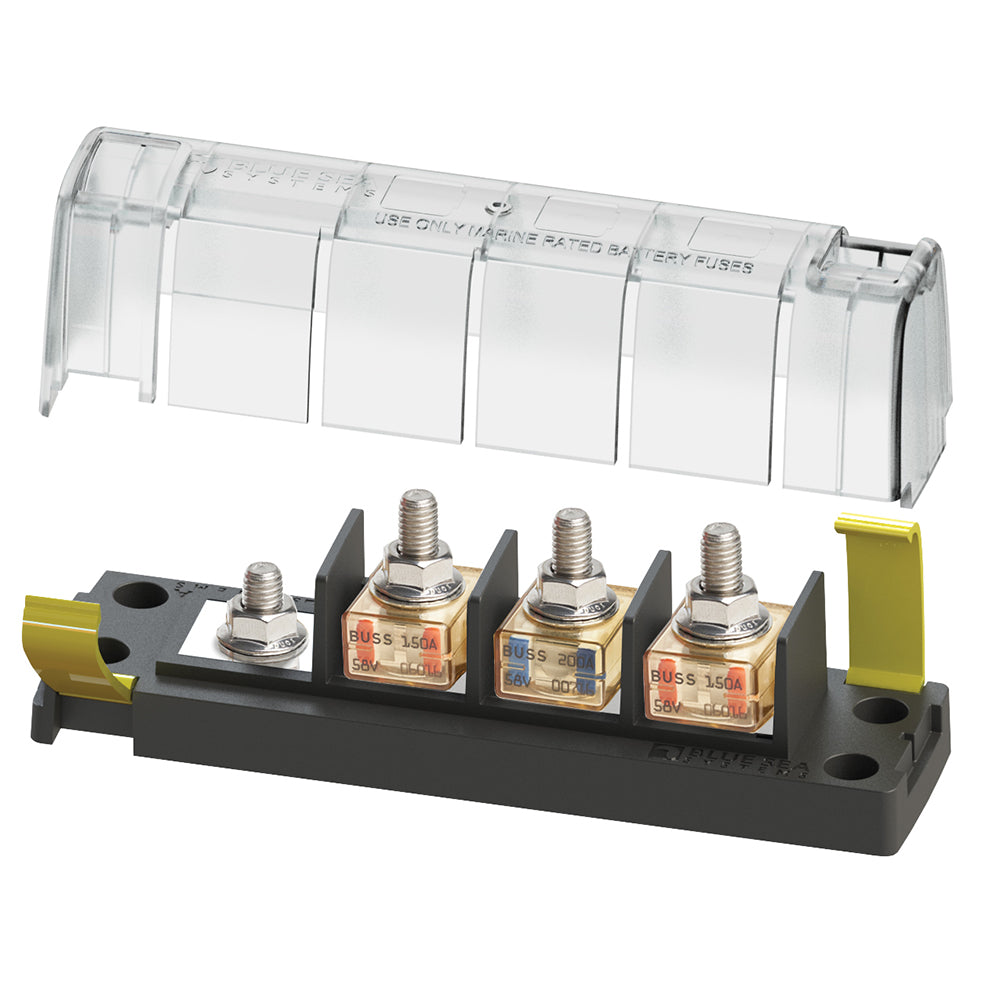

Blue Sea 5196 MRBF Surface Mount 3 Circuit Fuse Block - Common Source [5196]
Blue Sea 5196 MRBF Surface Mount 3 Circuit Fuse Block - Common Source [5196] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea 5196 MRBF Surface Mount 3 Circuit Fuse Block - Common Sour...
Blue Sea 5196 MRBF Surface Mount 3 Circuit Fuse Block - Common Source [5196] is backordered and will ship as soon as it is back in stock.
Description
Description
MRBF Surface Mount 3 Circuit Fuse Block - Common Source
- Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
- The independent source fuse block (5194) is ideal for 3 output battery chargers
- The common source fuse block (5196) provides 3 loads from a single source
- Clip-on cover insulates terminal connections
- Versatile wiring options allow all wires to come out a single side
- Label recesses for easy circuit identification
- One-piece stainless flange nuts ensure safe and secure connections
Specifications
- Ignition Protected: Yes
- Maximum Amperage: 300a per block/240a per circuit
- Maximum Voltage: 58v DC
- Maximum Torque: 100 in-lb
- Terminal Stud Size: M8 (5/16"-18)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Fuse Type: Terminal
- Type: Fuse Blocks
- Box Dimensions: 3"H x 6"W x 11"L WT: 1.25 lbs
- UPC: 632085051969
