Newmar ES-7D Elite DC Panel [ES-7D]
Newmar ES-7D Elite DC Panel [ES-7D] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Newmar ES-7D Elite DC Panel [ES-7D]
Newmar ES-7D Elite DC Panel [ES-7D] is backordered and will ship as soon as it is back in stock.
Description
Description

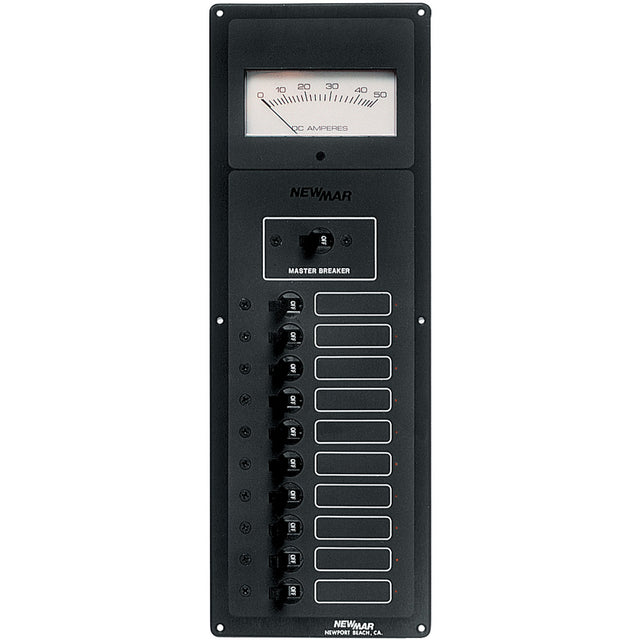

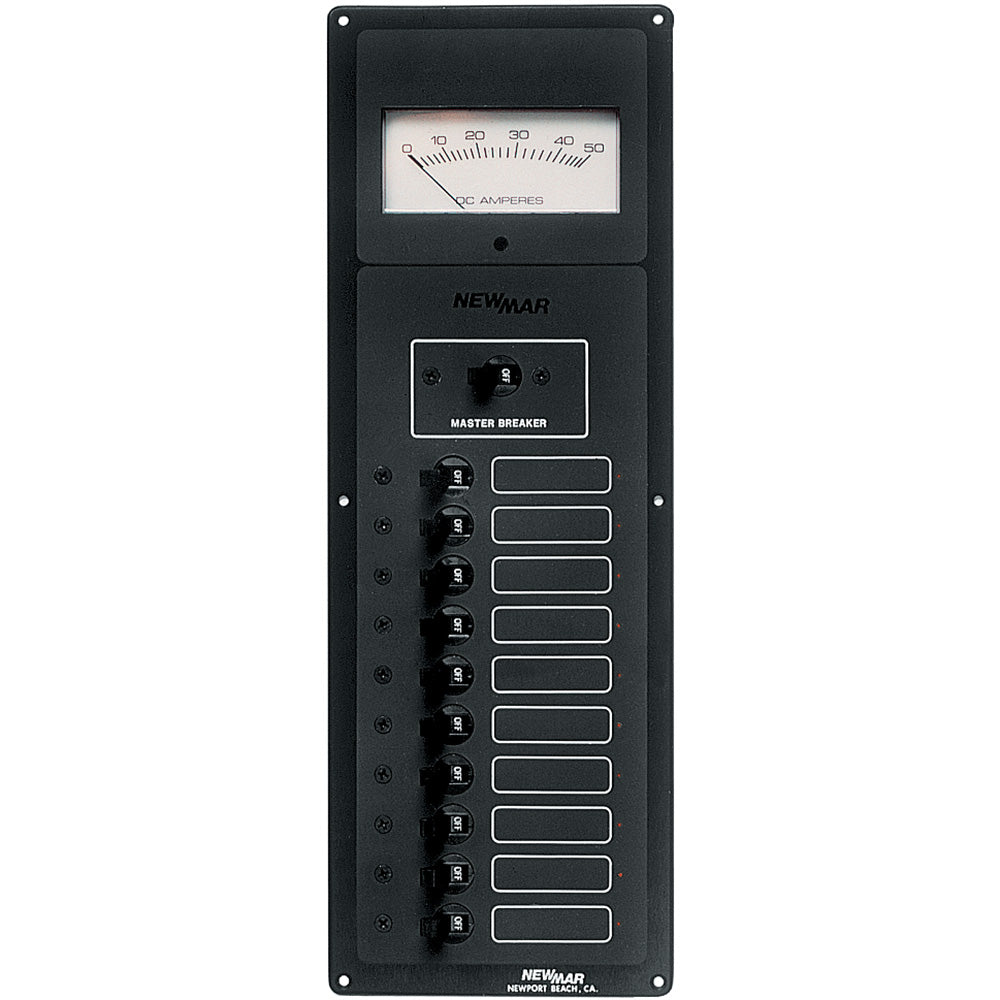

ES-7D Elite DC Panel
This panel is designed for expanding AC or DC circuit capacity on any Elite Series panel, or it may be used as a stand-alone load center.
Features:
- AC (120/240V) or DC (12/24V) master breaker (double pole AC 50 amp* standard, 30 amp optional, or DC 100 single pole amp standard; 50 or 75 amp optional
- 16 branch circuit capacity, 12 installed standards: ES-7A: 2-10A, 5-15A, 5-20A ES-7D: 2-5A, 3-10A, 5-15A, 2-20A
Specifications:
- Size (W x H x D): 5.25 x 15 x 4 inches
- Weight: 7 lbs. (3.2 kg)
Note: 50-amp master is OK for use on 230 VAC line-to-line systems. For 230 VAC line-to-neutral systems, 30 amp is the maximum master breaker value.
