![Blue Sea 8120 - 5 Position 12V Panel w/Dual USB 12V Socket [8120]](http://inletmarinesupply.com/cdn/shop/files/90049XL.jpg?v=1743558025&width=1500)

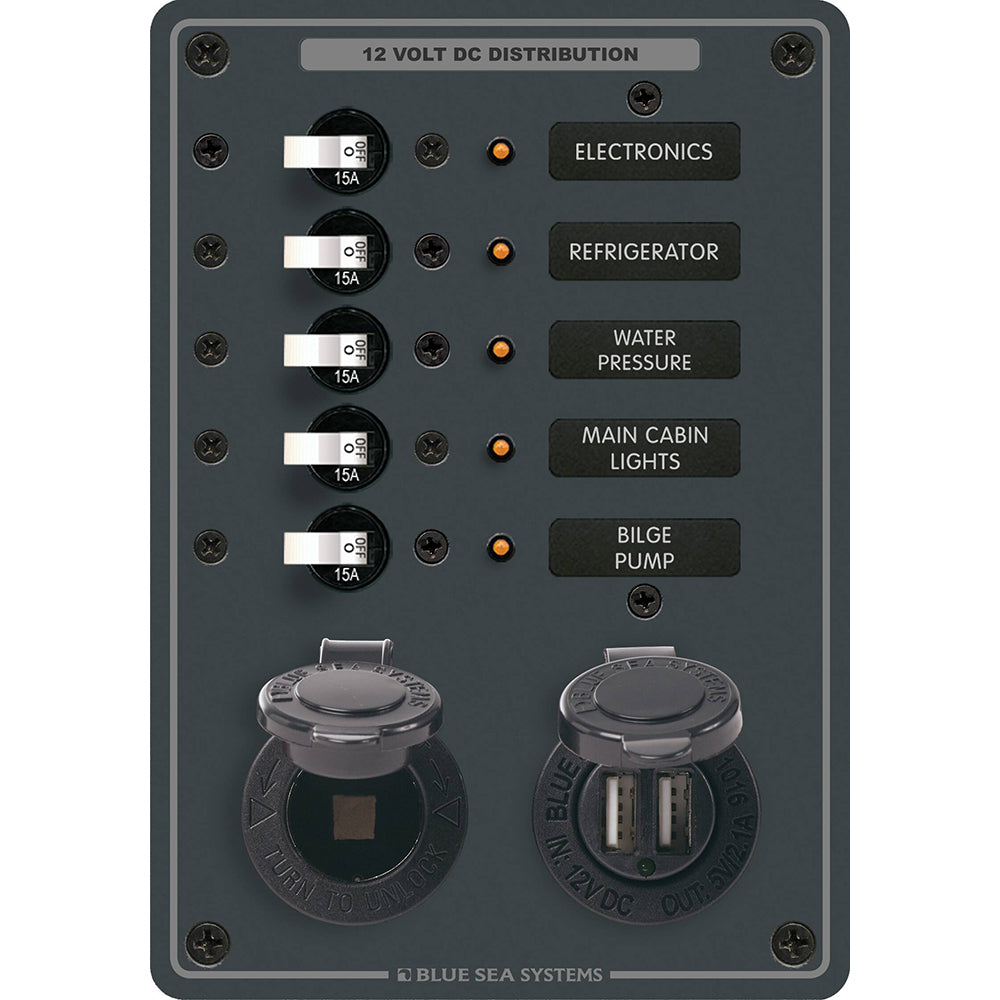

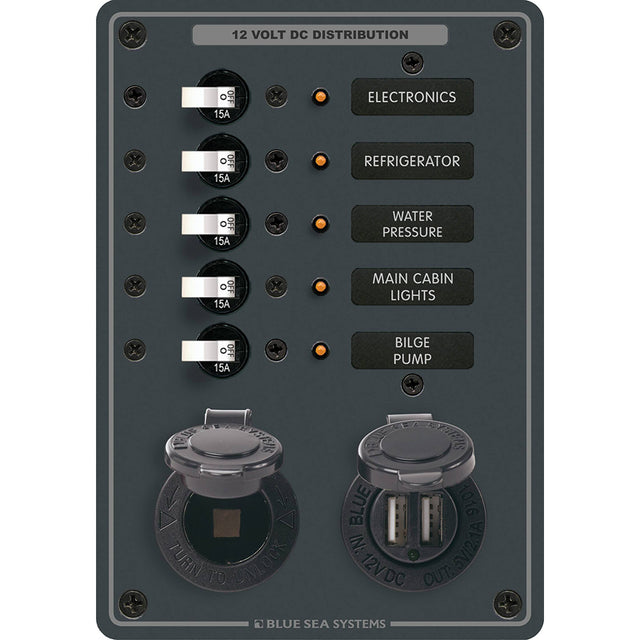

Blue Sea 8120 - 5 Position 12V Panel w/Dual USB 12V Socket [8120]
Blue Sea 8120 - 5 Position 12V Panel w/Dual USB 12V Socket [8120] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea 8120 - 5 Position 12V Panel w/Dual USB 12V Socket [8120]
Blue Sea 8120 - 5 Position 12V Panel w/Dual USB 12V Socket [8120] is backordered and will ship as soon as it is back in stock.
Description
Description
8120 - 5 Position 12V Panel w/Dual USB & 12V Socket
Part of the Blue Sea Systems Battery Management Panels. Distribute current from a high amperage source to lower amperage circuits.
Features:
- ON-indicating LEDs
- Backlit label positions
- All positive, negative, and grounding buses installed, fully pre-wired
Specifications:
- Positions - Five (5)
- Nominal Voltage - 12V DC
- Maximum Amperage - 50A
- Circuit Breaker Type - Magnetic Hydraulic - Trip Free
- USB Output - 12/24V Dual USB
- Socket Output - 12V Dash socket
- Dimensions (H x W x D) - 7.5" x 5.25" x 2.5" (191 x 133 x 64mm)
In the Box:
- 8120 Panel
- Instruction Manual
*Sold as an Individual
Specifications:
- AC/DC: DC
- Max Breaker Quantity: 5
- Voltage: 12
- Box Dimensions: 5"H x 7"W x 12"L WT: 1.95 lbs
- UPC: 632085081201
Owner's Manual (pdf)
